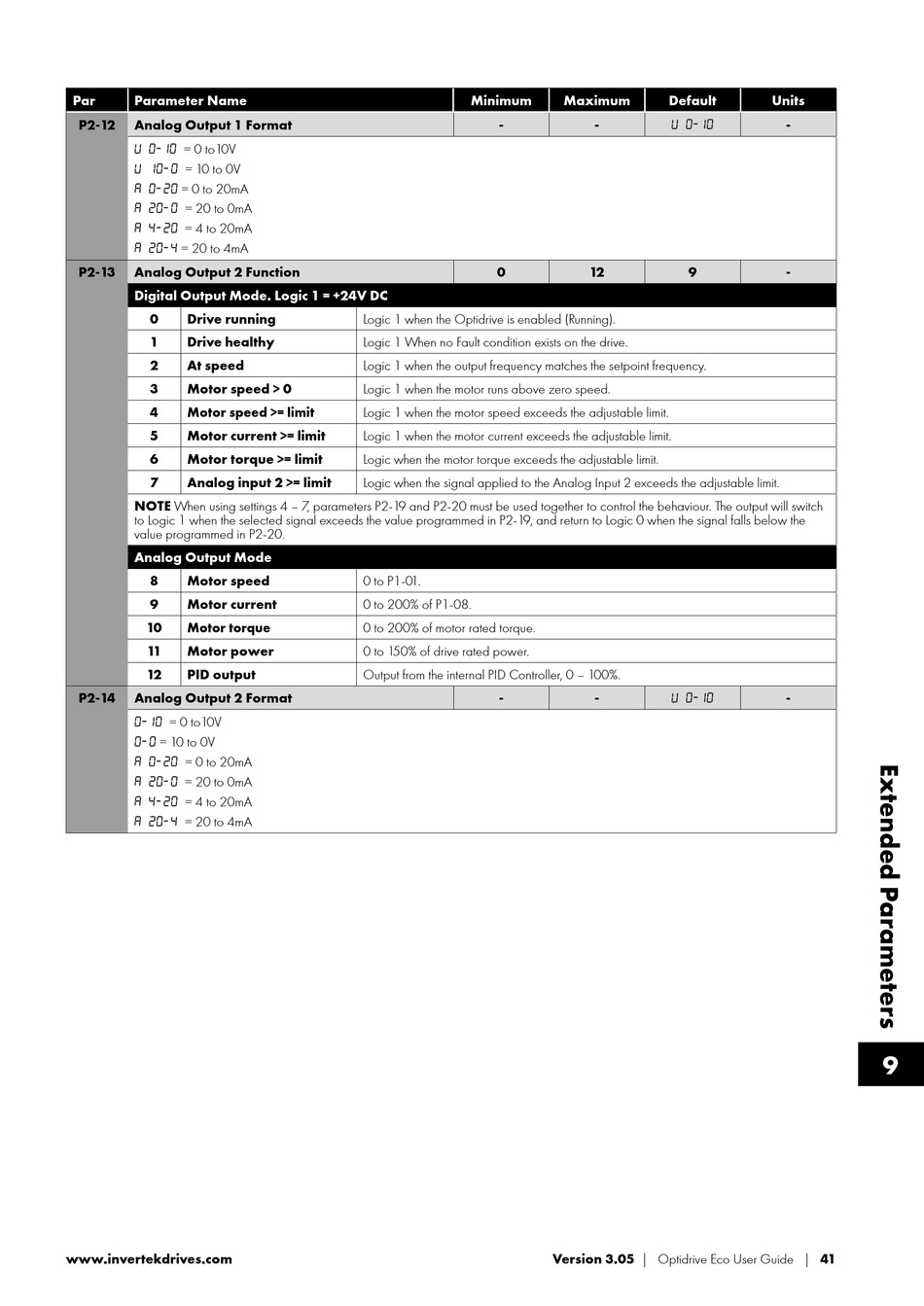

Invertek Drives Eco Optidrive ODV-3-220043-1F12-SN User Manual page 41

Par Parameter Name
P2-12 Analog Output 1 Format
 - = 0 to10V
 - = 10 to 0V
 - = 0 to 20mA
 - = 20 to 0mA
 - = 4 to 20mA
 - = 20 to 4mA
P2-13 Analog Output 2 Function
Digital Output Mode. Logic 1 = +24V DC
0 Drive running
1 Drive healthy
2 At speed
3 Motor speed > 0
4 Motor speed >= limit
5 Motor current >= limit
6 Motor torque >= limit
7 Analog input 2 >= limit
NOTE When using settings 4 – 7, parameters P2-19 and P2-20 must be used together to control the behaviour. The output will switch
to Logic 1 when the selected signal exceeds the value programmed in P2-19, and return to Logic 0 when the signal falls below the
value programmed in P2-20.
Analog Output Mode
8 Motor speed
9 Motor current
10 Motor torque
11 Motor power
12 PID output
P2-14 Analog Output 2 Format
- = 0 to10V
- = 10 to 0V
 - = 0 to 20mA
 - = 20 to 0mA
 - = 4 to 20mA
 - = 20 to 4mA
www.invertekdrives.com
Minimum
-
0
Logic 1 when the Optidrive is enabled (Running).
Logic 1 When no Fault condition exists on the drive.
Logic 1 when the output frequency matches the setpoint frequency.
Logic 1 when the motor runs above zero speed.
Logic 1 when the motor speed exceeds the adjustable limit.
Logic 1 when the motor current exceeds the adjustable limit.
Logic when the motor torque exceeds the adjustable limit.
Logic when the signal applied to the Analog Input 2 exceeds the adjustable limit.
0 to P1-01.
0 to 200% of P1-08.
0 to 200% of motor rated torque.
0 to 150% of drive rated power.
Output from the internal PID Controller, 0 – 100%.
-
Maximum Default
-
 -
12 9
-
 -
Version 3.05 | Optidrive Eco User Guide | 41
Units
-
-
-
9
