Internal units

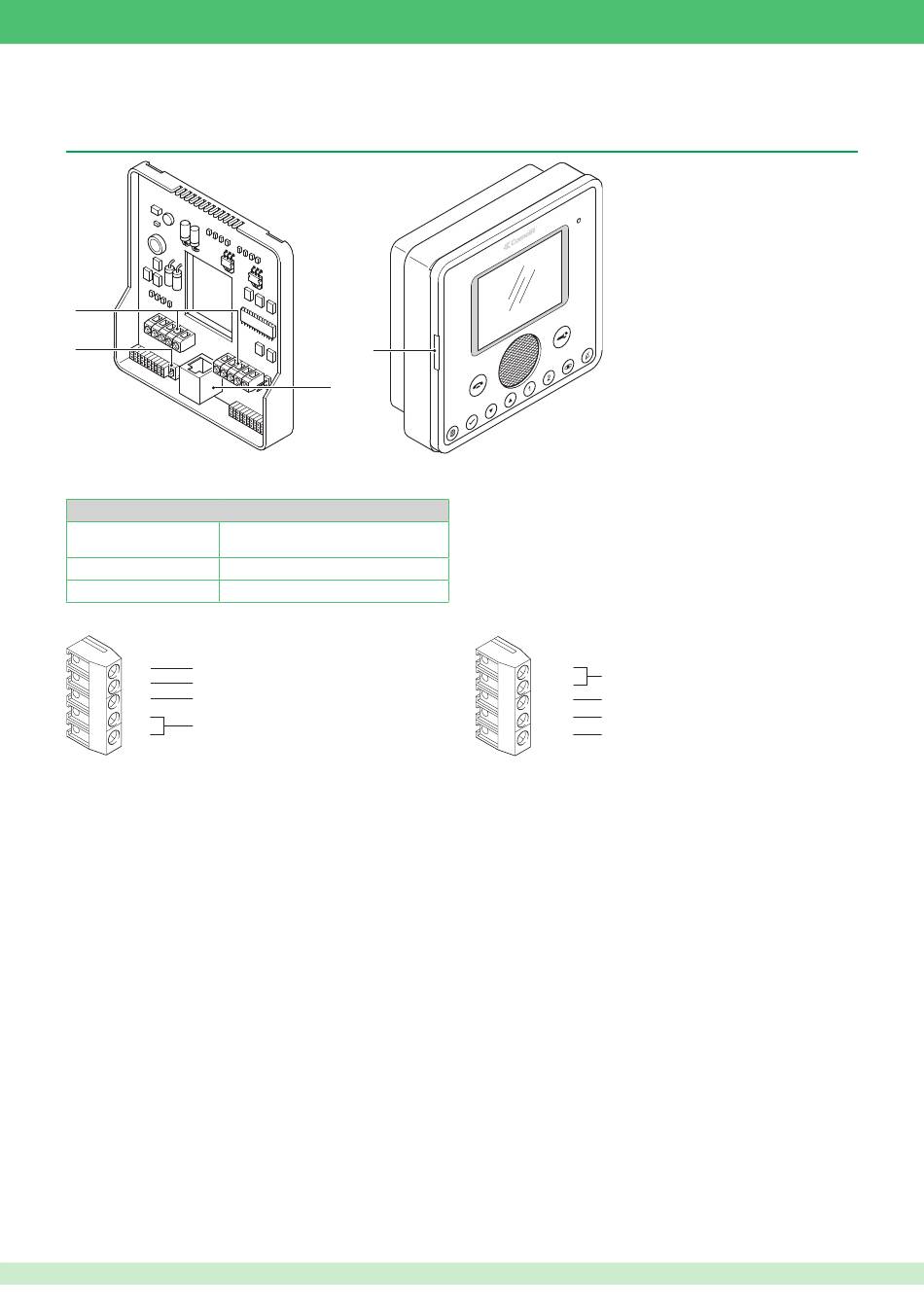

Planux backplate Art. 6231 and Planux monitor Art. 6202

1
2
Technical characteristics
Min. 0.7 W Max. 2.6 W (value for
Absorption
complete backplate + monitor product)
Power supply 36/57 Vdc 3A Max.
Dimensions H: 6.2 cm W: 7.2 cm D: 9 cm
1. Connection terminals
0V
Reference for CFP and PAN terminals
PAN
Panic contact terminal
CFP
Floor door call contact terminal
0V
Additional ringtone terminals
S+
2. VIP - POE selector for fitting to the latter if the internal unit is used on a standard - not VIP - PoE network
3. RJ45 Ethernet connector for connecting the internal unit to the VIP network
OP-
4. SD Card slot
OP+
0V
We recommend using VIP Manager software Art. 1449 to configure the internal unit (see specific manual). However, the main parameters can also be
OUT 1
configured directly, on the device itself (see page 50).
AL
For wiring details, refer to the diagrams section at the end of this manual.
4
3
0V
PAN
CFP
0V
S+
OP-
Optically coupled input terminals
OP+
0V
Reference for OUT1 and AL terminals
OUT 1 Output terminal 12 V MAX 100 mA
AL
Alarm contact terminal
9
