Summary of Contents for Comelit Visto

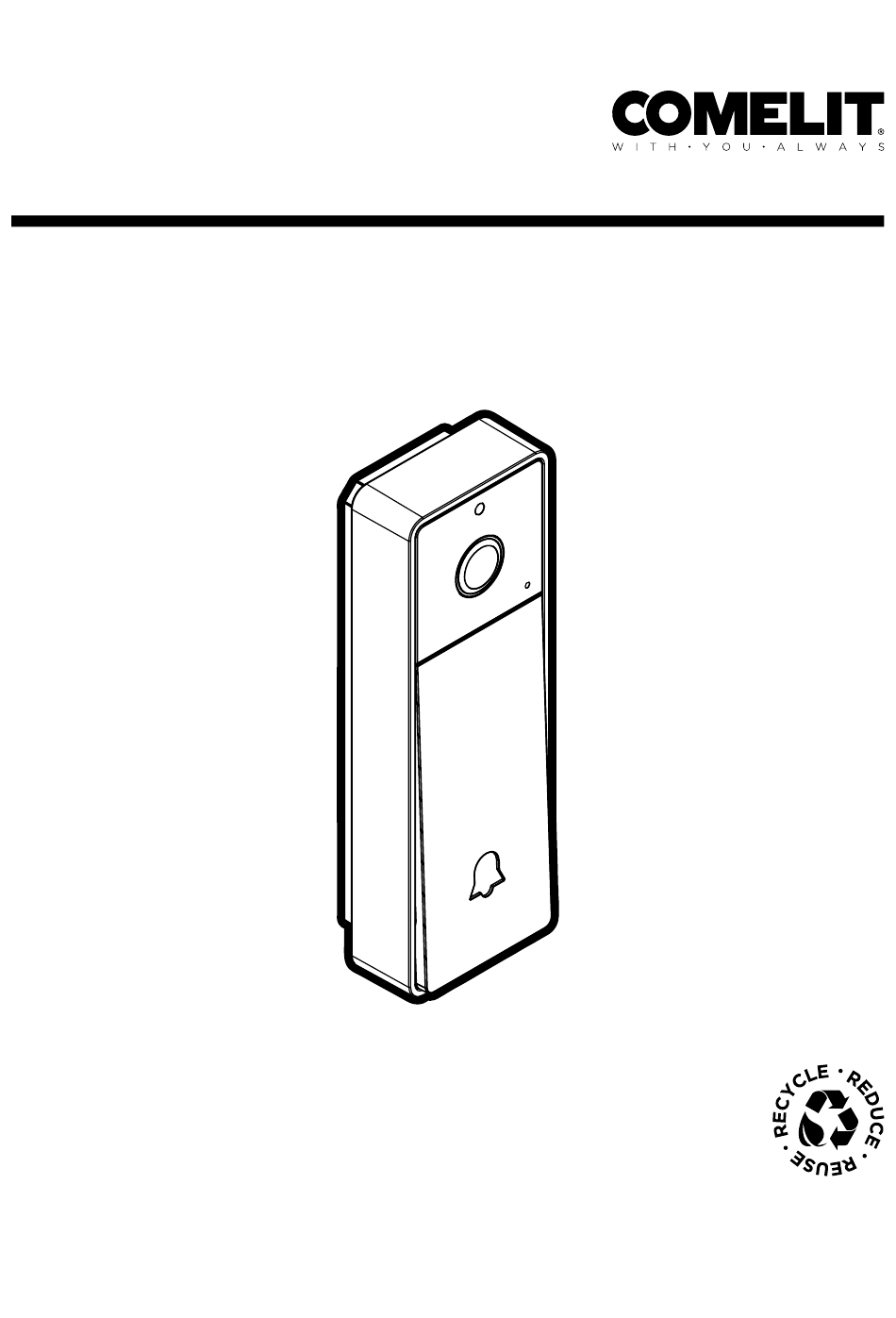

- Page 1 Visto VS8101A T E C H N I C A L M A N U A L Join us in taking care of our planet...
-
Page 2: Vip System Visto Ethernet
ViP system Visto Ethernet Smart surface-mounted doorbell from the Visto series for the ViP system. Complete with a call button, wide-angle camera, loudspeaker and microphone. Power supply via ViP or standard PoE system. Colour: Dark graphite RAL9011. Think before you Help us to save the planet. -
Page 3: Table Of Contents
Table of contents ViP system Visto Ethernet Description Indicator LEDs Technical specifications Maximum connection distances Installation diagrams Diagram 1A Diagram 1B Configuration procedure “2B” Account management Reset procedure Restore network settings Restore factory settings Warning... -
Page 4: Description
| Table of contents | Description NO COM NO COM NO COM NO COM Light sensor Wide-angle colour camera Microphone Call button / Indicator LED Loudspeaker Adjustable supports mounting art. 3525, art. 3526 (not included) Used for surface mounting with the screws supplied Cable route 2-pole terminal mounting Reset button... -
Page 5: Technical Specifications
| Table of contents | Technical specifications 47 mm (1,85") 28 mm (1,10") GENERAL DATA Type Complete unit Height (mm) Width (mm) Depth (mm) Product weight (g) Product colour: Dark Graphite RAL9011 Coating material type Surface mounting COMPATIBLE SYSTEMS AUDIO SPECIFICATIONS Technologies implemented Full-Duplex, Echo cancelling, Noise reduction CAMERA FEATURES... -
Page 6: Maximum Connection Distances
| Table of contents | HARDWARE SPECIFICATIONS Call type Buttons Type of buttons Mechanical Number of buttons (no.) Backlighting colour White Removable terminals Number of outputs (no.) Output type Relay (C-NO, 1A@30VDC) NETWORK AND COMMUNICATION PROTOCOL LAN type Ethernet 10/100 Mbit/s IP address assignment Auto IP, DHCP, Static ENVIRONMENTAL AND CONFORMITY SPECIFICATIONS... -
Page 7: Installation Diagrams
| Table of contents | Installation diagrams Diagram 1A Use of art. VS8101A to transmit calls to ViP devices for the apartment. Use ViP Manager software for configuration. VS8101A 6802W WHITE GREEN GREEN WHITE ORANGE VS8101A 6802W ORANGE BLUE & WHITE BLUE BROWN &... -
Page 8: Diagram 1B
Caution! Configuration only applies to 1B type systems (see diagram). The Comelit app, when correctly configured on a smartphone and tablet, can be used to receive calls originating from art. VS8101A. Download the Comelit app from the relevant store, install it and carry out “2B” configuration as detailed below. -
Page 9: Account Management
| Table of contents | SEARCH... Visto - Ethernet ViP DOOR ENTRY Account management ViP Manager software Options Options Scan system OPTIONS Advanced VS8101A Advanced user VS8101A Main settings Users... -
Page 10: Reset Procedure
| Table of contents | Reset procedure Restore network settings The device resets the network configuration to factory settings (DHCP + fallback to Auto Ip) and starts up. Disconnect the power supply to the device. Press and hold the reset button. Reconnect the power supply »... -
Page 11: Warning
• any purpose other than the intended use, • failure to observe the indications and warnings contained in this Manual / Instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction Sheet at any time and without prior notice. - Page 12 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m 1ª...
