Connection distances from Switch Art. 1440 / Repeater Art. 1447 to door-entry phones / door entry monitors

Connection distances from Switch Art. 1440 / Repeater Art. 1447 to switchboard Art. 1952

The connection distance varies depending on the port used on Switch Art. 1440.
Using the 10 Mb port
Using the 100 Mb port

Expanding a system using repeater Art. 1447

Repeaters Art. 1447 can be connected in series to increase the connection distance between two Switches Art. 1440 (Max. 8).
The connection distance between a Switch and a Repeater varies depending on the port used on Switch Art. 1440.
The connection distance between 2 Repeaters is always 120 m.

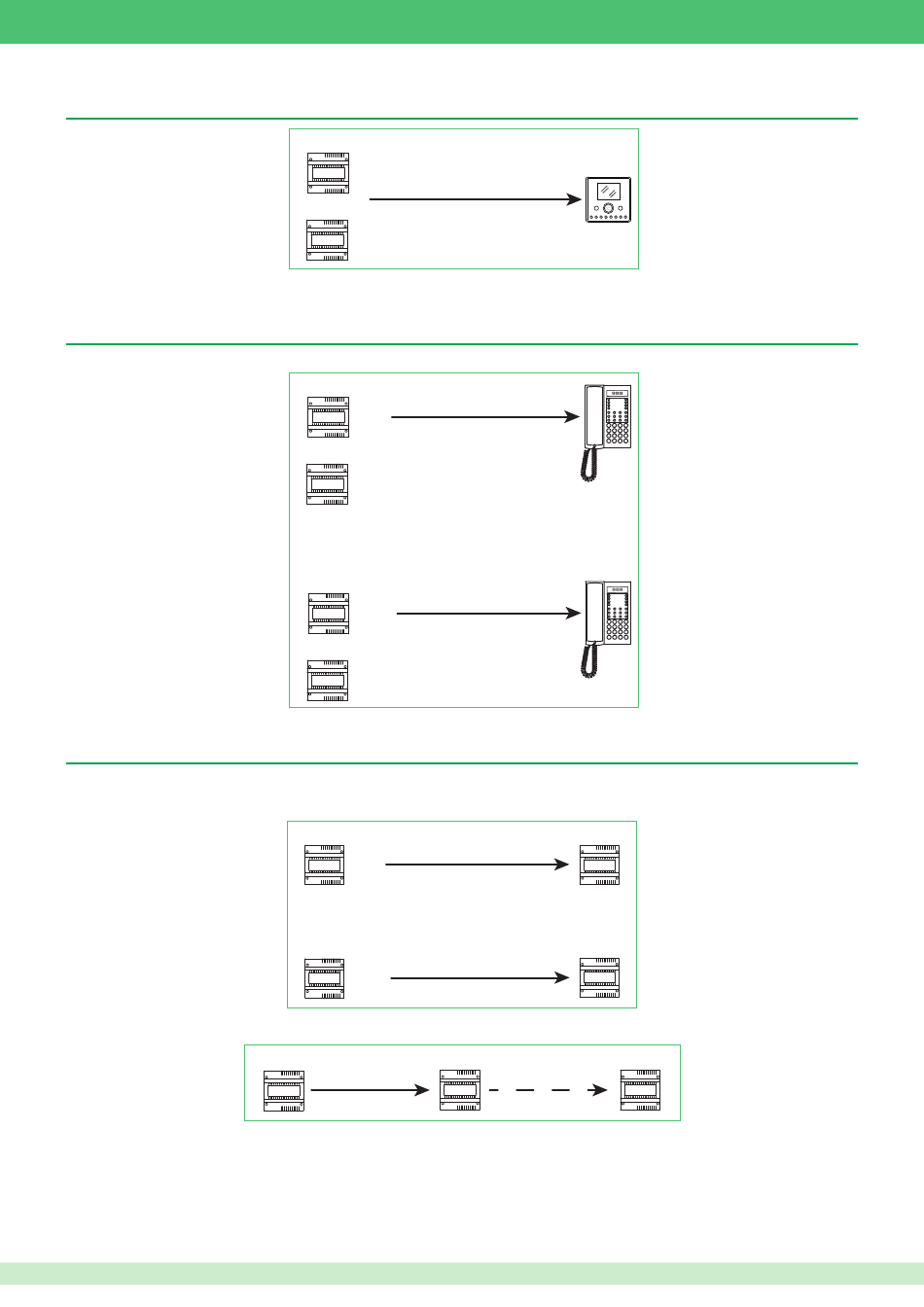

See diagram VIP/005
Art. 1440
Art. 1447
Art. 1440
10 Mb
Art. 1447
Art. 1440
100 Mb
Art. 1447
Art. 1440
10 Mb
Art. 1440
100 Mb
Art. 1447
120 m
250 m
250 m
120 m
Art. 1447
250 m
Art. 1447
120 m
Art. 1447
120 m
Art. 1447
