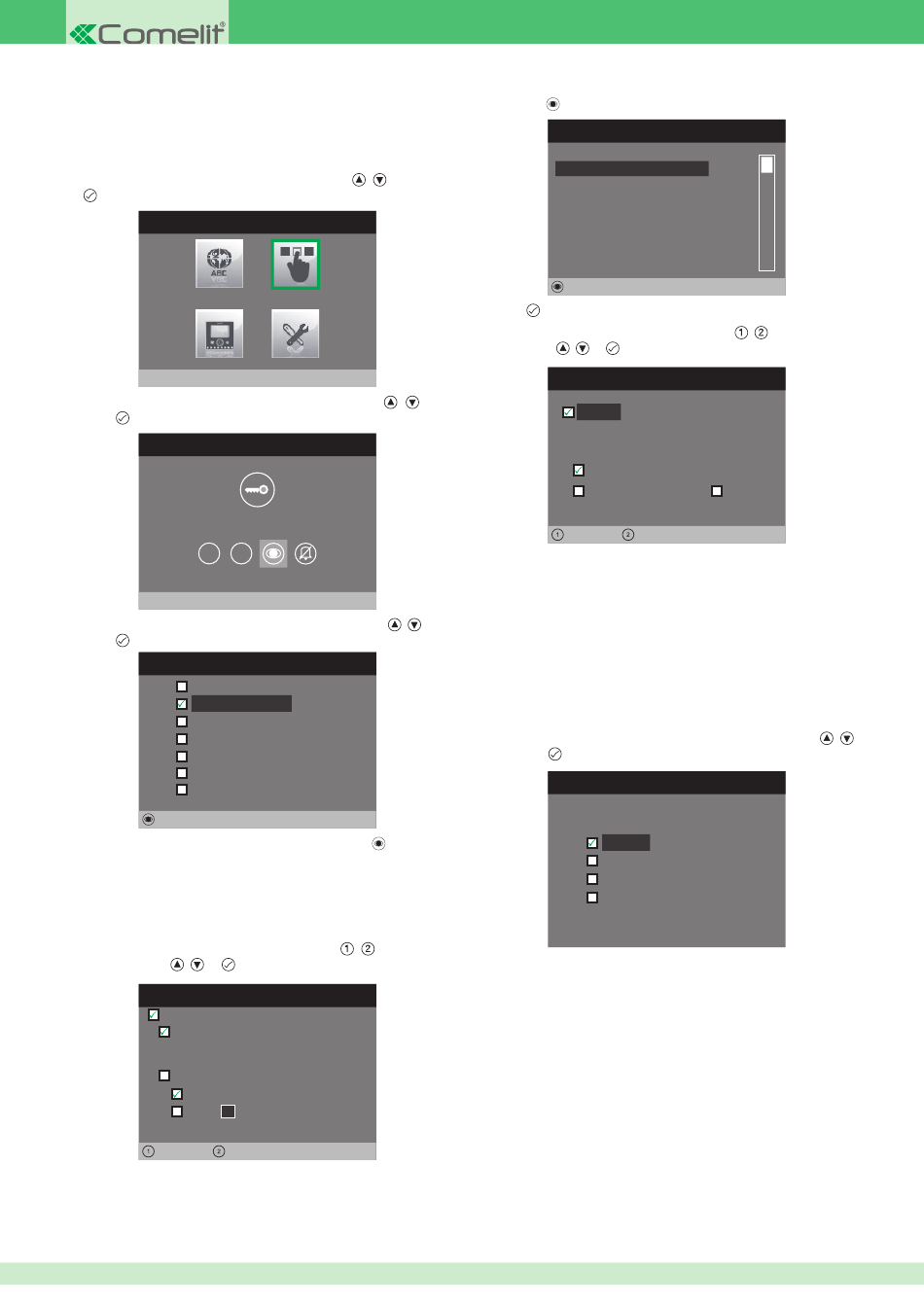

• Confi guring 1 - 2 or Self-ignition buttons
1 - 2 and Self-ignition buttons are programmed in the same way and
can perform the same functions. The programming procedure, which
applies to all 3 buttons, is described below.
1. Access the installer menu.
2. Select the Confi gure buttons menu by pressing
to access it.
INSTALLER MENU
Configure buttons
3. Select the Confi gure Self-Ignition menu by pressing
press to access it.
BUTTON PROGRAMMING MENU
1 2
Configure Self-Ignition
4. Select the function you wish to assign to the button using
press to confi rm.
CONFIGURE SELF IGNITION
Intercom
Self-ignition
Alarms
Lock-release
Actuator
Activate output
Function disabled
Edit
5. Once the desired function has been selected, press
the settings.
If the Intercom function is selected:
„ Select the fi elds which can be changed using
the value using , or .
CONFIGURE VIP ADDRESS
Active:
ViP address:
0 0 0 0 0 1 0 1
Backplate:
Master
1
Slave
Left Right
• The VIP address function determines the address of the internal unit
to be called once the button is pressed.
• The Backplate function determines whether to call the main or
secondary internal unit with the same VIP address.
52
If the Self-ignition function is selected:
1. Press the
, and press
2. Press
3. Select the fi elds which can be changed using
value using
, and
• The VIP address function determines the address of the external
unit or remote camera module Art. 1445.
• Select the Automatic camera function to link the camera for external
unit Art. 4662C.
• Sele ct the Camera number function and enter the input number
, and
from the 4 available when using a remote camera module Art. 1445.
If the Alarm function is selected:
If you press the button a priority call will be sent to the confi gured VIP
address.
1. Select the type of call you wish to assign to the button using
and press
to change
, and change
For call confi guration, see page 54.
button.
CONFIGURE SELF-IGNITION
Not assigned
Not assigned
Not assigned
Not assigned
Not assigned
Not assigned
Edit
to activate the function.
, or .
CONFIGURE SELF-IGNITION
Active:
ViP address
0 0 0 0 0 0 0 0
Automatic camera
Camera number
1
Left Right
to confi rm.
Alarms
Alarm
Panic
Fire
Priority call 4
, and change the
,
