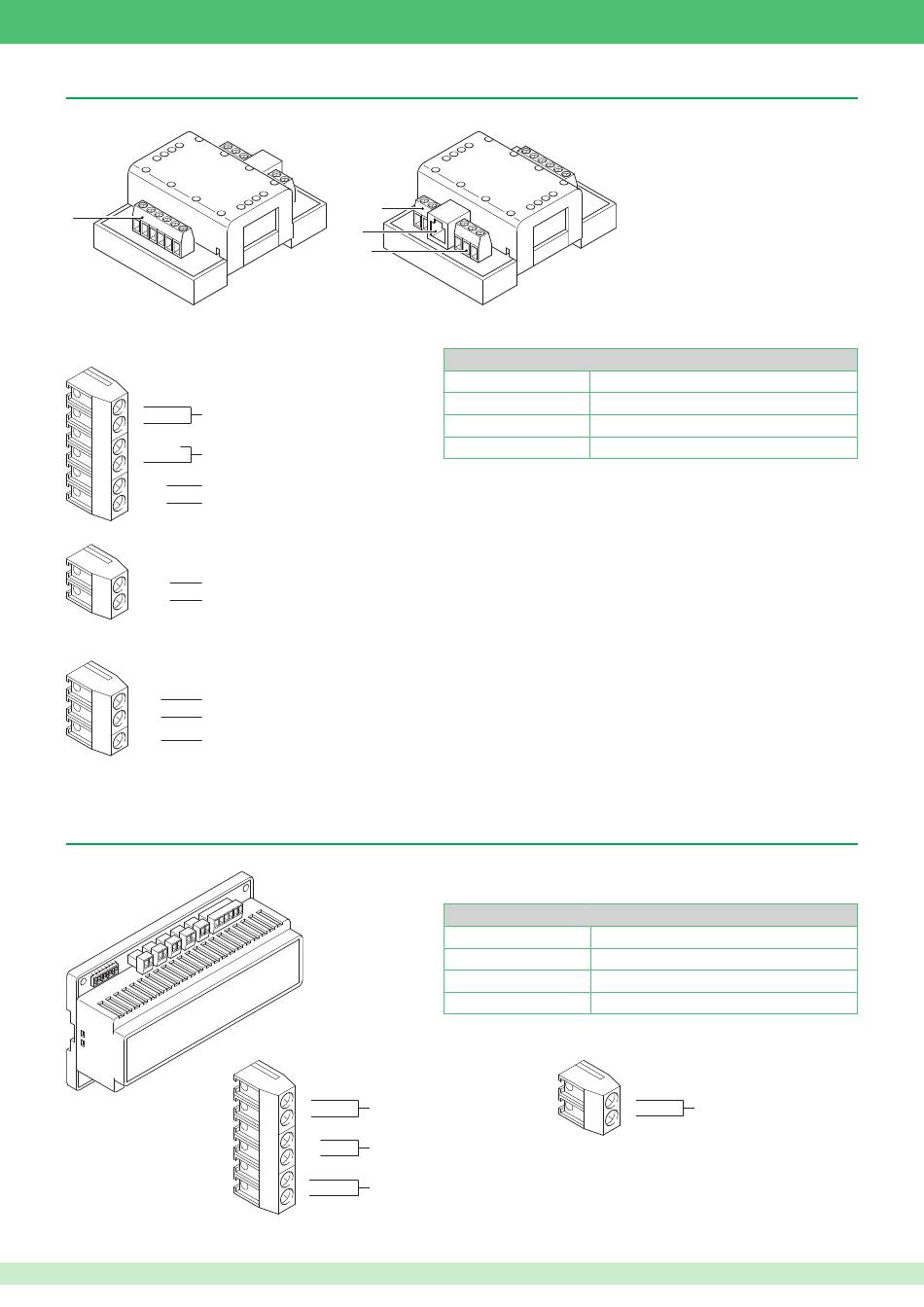

PAL / NTSC video output module Art. 1446

Module Art. 1446 provides an outgoing video signal from the system in PAL or NTSC format.
1
1.
Terminal block for video outputs
C
S-VIDEO video output terminals
Y
S- GND
CVBS video output terminals
V
COM
Terminal not used
SPK
Terminal not used
2.
Terminal block for open collector outputs
OUT 1
Generic open collector output terminal (in closure to GND)
OUT 2 Terminal not used
3.
Network connection Ethernet port
4.
Input terminal block
IN1 Terminal not used
COM Terminal not used
IN2
Terminal not used
For wiring details, refer to the diagrams section at the end of this manual.

Expansion module Art. SK9071

Expansion module Art. SK9071 for use in conjunction with the IO module Art. 1443.
1.
For wiring details, refer to the diagrams section at the end of this manual.
2
3
4
Connection terminal blocks
B
Terminals not used
A
D-
Art. 1443 connection terminals
D+
-
Art. 1443 12 VDC power supply terminals
+
2
3
4
Technical characteristics
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
Temperature thresholds -30 / +55°C
Dimensions 4 DIN modules / H: 3.6 cm W: 6.5 cm D: 8.3 cm
Technical characteristics
Absorption Min. 0.7 W Max. 2.6 W
Power supply 12 Vdc
Temperature thresholds -30 / +55°C
Dimensions 8 DIN modules / H: 5.5 cm W: 14 cm D: 9.5 cm
B
A
J1...J10 Relay output terminals
