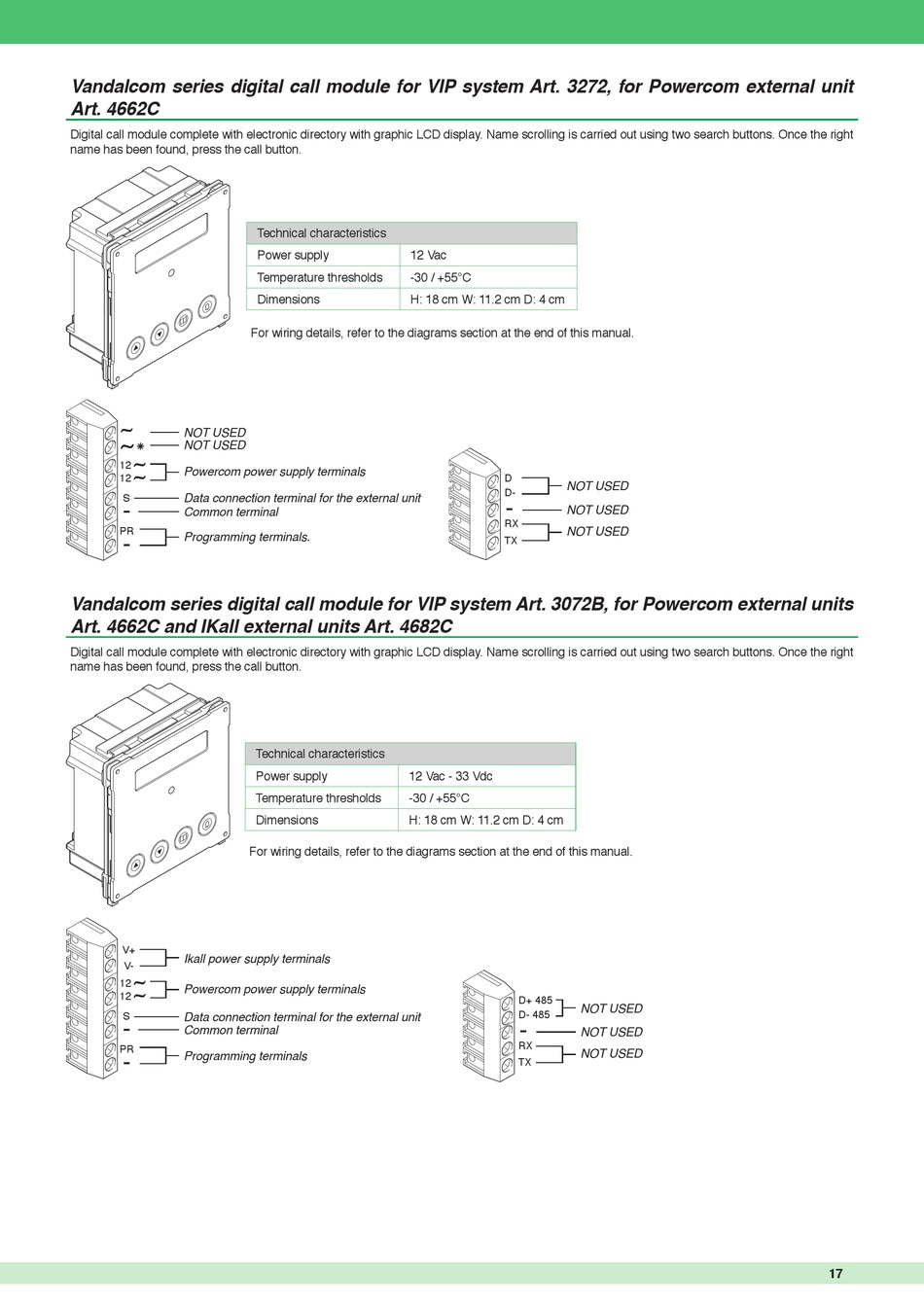

Vandalcom series digital call module for VIP system Art. 3272, for Powercom external unit
Art. 4662C
Digital call module complete with electronic directory with graphic LCD display. Name scrolling is carried out using two search buttons. Once the right
name has been found, press the call button.
~
NOT USED
~
NOT USED
⁕
~
12
Powercom power supply terminals
~
12
S Data connection terminal for the external unit
-
Common terminal
PR
Programming terminals.
-
D
Vandalcom series digital call module for VIP system Art. 3072B, for Powercom external units
D-
-
Art. 4662C and IKall external units Art. 4682C
RX
Digital call module complete with electronic directory with graphic LCD display. Name scrolling is carried out using two search buttons. Once the right
TX
name has been found, press the call button.
V+
Ikall power supply terminals
V-
~
12
Powercom power supply terminals
~
12
Data connection terminal for the external unit
S
-
Common terminal
PR
Programming terminals
-
D+ 485
D- 485
-
RX
TX
Technical characteristics
Power supply 12 Vac
Temperature thresholds -30 / +55°C
Dimensions H: 18 cm W: 11.2 cm D: 4 cm
For wiring details, refer to the diagrams section at the end of this manual.
Technical characteristics
Power supply 12 Vac - 33 Vdc
Temperature thresholds -30 / +55°C
Dimensions H: 18 cm W: 11.2 cm D: 4 cm
For wiring details, refer to the diagrams section at the end of this manual.
~
~
⁕
~
