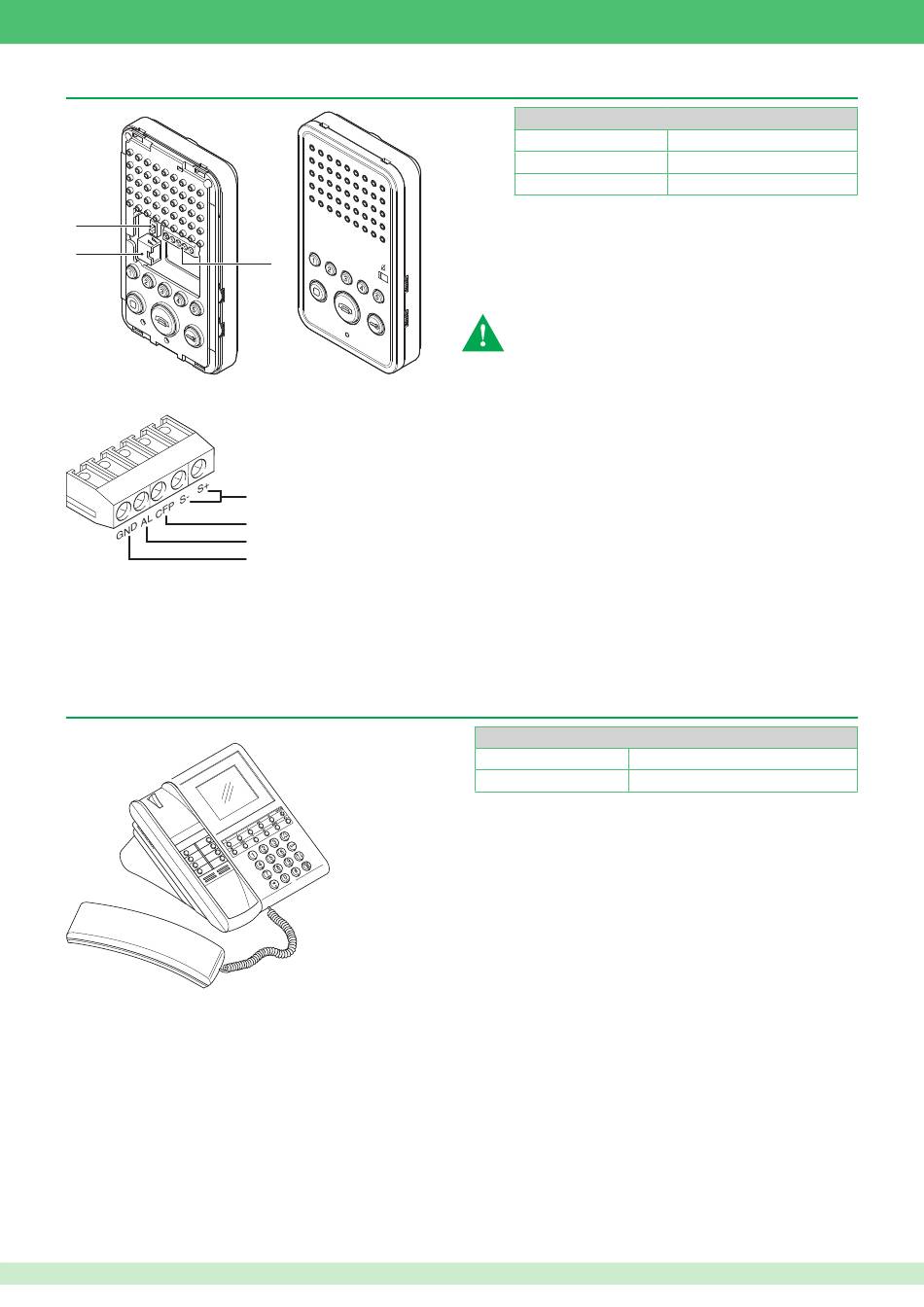

Easycom door-entry phone Art. 6203

2
3
1. Connection terminals
2. VIP - POE selector for fitting to the latter if the internal unit is used on a standard - not VIP - PoE network
3. RJ45 Ethernet connector for connecting the internal unit to the VIP network
Use VIP Manager software Art. 1449 to configure the internal unit (see specific manual).
For wiring details, refer to the diagrams section at the end of this manual.

VIP switchboard Art. 1952

We recommend using VIP Manager software Art. 1449 to configure the internal unit (see specific manual). However, the main parameters can also be
configured directly, on the device itself (see page 67).
For wiring details, refer to the diagrams section at the end of this manual.
1
Ringtone repetition terminals
Floor door call contact terminal
Alarm contact terminal
Common terminal for alarm contact and floor door call
Technical characteristics
Absorption
Power supply
Dimensions
2
3
The Easycom door-entry phone Art. 6203 manages up to
3 slave devices, not 15 as with other internal units.
Technical characteristics
Absorption
Power supply
Min. 0.7 W Max. 2.6 W
36/57 Vdc 3A Max.
H: 16 cm W: 9.1 cm D: 2.7 cm
1
Min. 0.7 W Max. 2.6 W
36/57 Vdc 3A Max.
