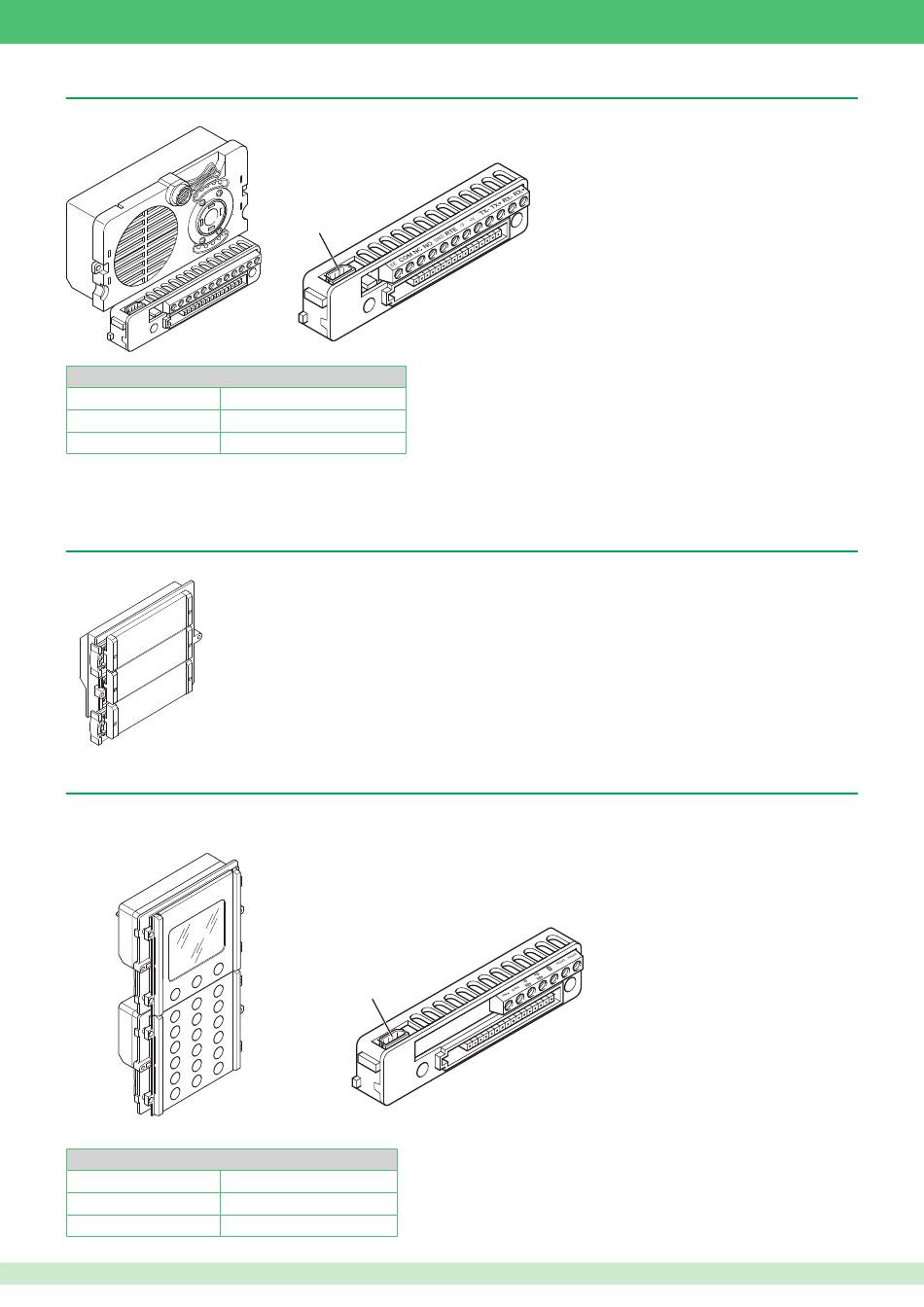

IKall series colour audio/video unit for VIP system Art. 4682C
VIP system audio-video unit with terminal block, complete with mini lens adjustable colour camera.
Technical characteristics
Power supply
33 Vdc
Temperature thresholds
-30 / +55°C
Dimensions
H: 10.2 cm W: 5.5 cm D: 3.5 cm
For wiring details, refer to the diagrams section at the end of this manual.
IKall call button module Art. 33433 - 33434 - 33436
Additional call button module. Versions with 3, 4 and 6 buttons are available.
For wiring details, see page 30.
IKall series digital call module for VIP system Art. 3360A
Digital call module complete with electronic directory with graphic LCD display. Also functions as a coded electronic key module. Names can be scrolled
using the two search buttons or by entering the initial letter of the required name. Once the right name has been found, press the call button. The user
code can also be entered to make a direct call.
Technical characteristics
Power supply
24 Vac - 33 Vdc
Temperature thresholds
-30 / +55°C
Dimensions
H: 18 cm W: 11.2 cm D: 4 cm
1
1. 8-pole cable connector
SE:
NC / NO:
COM:
RTE / GND: Timed relay control terminals
-V +V:
TX- / TX+:
RX- / RX+:
1
For wiring details, refer to the diagrams section at the end of this manual.
Door lock connection terminals
Normally closed and normally open output terminals
Common terminal
Power supply terminals
Ethernet transmission line terminals
Ethernet reception line terminals
1. 8-pole cable connector
24 Vac: Local power supply terminals (for use when
a dedicated power supply unit needs to be
connected for module Art. 3360A)
PRG GND: Programming terminals
485 D- 485D+: RS485 data line
15
