Porter switchboard Art. 1952

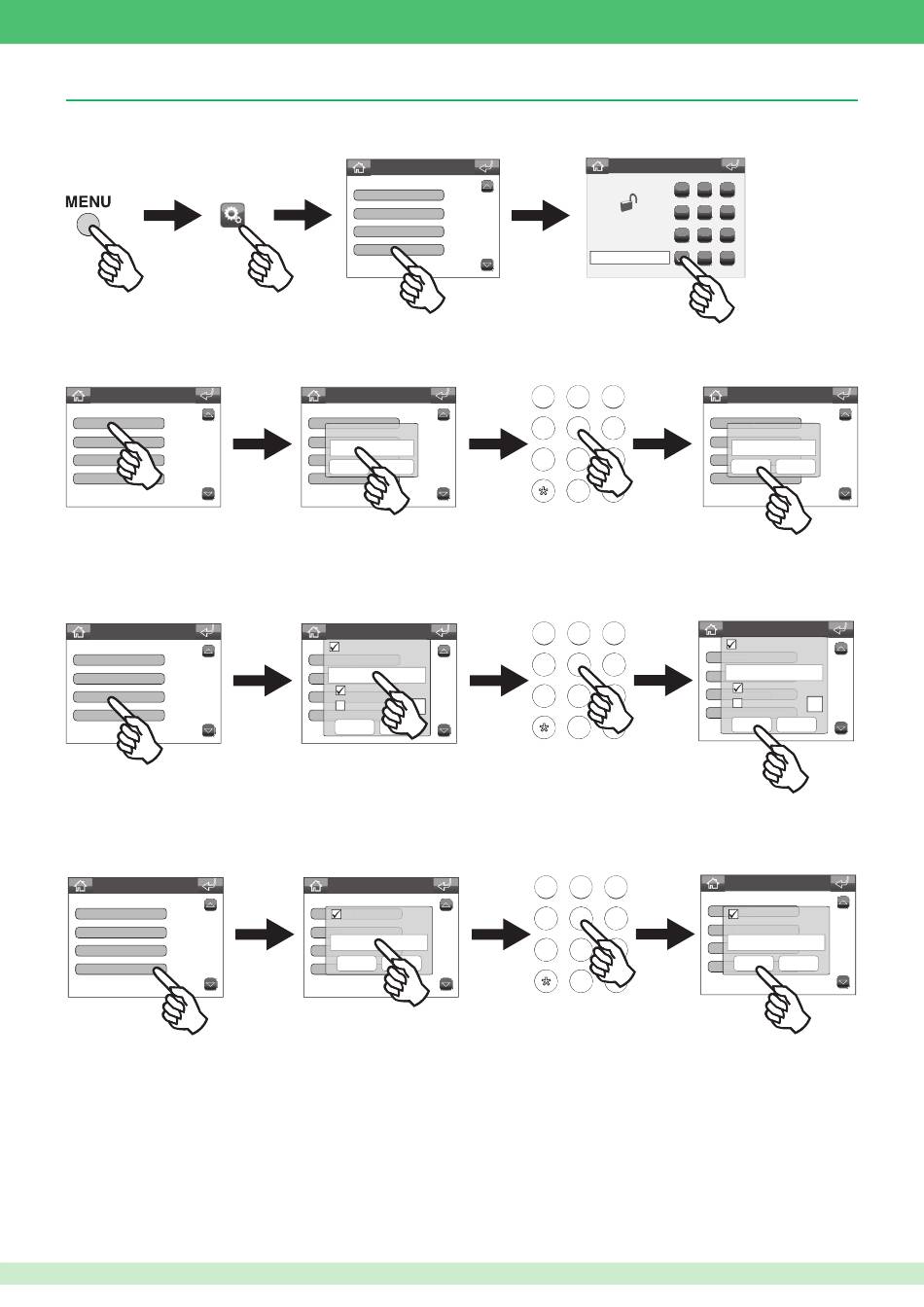

• Accessing the installer menu

• Setting the VIP Address

Advanced Settings
ViP address
About
Associated camera
Associated video output

• Setting the associated camera

This function can be used to associate a camera with the switchboard, via module Art. 1445. The images from this camera will be displayed on the
internal unit monitor during the conversation.
Advanced Settings
ViP address
About
Associated camera
Associated video output

• Setting the associated video output

This function should be used in conjunction with the previous function (Associated camera). If the VIP address of an IP/PAL module Art. 1446 on the connected
monitor is set to the same as the latter, the images from the associated camera will be displayed when the switchboard enters conversation mode.
Advanced Settings
ViP address
About
Associated camera
Associated video output
