VIP system accessories

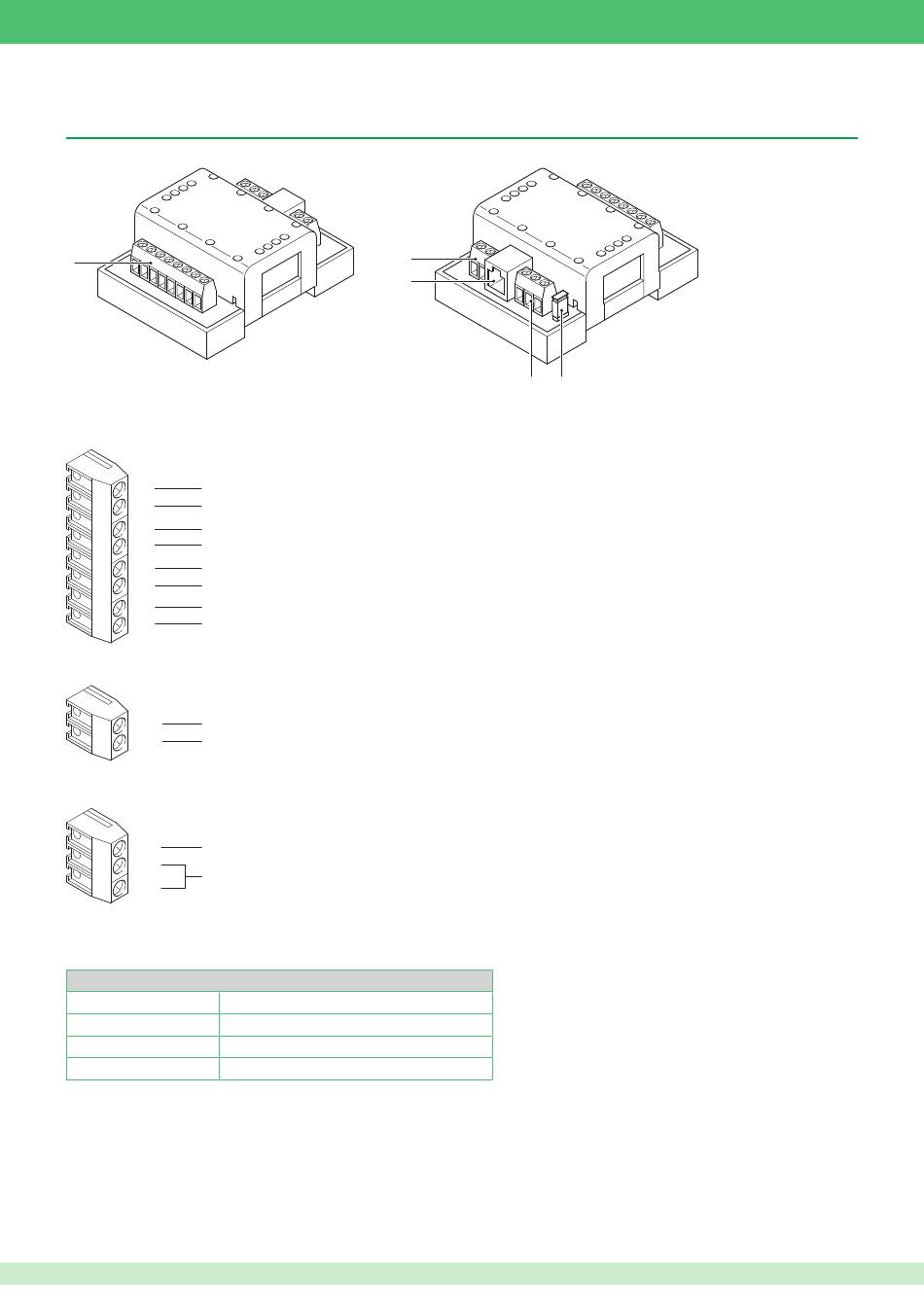

Remote camera module Art. 1445
Remote camera module Art. 1445 transmits the video signals received from 4 cameras.
1
1.
Video signal from cameras input terminals
V1
Input terminal for composite video signal from camera 1
SH
Camera 1 shield terminal
V2
Input terminal for composite video signal from camera 2
SH
Camera 2 shield terminal
V3
Input terminal for composite video signal from camera 3
SH
Camera 3 shield terminal
V4
Input terminal for composite video signal from camera 4
SH
Camera 4 shield terminal
2.
Secondary power supply terminals.
To be used if the POE network power supply is insufficient
AUX
12 - 24 V DC power supply terminal
GND
Earth terminal
3.
Network connection Ethernet port.
4.
RS485 line terminals.
GND
Earth terminal
D-
RS485 data line
D+
5.
RS485 line closure jumper
N.B. Up to this point, the functions linked to the RS485 line have not been implemented.
Technical characteristics
Absorption
Min. 0.7 W Max. 2.6 W
Power supply
36/57 Vdc 3A Max.
Temperature thresholds
-30 / +55°C
Dimensions
4 DIN modules / H: 3.6 cm W: 6.5 cm D: 8.3 cm
For wiring details, refer to the diagrams section at the end of this manual.
2
2
3
3
4
5
4
5
19
