Assigning Module Index To Additional Button Products Art. 3337/3 - 4 - 6 - Comelit VIP System Installer Manual

Assigning module index to additional button products
Art. 3337/3 - 4 - 6
Follow the procedure below for each module Art. 3337 connected to the system.
This procedure is used to assign an index to modules Art. 3337. The module index must then be used with the VIP Manager software
to complete module programming (see manual for VIP Manager software Art. 1449).

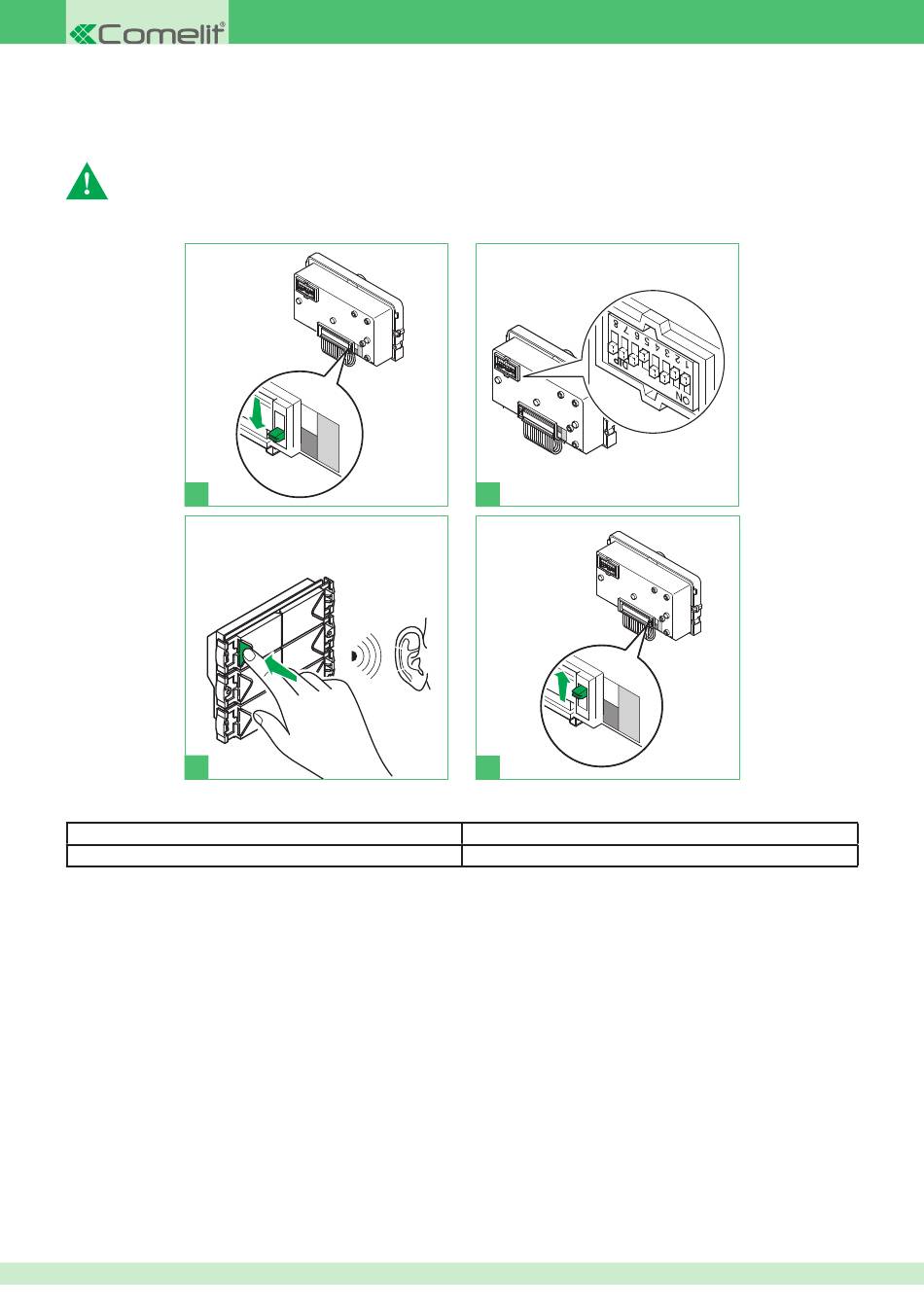

1. Perform module and button wiring.
2. Power up the external unit, carry out steps (1-4).
1
P R
3
Make a note of the address which has just been set on module Art. 3337 and the VIP address of the external unit to which it is connected,
as in the following example.
Art. 4662C VIP address
00000600
48
P R
2
4
Art. 3337 Module index
236
Set the Module index code using
the dip switches, see table on
page 45.
P R
P R
