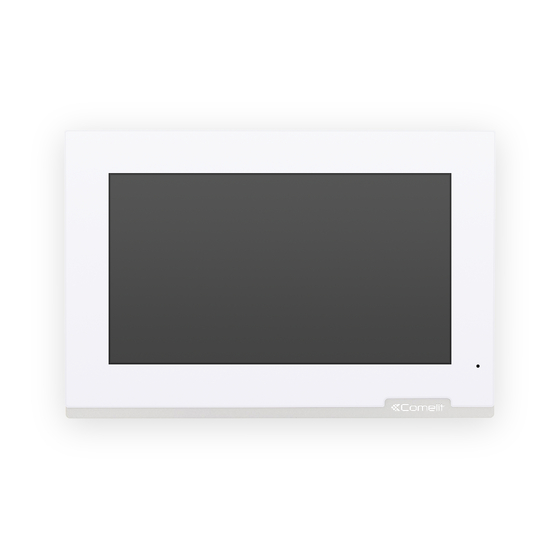

- Page 1 TECHNICAL MANUAL Venice Wi-Fi door entry monitor - ViP system Art. 6854W Passion.Technology. Design.
- Page 2 • We advise against running the system wires through the same duct as the power cables (230V or higher). • To ensure Comelit products are used safely: carefully observe the indications provided in the manuals / instruction sheets and make sure the system created using Comelit products has not been tampered with / damaged.
- Page 3 NETWORK AND COMMUNICATION Maximum absorption 7 Watt PROTOCOLS Comaptibility with HARDWARE FEATURES Type of LAN network Ethernet 10/100 Video Entry Comelit Mbit/s Number of inputs IP address assignment DHCP, AUTO IP, Compatibility with Communication ports RJ45 (Ethernet) static IP Comelit app (with...
- Page 4 Welcome Deutsche Configuration CONFIGURATION WIZARD English Español 1. Select the desired language, confirm by pressing 4. Set the ViP address for the device (8-character alphanumeric ID code provided by your installer) and continue with guided configuration by and choose whether you want to install the monitor pressing continue >...
- Page 5 Accessing the Advanced Settings menu Comelit Comelit Comelit Door entry system Door entry system Door entry system 3:56 PM 3:56 PM 3:56 PM Monday 23 April Monday 23 April Monday 23 April Entrance Entrance Entrance Lock release and actuators Lock release and actuators...
- Page 6 Basic wiring diagram 1442B 100-240 V 1442B Use POE ports to 100-240 V connect the art. 6854W 6854W 6854W 6854W ORANGE WHITE ORANGE GREEN WHITE GREEN 1595 120-230 V TX TX RX RX NO NC UT8020 UT9200 20 m max. Local door-opener button...
- Page 7 Variant with second external unit Use POE ports to connect 1442B 100-240 V the art. 6854W Connections among uplink ports and 1440 only with 1442B Comelit red cable 1449 100-240 V 6854W 6854W ORANGE WHITE ORANGE GREEN 6854W WHITE GREEN...
- Page 8 Variant with PoE standard switch 1442B 100-240 V 1442B Use POE ports to connect 100-240 V the art. 6854W 6854W 6854W 6854W STANDARD SWITCH BROWN & WHITE BROWN BLUE & WHITE BLUE ORANGE WHITE ORANGE GREEN WHITE GREEN 12 VDC 0,25A TX TX RX RX...
