VIP system actuator relay module Art. 1443

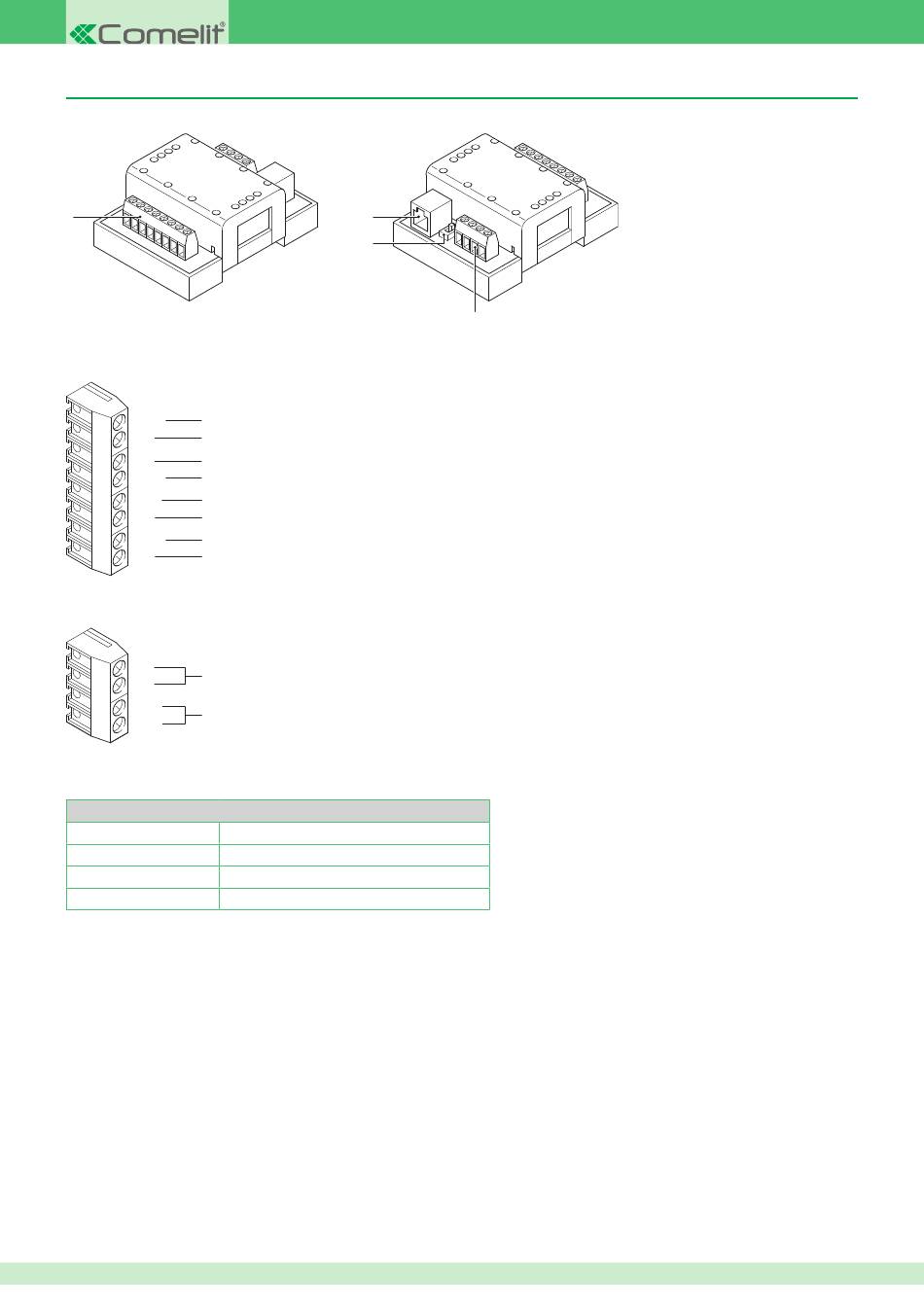

IO module Art. 1443 can be used to control 1 relay on board the device itself or on board any expansion units Art. SK9071 connected to it.
1
1.
Terminal block for on-board relay inputs and output
GND Earth terminal
IN1 Input terminal 1
IN2
Input terminal 2
GND
Earth terminal
OC1
Open collector output terminal
NC
On-board relay normally closed terminals
COM
Common terminal for NC / NO
NO On-board relay normally open terminals
2.
Terminals for connection of expansion module Art. SK9071
D+
Art. Sk9071 connection terminals
D-
GND
Art. Sk9071 12 VDC power supply terminals
12V
3.
Network connection Ethernet port
4.
VIP - Standard POE power supply selector
Technical characteristics
Absorption Min. 0.7 W Max. 2.6 W
Power supply 36/57 Vdc 3A Max.
Temperature thresholds -30 / +55°C
Dimensions 4 DIN modules / H: 3.6 cm W: 6.5 cm D: 8.3 cm
For wiring details, refer to the diagrams section at the end of this manual.
