Manually programming buttons on external unit Art. 4682C
The following procedure can be used to program buttons with VIP codes in the range between 1 and 255 only.
To program higher VIP addresses, use VIP Manager software Art. 1449.
1. Perform the wiring for the external unit.

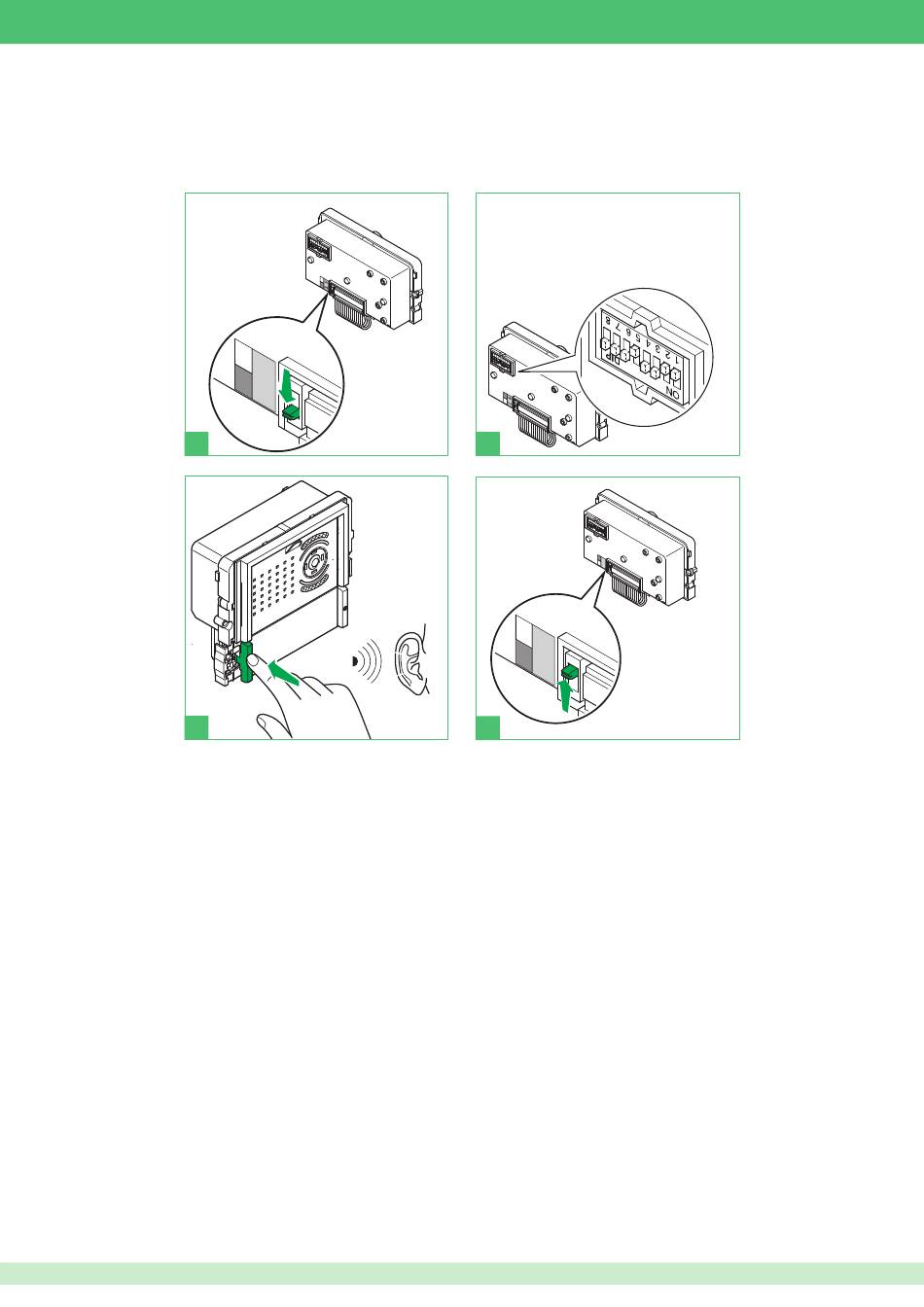

2. Power up the external unit, carry out steps (1-4).
1
P R
3
P R
Set the Dip switch on the rear of the module
Art. 4682C with the same code assigned to the
internal unit, in accordance with the information
provided in the programming table on page 45.
2
P R
4
P R
47
