Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
L1
BK
DISPLAY LIKELY FAILURE CONDITION
CODES
CLr No error(s) found
G
Control failure
COOKTOP TO
F1 UL A/D Error(s)
MAINBACK
BAKE/BROIL range over temperature
BK
OVEN TEMP
F2 Shorted key
SENSOR
F3 Oven sensor opened
Oven sensor shorted
BK

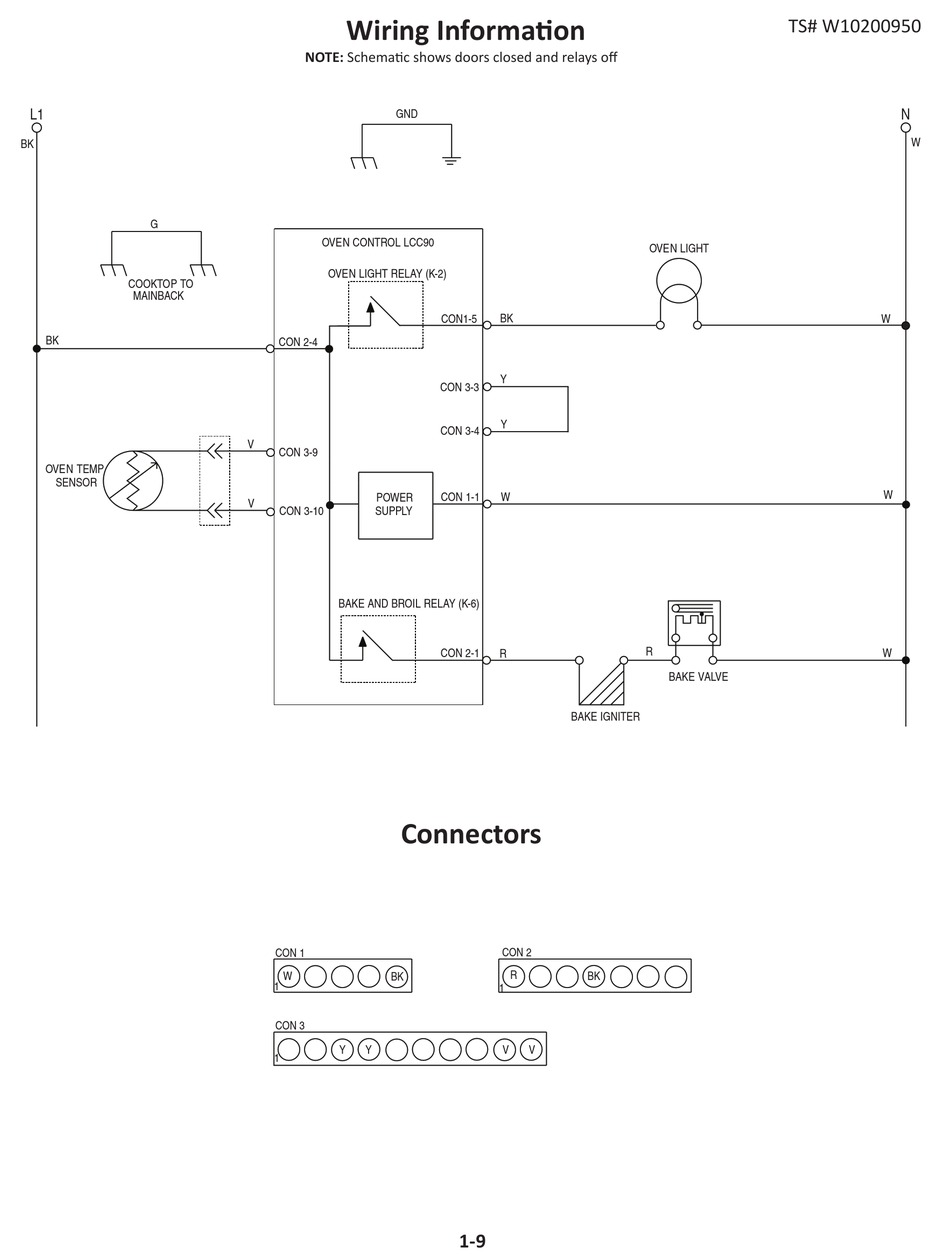

Wiring Diagrams

Wiring Information
NOTE: Schematic shows doors closed and relays off
GND

Failure/Error Display Codes

SUGGESTED CORRECTIVE ACTION PROCEDURE
(Good) No corrective action required
1.
Verify failure, if not displayed. Go to the diagnostics screen and clear the error code by
pressing the START key.
OVEN CONTROL LCC90
2. Unplug range or disconnect power longer than 30 seconds.
3. Plug in range or reconnect power.
OVEN LIGHT RELAY (K-2)
4.
Observe for longer than 1 minute.
5.
If failure remains, go to Step 6.
6.
Unplug range or disconnect power.
7. Replace control.
CON 2-4
8. Replace all parts and panels before operating.
9. Plug in range or reconnect power.
10. Verify operation is normal. Go to Step 1 and complete checks.
1. Verify failure, if not displayed. Go to the diagnostics screen and clear the error code by
pressing the START key.
2. Unplug range or disconnect power longer than 30 seconds.
V
CON 3-9
3. Plug in range or reconnect power.
4. Observe for longer than 1 minute.
5. If failure remains, go to Step 6.
POWER
V
6.
Unplug range or disconnect power.
CON 3-10 SUPPLY
7. Replace control.
8. Replace all parts and panels before operating.
9. Plug in range or reconnect power.
10. Verify operation is normal. Go to Step 1 and complete checks.
1. Unplug range or disconnect power.
BAKE AND BROIL RELAY (K-6)
2. Disconnect sensor from harness.
3.
Measure sensor value (between connector pins) between 1000Ω @ 32°F (0°C) and
2697Ω @ 900°F (482.2°C) (room temperature approximately = 1080Ω) . Also measure
from sensor connector to sensor casing for possible short. If measurement does not
correlate to real temperature, or if short is found, replace sensor.
4. Trace wires and connectors to sensor from control, then back to control. If wire or
connection is damaged, replace the harness.
5.
Reconnect the sensor to the harness.
6. Replace all parts and panels before operating.
7. Plug in range or reconnect power.
SURFACE BURNER
8. Press BAKE and START. Observe for longer than 1 minute. If failure remains,
IGNITION SWITCHES
go to Step 9.
9.
Unplug range or disconnect power.
BK
10. Replace control.
Connectors
11. Replace all parts and panels before operating.
12. Plug in range or reconnect power.
13. Verify operation is normal. Go to Step 1 and complete checks.

Quick Connect Plugs

CON 1
W
BK
1
CON 3
Y Y
1
COMPONENT CONNECTION
TERMINAL (SPLICE)
CON1-5 BK
Y
CON 3-3
Y
CON 3-4
CON 1-1 W
CON 2-1
R
BAKE IGNITER
SPARK MODULE
R R
CON 2
R
BK
1
LEGEND
V V
ON
NO SOME IN LINE
CONNECTION MODELS CONNECTION
1- 9
3
TS# W10200950
OVEN LIGHT
R
BAKE VALVE
GND
OPTIONAL
N
W
W
W
W
W
