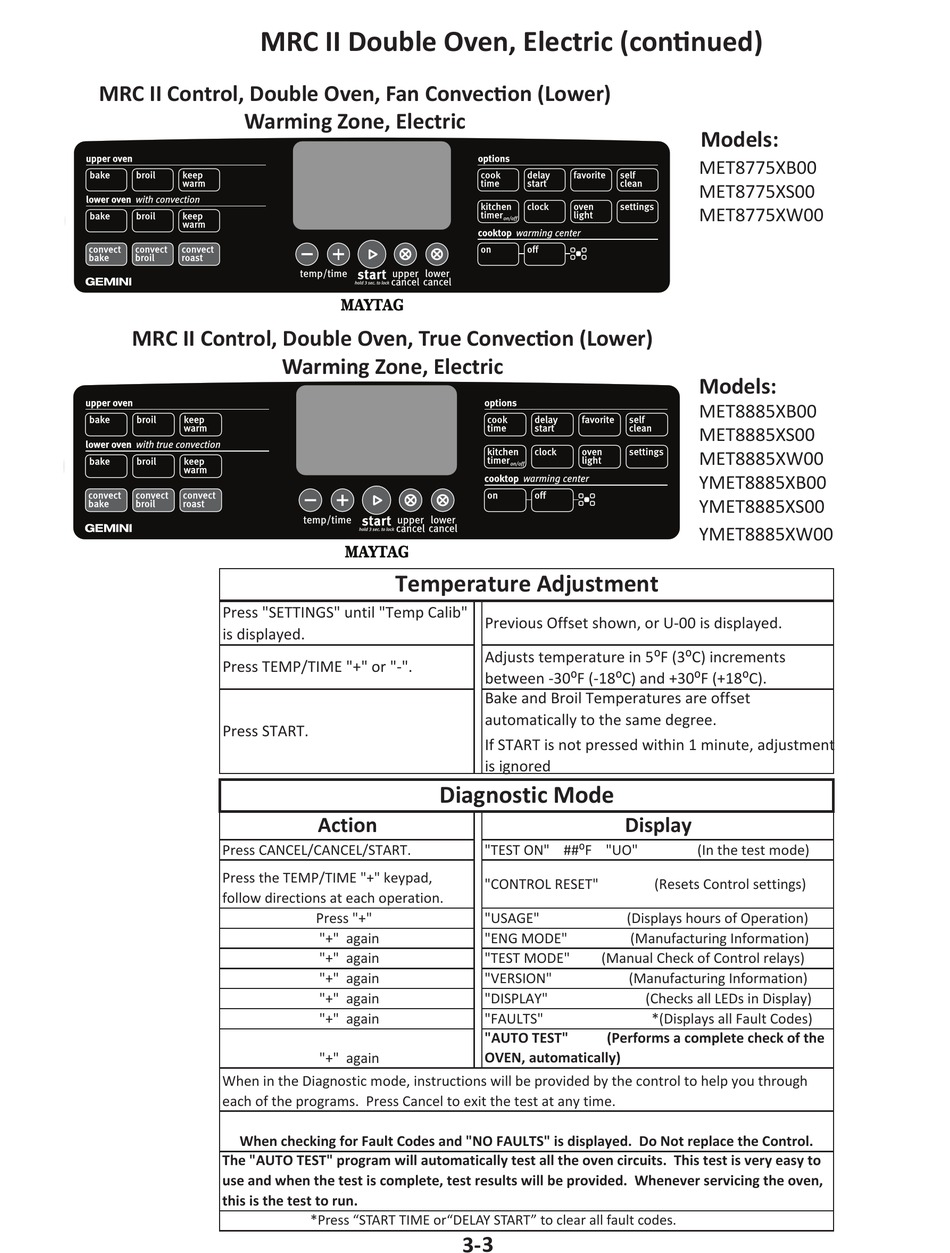

MRC II Double Oven, Electric (continued)
MRC II Control, Double Oven, Fan Convection (Lower)
Warming Zone, Electric
MRC II Control, Double Oven, True Convection (Lower)
Press "SETTINGS" until "Temp Calib"
is displayed.
Press TEMP/TIME "+" or "-".
Press "SETTINGS" until "Temp Calib"
is displayed.
Press TEMP/TIME "+" or "-".
Press START.
Press START.
Press CANCEL/CANCEL/START.
Press the TEMP/TIME "+" keypad,
follow directions at each operation.
Press CANCEL/CANCEL/START.
Press the TEMP/TIME "+" keypad,
follow directions at each operation.
When in the Diagnostic mode, instructions will be provided by the control to help you through
each of the programs. Press Cancel to exit the test at any time.
When in the Diagnostic mode, instructions will be provided by the control to help you through
When checking for Fault Codes and "NO FAULTS" is displayed. Do Not replace the Control.
each of the programs. Press Cancel to exit the test at any time.
The "AUTO TEST" program will automatically test all the oven circuits. This test is very easy to
use and when the test is complete, test results will be provided. Whenever servicing the oven,
When checking for Fault Codes and "NO FAULTS" is displayed. Do Not replace the Control.
this is the test to run.
The "AUTO TEST" program will automatically test all the oven circuits. This test is very easy to
use and when the test is complete, test results will be provided. Whenever servicing the oven,
this is the test to run.
Warming Zone, Electric
Temperature Adjustment
Temperature Adjustment
Diagnostic Mode
Action
Diagnostic Mode
Action
Press "+"
"+" again
"+" again
Press "+"
"+" again
"+" again
"+" again
"+" again
"+" again
"+" again
"+" again
"+" again
"+" again
"+" again
*Press "START TIME or"DELAY START" to clear all fault codes.
*Press "DELAY START" to clear all fault codes.
Previous Offset shown, or U-00 is displayed.
Adjusts temperature in 5⁰F (3⁰C) increments
between -30⁰F (-18⁰C) and +30⁰F (+18⁰C). Previous Offset shown, or U-00 is displayed.
Bake and Broil Temperatures are offset
Adjusts temperature in 5⁰F (3⁰C) increments
automatically to the same degree.
between -30⁰F (-18⁰C) and +30⁰F (+18⁰C).
If START is not pressed within 1 minute, adjustment
Bake and Broil Temperatures are offset
is ignored
automatically to the same degree.
If START is not pressed within 1 minute, adjustment
is ignored
Display
"TEST ON" ##⁰F "UO"
Display
"CONTROL RESET"
"TEST ON" ##⁰F "UO"
"USAGE" (Displays hours of Operation)
"ENG MODE" (Manufacturing Information)
"CONTROL RESET"
"TEST MODE" (Manual Check of Control relays)
"USAGE" (Displays hours of Operation)
"VERSION" (Manufacturing Information)
"ENG MODE" (Manufacturing Information)
"DISPLAY"
"TEST MODE" (Manual Check of Control relays)
"FAULTS"
"VERSION" (Manufacturing Information)
"AUTO TEST" (Performs a complete check of the
"DISPLAY"
OVEN, automatically)
"FAULTS"
"AUTO TEST" (Performs a complete check of the
OVEN, automatically)
3- 3
Models:
MET8775XB00
MET8775XS00
MET8775XW00
Models:
MET8885XB00
MET8885XS00
MET8885XW00
YMET8885XB00
YMET8885XS00
YMET8885XW00
(In the test mode)
(Resets Control settings)
(In the test mode)
(Resets Control settings)
(Checks all LEDs in Display)
*(Displays all Fault Codes)
(Checks all LEDs in Display)
*(Displays all Fault Codes)
