F5 E1 (Door Latch System)

All F6 E* (Control Communication)
All F9 Fault Codes (House Miswired)
MRC II Fault Code Procedure (continued)
• Run Diagnostic Mode and verify
fault code
• While in Diagnostic Mode - Start Clean
cycle, to verify that door does latch.
• Unplug range or disconnect power
• If door did not latch - check for
contunity:

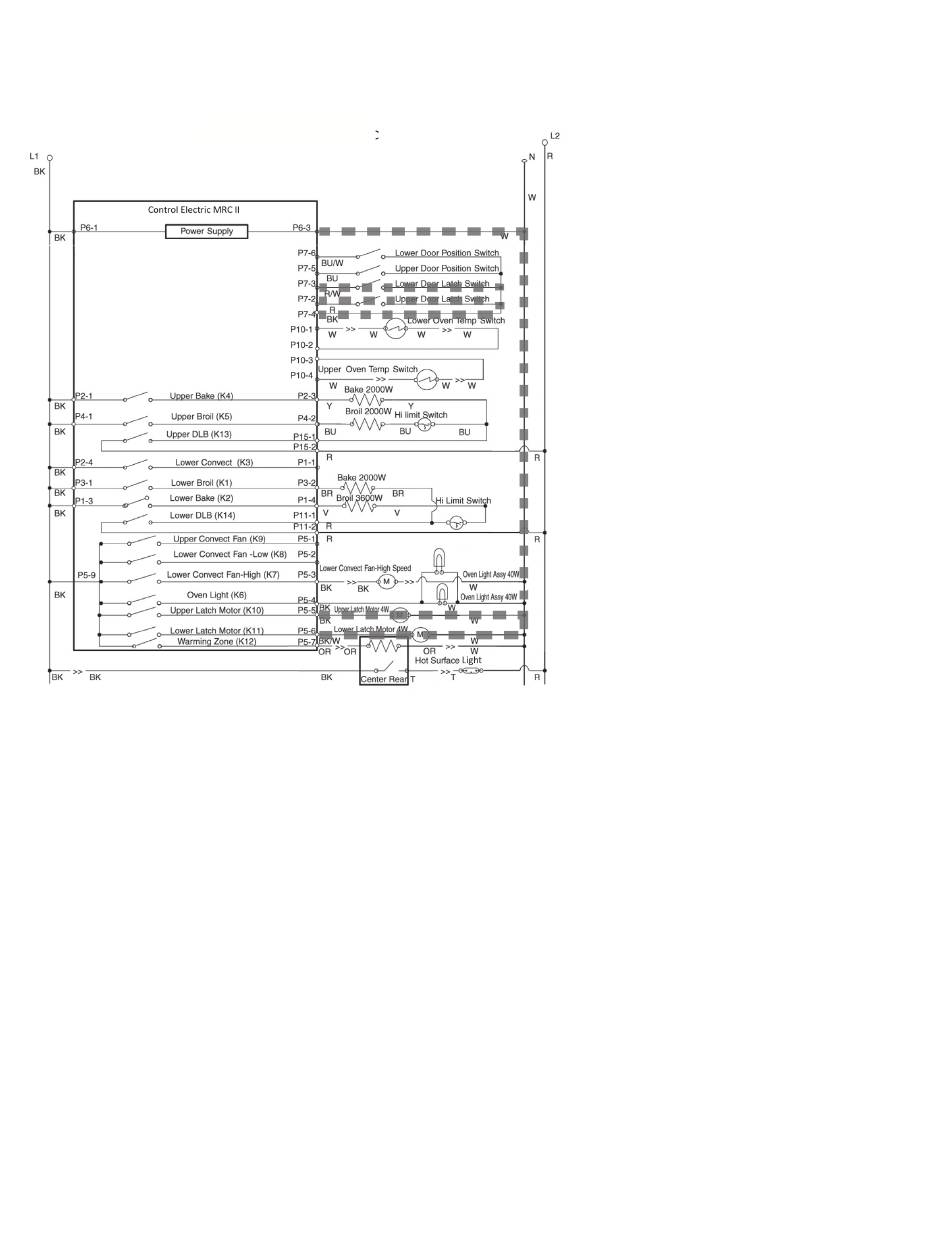

Upper Oven - P7-4 to P7-2
Lower Oven - P7-4 to P7-3
(Latch Switches)
• If no contunity - check for
500-3000Ω resistance at P5-6 to
P6-3 or P5-5 to P6-3 (Latch Motors)
• If resistance check fails - replace
Latch motor.
• If resistance check is good, check door
(slot) and latching rod alignment. If door
alignment is good - Replace Door Latch
Switch
• Run Diagnostic Mode and verify fault
code
• Unplug range or disconnect power
• Replace Control
• Check House power supply and verify
240VAC is available at the wall outlet.
3- 19
