Lcc180 Control, Standard Clean, Electric; Temperature Adjustment; Diagnostic Mode - Whirlpool AER5522VAS0 Manual

LCC Standard Clean, Electric (continued)

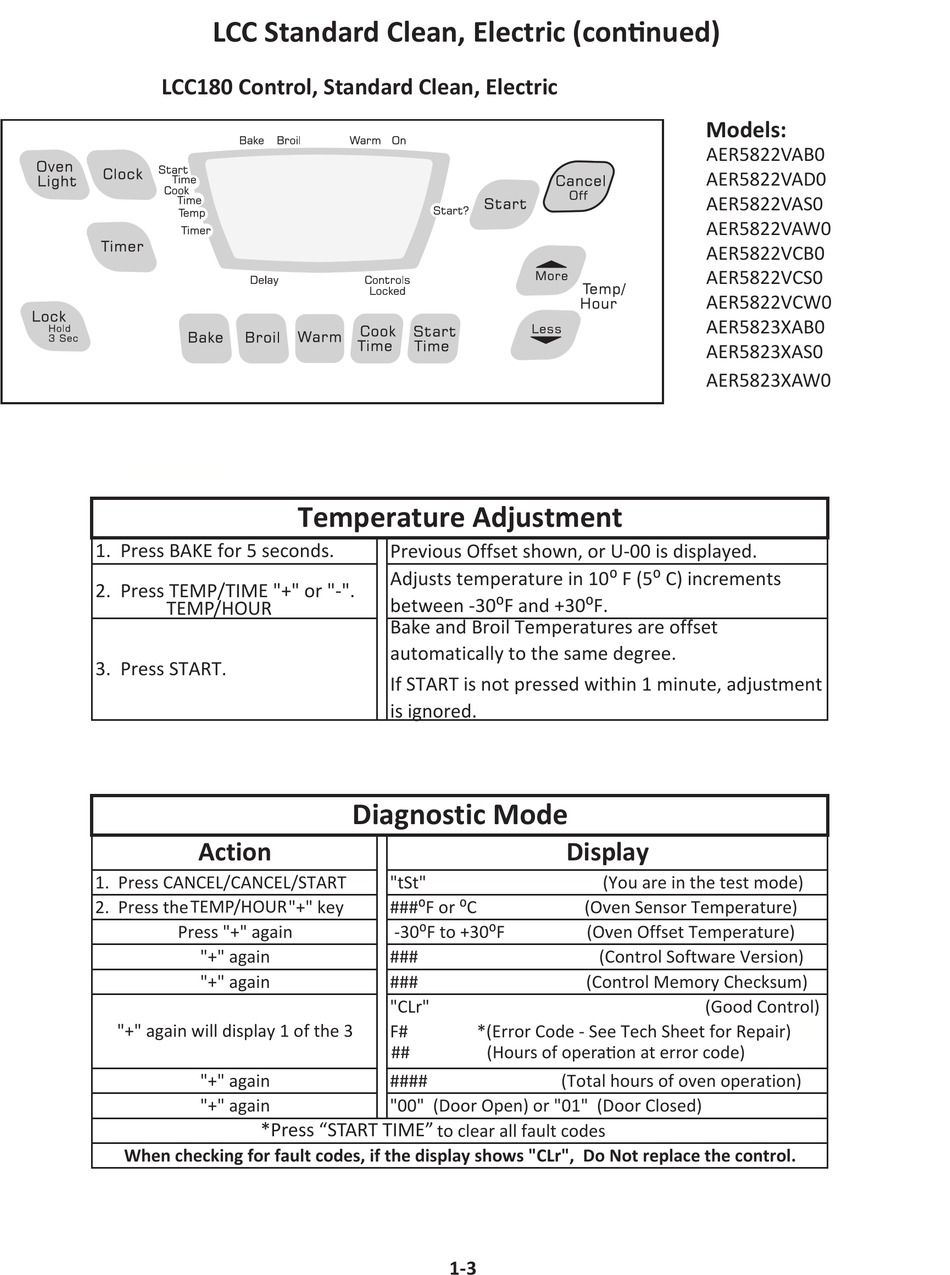

LCC180 Control, Standard Clean, Electric

1. Press BAKE for 5 seconds.
2. Press TEMP/TIME "+" or "-".
TEMP/HOUR
3. Press START.
Action
1. Press CANCEL/CANCEL/START
TEMP/HOUR
2. Press the TEMP/TIME "+" key
Press "+" again
"+" again
"+" again
"+" again will display 1 of the 3
"+" again
"+" again
*Press "START TIME"
When checking for fault codes, if the display shows "CLr", Do Not replace the control.

Temperature Adjustment

Previous Offset shown, or U-00 is displayed.
Adjusts temperature in 10⁰ F (5⁰ C) increments
between -30⁰F and +30⁰F.
Bake and Broil Temperatures are offset
automatically to the same degree.
If START is not pressed within 1 minute, adjustment
is ignored.

Diagnostic Mode

"tSt"
###⁰F or ⁰C
-30⁰F to +30⁰F
###
###
"CLr"
F# *(Error Code - See Tech Sheet for Repair) ##
##
(Hours of operation at error code)
####
"00" (Door Open) or "01" (Door Closed)
*Press "START" to clear all fault codes
1- 3
Display
(You are in the test mode)
(Oven Sensor Temperature)
(Oven Offset Temperature)
(Control Software Version)
(Control Memory Checksum)
(Hours of operation at error code)
(Total hours of oven operation)
Models:
AER5822VAB0
AER5822VAD0
AER5822VAS0
AER5822VAW0
AER5822VCB0
AER5822VCS0
AER5822VCW0
AER5823XAB0
AER5823XAS0
AER5823XAW0
(Good Control)
