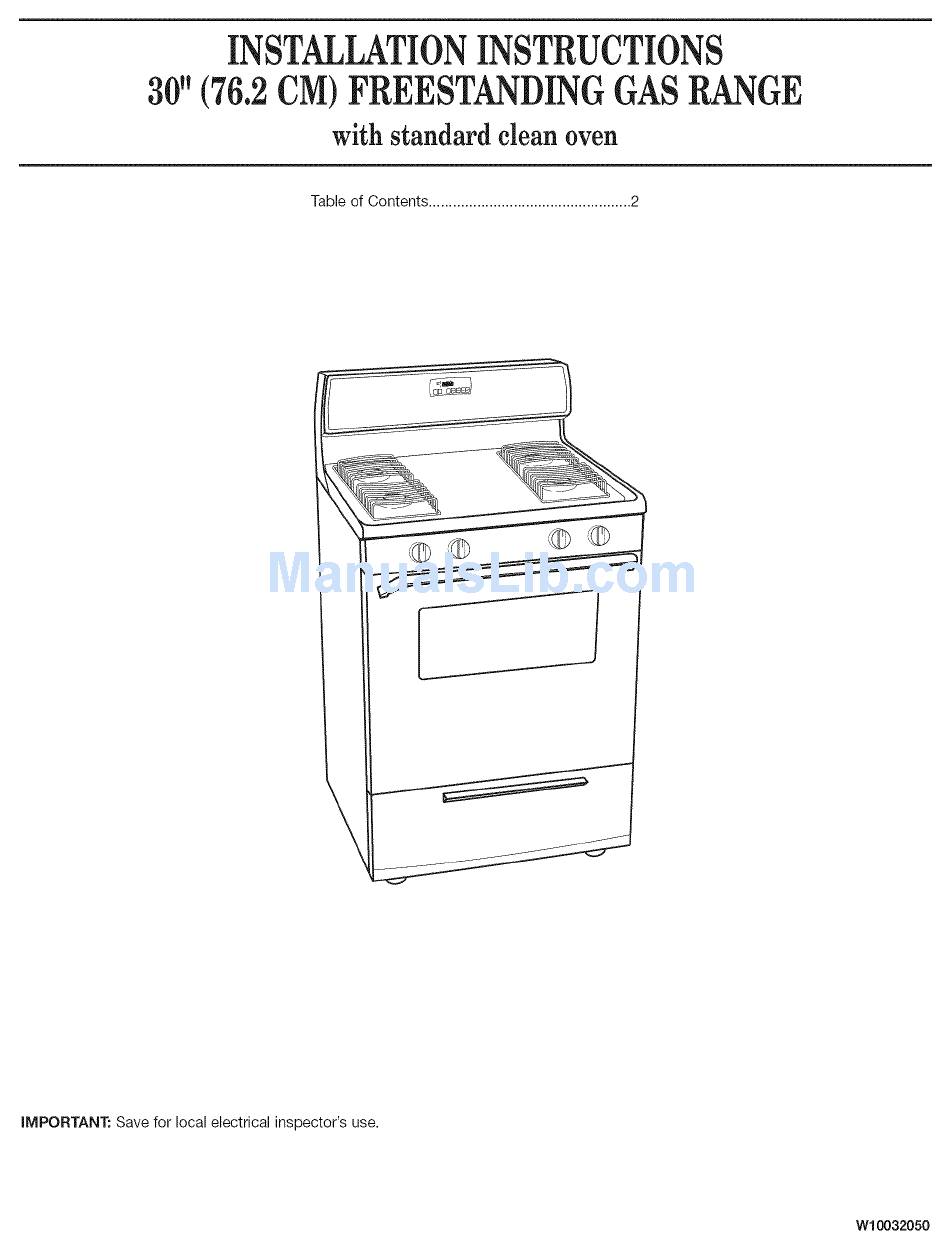

- Page 1 INSTALLATION INSTRUCTIONS 3(}"(76.2CM)FREESTANDINGGASRANGE with standard clean oven Table of Contents ..........2 IMPORTANT: Save for local electrical inspector's use. W10032050...
- Page 2 TABLEOF CONTENTS RANGE SAFETY ................iNSTALLATiON REQUIREMENTS ..........Tools and Parts ................Location Requirements .............. Electrical Requirements ............Gas Supply Requirements ............INSTALLATION INSTRUCTIONS ..........Unpack Range ................Install Anti-Tip Bracket .............. Verify Anti-Tip Bracket Location ..........9 Level Range ................Make Gas Connection ..............
- Page 3 WARNING: If the information in this manual is not followed e×actly, a fire or e×plosion may result causing property damage, personal injury or death. = Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 4 INSTALLATION REQUIREMENTS _MPORTANT: Observe all governing codes and ordinances. Do Gather the required tools and parts before starting installation. not obstruct flow of combustion and ventilation air. Read and follow the instructions provided with any tools listed here. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate.
- Page 5 installation Clearances Product Dimensions Cabinet opening dimensions shown are for 25" (64 cm) countertop depth, 24" (61 cm) base cabinet depth and 36" (91.4 cm) countertop height. If the cabinet depth is greater than 24" (61 cm), the oven frame must extend beyond cabinet fronts by 1/2"(13 mm) minimum.
- Page 6 Electrical Shock Hazard Explosion Hazard Plug into a grounded 3 prong outlet. Use a new CSA International approved gas supply line. Install a shut-off valve. Do not remove ground prong. Securely tighten all gas connections. Do not use an adapter. If connected to LP, have a qualified person make sure...
- Page 7 Flexible m etal a ppliance connector: Burner input Requirements [] Iflocal c odes p ermit, anew CSA design-certified, 4-5ft (122-152.4 cm)long, 1 /2" (1.3 cm) o r3/4" (1.9 cm) I .D., f lexible Input ratings shown on the model/serial rating plate are for metal appliance connector may beused forconnecting range elevations up to 2,000 ft (609.6 m).
- Page 8 INSTALLATION INSTRUCTIONS Before moving range, slide range onto shipping base, cardboard or hardboard. 1. Remove template from the anti-tip bracket kit (found inside the oven cavity). 2. Place template on the floor in the cabinet opening so that the Excessive Weight Hazard left edge is against the cabinet and the top edge is against the rear wall, molding or cabinet.
- Page 9 10. Adjust the leveling legs to the correct height. Leveling legs can be loosened to add up to a maximum of 1" (2.5 cm). A minimum of 3/16" (5 mm) is needed to engage the anti-tip Typical rigid pipe connection bracket.
- Page 10 Complete Connection 1. Locate gas pressure regulator in the broiler. Electronic Ignition System Cooktop and oven burners use electronic ignitors in place of standing pilots. When a cooktop control knob is turned to the "LITE" position, the system creates a spark to light the burner. This sparking continues until the control knob is turned to the desired setting.
- Page 11 3, Replace control knob. Locate the air shutter near the rear wall of oven and loosen the shutter screw. CheckOperation of Oven/Broil B urner 1, Open broiler door. x_C/ 2. Press t he"BAKE" pad. A. Shutterscrew [] The "BAKE" indicator will l ight. B.
- Page 12 GASCONVERSIONS Unplug or disconnect power. 2. 3. Open broiler door and remove broiler pan. The gas pressure regulator is located in the back right hand corner of the broiler compartment. Explosion Hazard Use a new CSA International approved gas supply line. Install a shut-off valve.
- Page 13 2. Locate LP gas orifice spuds for top burners in the bag To Convert Oven Burner containing literature included with the range. Three LP gas spuds are stamped "88" and one "96." 1. Open oven door and remove oven racks, oven tray, flame 3.
- Page 14 Turn the cap over so that N or NAT is visible. A. Cap 6. Reinstall the cap. Tip Over Hazard To Convert Surface Burners A child or adult can tip the range and be killed, Connect anti=tip bracket to rear range foot. 1.
- Page 15 Install natural gasorifice spuds. To Convert Oven Burner NOTE: Depending onmodel, therange c ooktop m ay be equipped with4 standard burners or3 standard burners and 1. Open oven door and remove oven racks, oven tray, flame 1 >ower burner. Spud size/location remain t hesame.
- Page 16 W10032050 Printed in Mexico @2006 Whirlpool Corporation 07/2006 All rights reserved.
