Endress+Hauser Proline Promass E 100 Manual

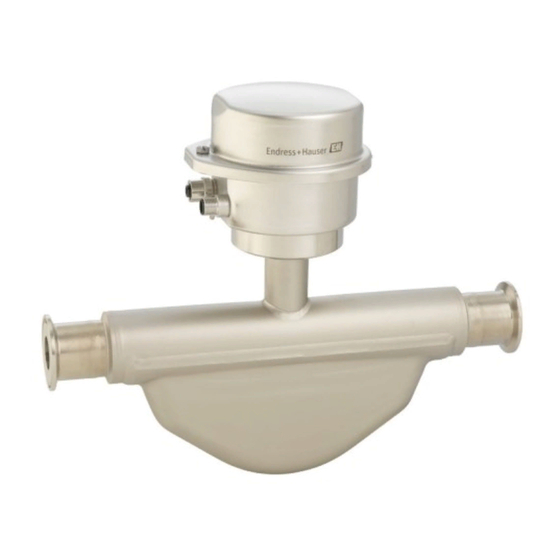

Coriolis flowmeter
Hide thumbs Also See for Proline Promass E 100:
Table of Contents

Advertisement

Quick Links

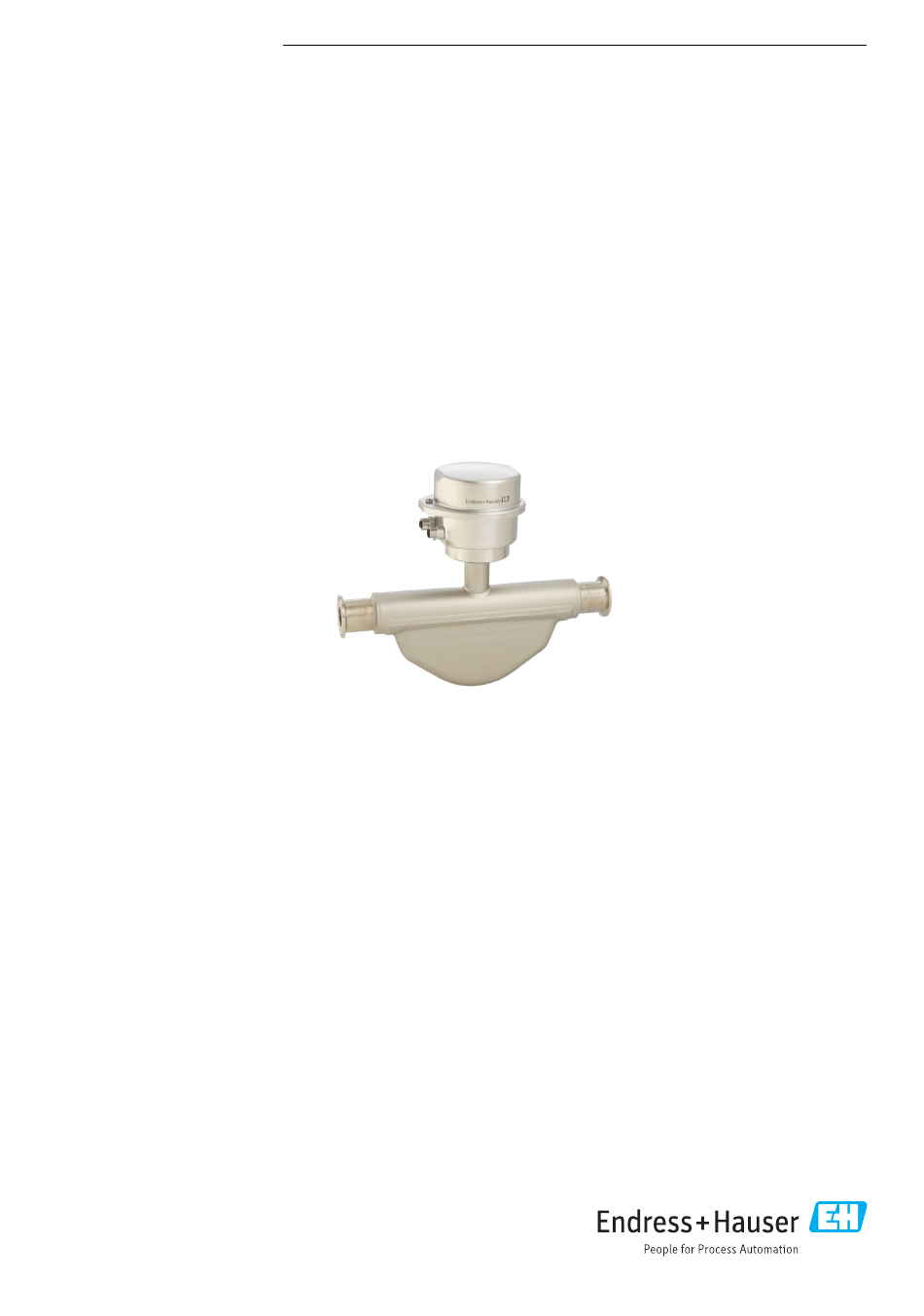

TI01351D/06/EN/02.18
71412496
2018-09-03
The flowmeter with minimum total cost of ownership and an ultra-compact
transmitter
Application
• Measuring principle operates independently of physical
fluid properties such as viscosity or density
• Accurate measurement of liquids and gases for a wide range
of standard applications
Device properties
• Compact dual-tube sensor
• Medium temperature up to +150 °C (+302 °F)
• Process pressure: up to 100 bar (1 450 psi)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69
• Local display available
Заказывайте на сайте: www.tinnova.ru/endress_hauser/ || Эл. почта: info@tinnova.ru
Products

Technical Information

Proline Promass E 100
Coriolis flowmeter
Solutions
Your benefits
• Cost-effective – multi-purpose device; an alternative to
conventional volumetric flowmeters
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no in/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promass E 100

Summary of Contents for Endress+Hauser Proline Promass E 100

  • Page 1: Technical Information

    Products Solutions Services TI01351D/06/EN/02.18 71412496 2018-09-03 Technical Information Proline Promass E 100 Coriolis flowmeter The flowmeter with minimum total cost of ownership and an ultra-compact transmitter Application Your benefits • Measuring principle operates independently of physical • Cost-effective – multi-purpose device; an alternative to...

  • Page 2: Table Of Contents

    Proline Promass E 100 Table of contents About this document ......Shock resistance ......48 Impact resistance .
  • Page 3 Proline Promass E 100 Supplementary documentation ....Standard documentation ......89 Supplementary device-dependent documentation .

  • Page 4: About This Document

    Proline Promass E 100 About this document Symbols used Electrical symbols Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

  • Page 5: Function And System Design

    Proline Promass E 100 Function and system design Measuring principle The measuring principle is based on the controlled generation of Coriolis forces. These forces are always present in a system when both translational and rotational movements are superimposed. = 2 · ∆m (ν · ω) = Coriolis force ∆m = moving mass...
  • Page 6 Proline Promass E 100 Transmitter Promass 100 Device versions and materials: • Compact, aluminum, coated: Aluminum, AlSi10Mg, coated • Compact, hygienic, stainless: Hygienic version, stainless steel 1.4301 (304) • Ultra-compact, hygienic, stainless: Hygienic version, stainless steel 1.4301 (304) A0016693 Configuration: •...

  • Page 7: Equipment Architecture

    Proline Promass E 100 Equipment architecture A0016779  1 Possibilities for integrating measuring devices into a system Control system (e.g. PLC) EtherNet/IP PROFIBUS DP PROFINET Modbus RS485 4-20 mA HART, pulse/frequency/switch output Safety Barrier Promass 100 Modbus RS485 intrinsically safe Non-hazardous area Non-hazardous area and Zone 2/Div.

  • Page 8: Input

    Proline Promass E 100 Input Measured variable Direct measured variables • Mass flow • Density • Temperature Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring ranges for liquids Measuring range full scale values ...

  • Page 9: Operable Flow Range

    Proline Promass E 100 Maximum possible full scale value:  =  · ρ : x = 70 000 kg/h · 60.3 kg/m³ : 125 kg/m³ = 33 800 kg/h max(G) max(F) Recommended measuring range "Flow limit" section →  53 Operable flow range Over 1000 : 1.

  • Page 10: Signal On Alarm

    Proline Promass E 100 Assignable measured • Mass flow variables • Volume flow • Corrected volume flow • Density • Reference density • Temperature  The range of options increases if the measuring device has one or more application packages.
  • Page 11 Proline Promass E 100 Current output 4 to 20 mA 4 to 20 mA Failure mode Choose from: • 4 to 20 mA in accordance with NAMUR recommendation NE 43 • 4 to 20 mA in accordance with US • Min. value: 3.59 mA •...

  • Page 12: Ex Connection Data

    Proline Promass E 100 Local display Plain text display With information on cause and remedial measures Backlight Red backlighting indicates a device error. Status signal as per NAMUR recommendation NE 107 Interface/protocol • Via digital communication: – HART protocol – PROFIBUS DP –...

  • Page 13: Low Flow Cut Off

    Proline Promass E 100 Intrinsically safe values Terminal numbers Supply voltage Signal transmission 20 (L-) 10 (L+) 62 (A) 72 (B) = 16.24 V = 623 mA = 2.45 W With IIC = 92.8 µH, C = 0.433 μF, L = 14.6 μH/Ω...
  • Page 14 Proline Promass E 100 Dynamic variables Read out the dynamic variables: HART command 3 The measured variables can be freely assigned to the dynamic variables. Measured variables for PV (primary dynamic variable) • Mass flow • Volume flow • Corrected volume flow •...
  • Page 15 Proline Promass E 100 Output values Analog input 1 to 8 (from measuring device to • Mass flow automation system) • Volume flow • Corrected volume flow • Target mass flow • Carrier mass flow • Density • Reference density •...
  • Page 16 Proline Promass E 100 Function codes • 03: Read holding register • 04: Read input register • 06: Write single registers • 08: Diagnostics • 16: Write multiple registers • 23: Read/write multiple registers Broadcast messages Supported by the following function codes: •...
  • Page 17 Proline Promass E 100 Fix Input 5 ms to 10 s (factory setting: 20 ms) Exclusive Owner Multicast Instance Size [byte] Instance configuration: 0x68 O → T configuration: 0x66 T → O configuration: 0x64 Exclusive Owner Multicast Instance Size [byte]...
  • Page 18 Proline Promass E 100 Configurable Input Assembly • Current device diagnostics • Mass flow • Volume flow • Corrected volume flow • Density • Reference density • Temperature • Totalizer 1 • Totalizer 2 • Totalizer 3  The range of options increases if the measuring device has one or more application packages.
  • Page 19 Proline Promass E 100 Cycle times From 8 ms Polarity Auto-polarity for automatic correction of crossed TxD and RxD pairs Supported connections • 1 x AR (Application Relation) • 1 x Input CR (Communication Relation) • 1 x Output CR (Communication Relation) •...
  • Page 20 Proline Promass E 100 Input values Analog Output module (fixed assignment) (from automation system to • External pressure (slot 18) measuring device) • External temperature (slot 19) • External reference density (slot 20) Discrete Output module (fixed assignment) • Activate/deactivate positive zero return (slot 21) •...
  • Page 21 Proline Promass E 100 Input/output value Process variable Category Slot Oscillation frequency 1 Oscillation amplitude 0 Oscillation amplitude 1 Frequency fluctuation 1 Tube damping fluctuation 1 Exciter current 1 Input value External density Process monitoring External temperature External reference density...
  • Page 22 Proline Promass E 100 Startup configuration Startup configuration If startup configuration is enabled, the configuration of the most important (NSU) device parameters is taken from the automation system and used. The following configuration is taken from the automation system: • Management –...

  • Page 23: Power Supply

    Proline Promass E 100 Power supply Terminal assignment Overview: housing version and connection versions 1.1 1.2 1.3 2.1 2.2 A0016770 Housing version: compact, aluminum coated Housing version: compact, hygienic, stainless Housing version: ultra-compact, hygienic, stainless Connection version: 4-20 mA HART, pulse/frequency/switch output 1.1 Signal transmission: pulse/frequency/switch output...
  • Page 24 Proline Promass E 100 Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code Possible options for order code Power "Housing" "Electrical connection" Outputs supply Options Terminals Terminals • Option A: coupling M20x1 A, B •...
  • Page 25 Proline Promass E 100 PROFIBUS DP connection version For use in the non-hazardous area and Zone 2/Div. 2 Order code for "Output", option L Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available...
  • Page 26 Proline Promass E 100 Modbus RS485 connection version For use in the non-hazardous area and Zone 2/Div. 2 Order code for "Output", option M Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available...
  • Page 27 Proline Promass E 100 Modbus RS485 connection version For use in the intrinsically safe area. Connection via Safety Barrier Promass 100. Order code for "Output", option M Depending on the housing version, the transmitters can be ordered with terminals or device plugs.
  • Page 28 Proline Promass E 100 EtherNet/IP connection version Order code for "Output", option N Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code Possible options for order code Power "Housing"...
  • Page 29 Proline Promass E 100 PROFINET connection version Order code for "Output", option R Depending on the housing version, the transmitters can be ordered with terminals or device plugs. Connection methods available Order code for Possible options for order code Power "Housing"...

  • Page 30: Pin Assignment, Device Plug

    Proline Promass E 100 Safety Barrier Promass 100 Power Modbus supply RS485 Safe area Power Lift panel for bus termination Communication Safety Barrier Promass 100 Hazardous area Power Modbus supply RS485 A0030220  8 Safety Barrier Promass 100 with terminals...
  • Page 31 Proline Promass E 100 4-20 mA HART with pulse/frequency/switch output Device plug for signal transmission (device side) Assignment 4-20 mA HART (active) 4-20 mA HART (active) Pulse/frequency/switch output (passive) Pulse/frequency/switch output (passive) Grounding/shielding A0016810 Coding Plug/socket Socket  • Recommended plug: Binder, series 763, part no. 79 3439 12 05 •...
  • Page 32 Proline Promass E 100 Device plug for signal transmission (device side), MODBUS RS485 (not intrinsically safe) For use in the non-hazardous area and Zone 2/Div. 2. Assignment Not assigned Modbus RS485 Not assigned Modbus RS485 Grounding/shielding A0016811 Coding Plug/socket Socket ...

  • Page 33: Power Consumption

    Proline Promass E 100 Transmitter For device version with communication type: • HART, PROFIBUS DP, EtherNet/IP: DC 20 to 30 V • Modbus RS485, device version: – For use in the non-hazardous area and Zone 2/Div. 2: DC 20 to 30 V –...

  • Page 34: Electrical Connection

    Proline Promass E 100 Electrical connection Connecting the transmitter A0016924 Housing version: compact, aluminum coated Housing version: compact hygienic, stainless Cable entry or device plug for signal transmission Cable entry or device plug for supply voltage Housing version: ultra-compact, hygienic, stainless, M12 device plug...
  • Page 35 Proline Promass E 100 4...20 mA A0028762  10 Connection example for 4 to 20 mA HART current output (passive) Automation system with current input (e.g. PLC) Power supply Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable specifications →...
  • Page 36 Proline Promass E 100 PROFIBUS DP A0028765  13 Connection example for PROFIBUS DP, non-hazardous area and Zone 2/Div. 2 Control system (e.g. PLC) Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements; observe cable...
  • Page 37 Proline Promass E 100 Modbus RS485 intrinsically safe L- L+ A0028766  15 Connection example for Modbus RS485 intrinsically safe Control system (e.g. PLC) Cable shield, observe cable specifications Safety Barrier Promass 100 Observe cable specifications Non-hazardous area Non-hazardous area and Zone 2/Div. 2...
  • Page 38 Proline Promass E 100 PROFINET A0016805  17 Connection example for PROFINET Control system (e.g. PLC) Ethernet switch Observe cable specifications Device plug Transmitter HART input 4...20 mA A0019828  18 Connection example for HART input (burst mode) via current output (active) Cable shield, observe cable specifications Resistor for HART communication (≥...

  • Page 39: Potential Equalization

    Proline Promass E 100 4...20 mA 4...20 mA A0019830  19 Connection example for HART input (master mode) via current output (active) Automation system with current input (e.g. PLC). Prerequisite: automation system with HART version 6, HART commands 113 and 114 can be processed.
  • Page 40 Proline Promass E 100 PROFIBUS DP The IEC 61158 standard specifies two types of cable (A and B) for the bus line which can be used for every transmission rate. Cable type A is recommended. Cable type Characteristic impedance 135 to 165 Ω at a measuring frequency of 3 to 20 MHz Cable capacitance <...

  • Page 41: Performance Characteristics

    Proline Promass E 100 The maximum cable length for individual wire cross-sections is specified in the table below. Observe the maximum capacitance and inductance per unit length of the cable and connection values for hazardous areas . Wire cross-section Maximum cable length...
  • Page 42 Proline Promass E 100 Zero point stability Zero point stability [mm] [in] [kg/h] [lb/min] ³⁄₈ 0.20 0.007 ½ 0.65 0.024 1.80 0.066 1½ 4.50 0.165 0.257 18.0 0.6615 Flow values Flow values as turndown parameter depending on nominal diameter. SI units...

  • Page 43: Repeatability

    Proline Promass E 100 Accuracy Max. ±50 ppm o.r. (over the entire ambient temperature range) Repeatability o.r. = of reading; 1 g/cm = 1 kg/l; T = medium temperature Base repeatability Design fundamentals →  44 Mass flow and volume flow (liquids) ±0.075 % o.r.

  • Page 44: Influence Of Medium Pressure

    Proline Promass E 100 [kg/m ] [°C] 40 80 120 160 200 240 280 320 [°F] -40 0 A0016609  20 Field density calibration, for example at +20 °C (+68 °F) Temperature ±0.005 · T °C (± 0.005 · (T – 32) °F)

  • Page 45: Installation

    Proline Promass E 100 Calculation of the maximum repeatability as a function of the flow rate Flow rate Maximum repeatability in % o.r. ⋅ ½ ZeroPoint ⋅ ³ BaseRepeat A0021340 A0021335 ⋅ ½ ZeroPoint ZeroPoint ⋅ ⋅ ⋅ < ±...

  • Page 46: Orientation

    Proline Promass E 100 A0028773  21 Installation in a down pipe (e.g. for batching applications) Supply tank Sensor Orifice plate, pipe restriction Valve Batching tank Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 0.55 1½...

  • Page 47: Inlet And Outlet Runs

    Proline Promass E 100 If a sensor is installed horizontally with a curved measuring tube, match the position of the sensor to the fluid properties. A0028774  22 Orientation of sensor with curved measuring tube Avoid this orientation for fluids with entrained solids: Risk of solids accumulating.

  • Page 48: Mounting Safety Barrier Promass 100

    Proline Promass E 100 Mounting Safety Barrier > 22.5 > 22.5 Promass 100 (> 0.89) (> 0.89) A0016894  23 Minimum distance between additional Safety Barrier Promass 100 or other modules.Engineering unit mm (in) Environment Ambient temperature range Measuring device •...

  • Page 49: Interior Cleaning

    Proline Promass E 100 Interior cleaning • Cleaning in place (CIP) • Sterilization in place (SIP) Options Oil- and grease-free version for wetted parts, without declaration Order code for "Service", option HA Electromagnetic • Depends on the communication protocol: compatibility (EMC) –...

  • Page 50: Pressure-Temperature Curves

    Proline Promass E 100 Pressure-temperature curves The following pressure/temperature diagrams apply to all pressure-bearing parts of the device and not just the process connection. The diagrams show the maximum permissible medium pressure depending on the specific medium temperature. Flange according to EN 1092-1 (DIN 2501)
  • Page 51 Proline Promass E 100 Flange JIS B2220 [psi] [bar] 1000 [°C] [°F] A0029834-EN  27 With flange material 1.4404 (F316/F316L) Flange DIN 11864-2 Form A [psi] [bar] DN 8…40 ≥ DN 50 [°C] [°F] A0029839-EN  28 With flange material 1.4404 (316/316L)
  • Page 52 Proline Promass E 100 Thread DIN 11864-1 Form A [psi] [bar] DN 8…40 ≥ DN 50 [°C] [°F] A0029848-EN  30 With connection material 1.4404 (316/316L) Thread ISO 2853 [psi] [bar] [°C] [°F] A0029853-EN  31 With connection material 1.4404 (316/316L)

  • Page 53: Secondary Containment

    Proline Promass E 100 Tri-Clamp [psi] [bar] [°C] [°F] A0032218-EN The clamp connections are suitable up to a maximum pressure of 16 bar (232 psi). Please observe the operating limits of the clamp and seal used as they can be over 16 bar (232 psi). The clamp and seal are not included in the scope of supply.

  • Page 54: Thermal Insulation

    • Electrical heating, e.g. with electric band heaters • Via pipes carrying hot water or steam • Via heating jackets Heating jackets for the sensors can be ordered as accessories from Endress+Hauser .→  87 NOTICE Danger of overheating when heating ‣...

  • Page 55: Mechanical Construction

    Proline Promass E 100 Mechanical construction Dimensions in SI units Compact version Order code for "Housing", option A "Compact coated aluminum" A0033787 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 147.5 93.5 89.1 177.1 266.2 5.35 44.9 147.5...
  • Page 56 Proline Promass E 100 Order code for "Housing", option B "Compact hygienic, stainless" A0033787 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 136.8 58.8 89.1 172.5 261.6 133.5 5.35 44.9 136.8 58.8 100.1 172.5 272.6 133.5 8.30 44.9...
  • Page 57 Proline Promass E 100 Order code for "Housing", option C "Ultra-compact hygienic, stainless" A0033787 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 123.6 67.7 55.9 89.1 172.3 261.4 111.4 5.35 44.9 123.6 67.7 55.9 100.1 172.3 272.4 111.4...
  • Page 58 Proline Promass E 100 Flange connections Fixed flange EN 1092-1, ASME B16.5, JIS B2220 A0015621 Length tolerance for dimension L in mm: +1.5 / –2.0 Flange according to EN 1092-1 (DIN 2501 / DIN 2512N), PN 40 1.4404 (F316/F316L): order code for "Process connection", option D2S Flange with groove according to EN 1092-1 Form D (DIN 2512N), PN 40 1.4404 (F316/F316L): order code for "Process connection", option D6S...
  • Page 59 Proline Promass E 100 Flange according to EN 1092-1 (DIN 2501 / DIN 2512N), PN 63 1.4404 (F316/F316L): order code for "Process connection", option D3S Flange with groove according to EN 1092-1 Form D (DIN 2512N), PN 63 1.4404 (F316/F316L): order code for "Process connection", option D7S...
  • Page 60 Proline Promass E 100 Flange according to ASME B16.5, Class 300 1.4404 (F316/F316L) Order code for "Process connection", option ABS [mm] [mm] [mm] [mm] [mm] [mm] [mm] 88.9 4 × Ø19.0 17.5 26.7 114.3 4 × Ø22.3 20.6 40.9 8 × Ø19.0 22.3...
  • Page 61 Proline Promass E 100 Flange JIS B2220, 20K 1.4404 (F316/F316L) Order code for "Process connection", option NES [mm] [mm] [mm] [mm] [mm] [mm] [mm] 8 × Ø23 Surface roughness (flange): Ra 3.2 to 6.3 µm DN 8 with DN 15 flanges as standard Flange JIS B2220, 40K 1.4404 (F316/F316L)
  • Page 62 Proline Promass E 100 Fixed flange DIN 11864-2 A0015627  35 Detail X: Asymmetrical process connection; the part shown in blue is provided by the supplier. Length tolerance for dimension L in mm: +1.5 / –2.0 Flange DIN11864-2 Form A, for pipe according to DIN11866 series A, flange with notch 1.4404 (316/316L)
  • Page 63 Proline Promass E 100 Clamp connections Tri-Clamp A0015625 Length tolerance for dimension L in mm: +1.5 / –2.0 Tri-Clamp (½") 1.4404 (316/316L) Order code for "Process connection", option FDW Clamp [mm] [in] [mm] [mm] [mm] ½ 25.0 ½ 25.0 3-A version available: order code for "Additional approval", option LP in conjunction with Ra ≤...
  • Page 64 Proline Promass E 100 Threaded couplings Thread DIN 11851, DIN11864-1, SMS 1145 A0015628 Length tolerance for dimension L in mm: +1.5 / –2.0 Thread DIN 11851, for pipe according to DIN11866, series A 1.4404 (316/316L) Order code for "Process connection", option FMW...
  • Page 65 Proline Promass E 100 Thread SMS 1145 1.4404 (316/316L) Order code for "Process connection", option SCS [mm] [in] [mm] [mm] Rd 40 × ¹⁄₆ 22.5 Rd 40 × ¹⁄₆ 22.5 Rd 40 × ¹⁄₆ 22.5 Rd 60 × ¹⁄₆ 35.5 Rd 70 ×...
  • Page 66 Proline Promass E 100 Thread ISO 2853 A0015623 Length tolerance for dimension L in mm: +1.5 / –2.0 Thread ISO 2853, for pipe according to ISO 2037 1.4404 (316/316L) Order code for "Process connection", option JSF [mm] [mm] [mm] [mm] 37.13...
  • Page 67 Proline Promass E 100 A0015624 Length tolerance for dimension L in mm: +1.5 / –2.0 8-VCO-4 (½") 1.4404 (316/316L) Order code for "Process connection", option CVS [mm] [in] [mm] [mm] AF 1 10.2 12-VCO-4 (¾") 1.4404 (316/316L) Order code for "Process connection", option CWS...

  • Page 68: Dimensions In Us Units

    Proline Promass E 100 Dimensions in US units Compact version Order code for "Housing", option A "Compact coated aluminum" A0033787 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 5.81 3.68 2.13 3.66 7.05 10.71 5.35 0.21 1.77...
  • Page 69 Proline Promass E 100 Order code for "Housing", option B "Compact hygienic, stainless" A0033787 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 5.39 3.07 2.31 3.66 6.85 10.51 5.26 0.21 1.77 ½ 5.39 3.07 2.31 4.13 6.93...
  • Page 70 Proline Promass E 100 Order code for "Housing", option C "Ultra-compact hygienic, stainless" A0033787 [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 4.87 2.67 3.66 6.85 10.51 4.39 0.21 1.77 ½ 4.87 2.67 4.13 6.93 11.06 4.39...
  • Page 71 Proline Promass E 100 Flange connections Fixed flange ASME B16.5 A0015621 Length tolerance for dimension L in inch: +0.06 / –0.08 Flange according to ASME B16.5, Cl 150 1.4404 (F316/F316L) Order code for "Process connection", option AAS [in] [in] [in]...
  • Page 72 Proline Promass E 100 Flange according to ASME B16.5, Class 600 1.4404 (F316/F316L) Order code for "Process connection", option ACS [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 3.74 2.63 4 × Ø0.62 0.81 0.55 10.28 ½ 3.74 2.63 4 × Ø0.62 0.81...
  • Page 73 Proline Promass E 100 Clamp connections Tri-Clamp A0015625 Length tolerance for dimension L in inch: +0.06 / –0.08 Tri-Clamp (½") 1.4404 (316/316L) Order code for "Process connection", option FDW Clamp [in] [in] [in] [in] [in] ³⁄₈ ½ 0.98 0.37 9.02 ½...
  • Page 74 Proline Promass E 100 Threaded couplings Thread SMS 1145 A0015628 Length tolerance for dimension L in inch: +0.06 / –0.08 Thread SMS 1145 1.4404 (316/316L) Order code for "Process connection", option SCS [in] [in] [in] [in] ³⁄₈ Rd 40 × ¹⁄₆...
  • Page 75 Proline Promass E 100 A0015624 Length tolerance for dimension L in inch: +0.06 / –0.08 8-VCO-4 (½") 1.4404 (316/316L) Order code for "Process connection", option CVS [in] [in] [in] [in] ³⁄₈ AF 1 0.40 9.92 12-VCO-4 (¾") 1.4404 (316/316L) Order code for "Process connection", option CWS...

  • Page 76: Weight

    Proline Promass E 100 Weight All values (weight exclusive of packaging material) refer to devices with EN/DIN PN 40 flanges. Weight specifications including transmitter: order code for "Housing", option A "Compact, aluminum coated". Different values due to different transmitter versions:...
  • Page 77 Proline Promass E 100 Cable entries/cable glands A0020640  36 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with internal thread G ½" or NPT ½" Order code for "Housing", option A "Compact, coated aluminum"...

  • Page 78: Process Connections

    Proline Promass E 100 Process connections • Flanges according to EN 1092-1 (DIN2501) / according to ASME B 16.5 / as per JIS B2220: Stainless steel, 1.4404 (F316/F316L) • All other process connections: Stainless steel, 1.4404 (316/316L) List of all available process connections →  78...

  • Page 79: Local Display

    Proline Promass E 100 Reliable operation • Operation in the following languages: – Via "FieldCare", "DeviceCare" operating tool: English, German, French, Spanish, Italian, Chinese, Japanese – Via integrated Web browser(only available for device versions with HART, PROFIBUS DP, PROFINET and EtherNet/IP):...
  • Page 80 Proline Promass E 100 A0020903  38 Options for remote operation via PROFIBUS DP network Automation system Computer with PROFIBUS network card PROFIBUS DP network Measuring device Via EtherNet/IP network This communication interface is available in device versions with EtherNet/IP.

  • Page 81: Service Interface

    Proline Promass E 100 Star topology A0026545  40 Options for remote operation via PROFINET network: star topology Automation system, e.g. Simatic S7 (Siemens) Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or computer with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"...
  • Page 82 Proline Promass E 100 PROFIBUS DP A0021270  42 Connection for order code for "Output", option L: PROFIBUS DP Service interface (CDI -RJ45) of the measuring device with access to the integrated Web server Computer with Web browser (e.g. Internet Explorer) for accessing the integrated device Web server or with "FieldCare"...

  • Page 83: Certificates And Approvals

    Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 84: Ex Approval

    "Safety Instructions" (XA) document. Reference is made to this document on the nameplate. The separate Ex documentation (XA) containing all the relevant explosion protection data is available from your Endress+Hauser sales center. ATEX/IECEx Currently, the following versions for use in hazardous areas are available:...

  • Page 85: Certification Profinet

    Directive equal to DN 25 (1"), this is neither possible nor necessary. • With the identification PED/G1/x (x = category) on the sensor nameplate, Endress+Hauser confirms conformity with the "Essential Safety Requirements" specified in Appendix I of the Pressure Equipment Directive 2014/68/EC.

  • Page 86: Ordering Information

    The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 87: Concentration

    The measured values are output via the digital and analog outputs of the device. Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.

  • Page 88: Service-Specific Accessories

    Tool for connecting and configuring Endress+Hauser field devices.  For details, see Innovation brochure IN01047S Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop.  For details, see "Technical Information" TI00405C...

  • Page 89: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Standard documentation...

  • Page 90: Registered Trademarks

    Proline Promass E 100 Content Documentation code Concentration measurement SD01152D Concentration measurement SD01503D Heartbeat Technology SD01153D Heartbeat Technology SD01493D Web server SD01820D Web server SD01821D Web server SD01822D Web server SD01823D Installation Instructions Contents Comment Installation instructions for spare part sets and accessories Documentation code: specified for each individual accessory .
