Data Manager
Properties dialog box selections include:
Grid Lines—when selected, a line displays at each major division of the
•
graphs.
Display Item—use to view the display color of the listed items. Highlight an
•
item and the current color appears in the Color box.
Change—use to change the color of the highlighted item, select to open a color
•
palate.
Sweep—use to adjust the number of data frames that appear on the screen
•
(zoom in or out), highlight and type in the desired number.
Reset Colors—use to restore the default color settings.
•
Data Item—use this pulldown menu to select individual graphs for modification.
•
Auto Scale—minimum and maximum (Y axis) values automatically adjust to
•
the signal when the box is checked, uncheck the box if you want to custom set
the values.
Y Axis Range—use to type desired minimum (from) and maximum (to) values
•
in the selection boxes. This field is only active when Auto Scale is deselected.
OK—applies the changes and closes the properties dialog box.
•
Cancel—closes the properties dialog box without making changes.
•
Apply—applies the changes and leaves the properties dialog box open.
•
NOTE
The Properties icon on each graph also opens the Properties dialog box
(Figure 11-7).
Help Menu
The Help menu provides Scanner Viewer software version information.

11.16.2 Display Toolbar

The Display toolbar provides the following controls
Exit—closes Scanner DataViewer.
•
Hide PID List—toggles display between parameter text and graph views.
•
Display Views (1 to 16)—determines how many graphs display at a time.
•
Scale—switches the scale values shown to the left of the graph off and on.
•
Sweep—switches the sweep values shown below the graph off and on.
•
167
(Figure
11-12).

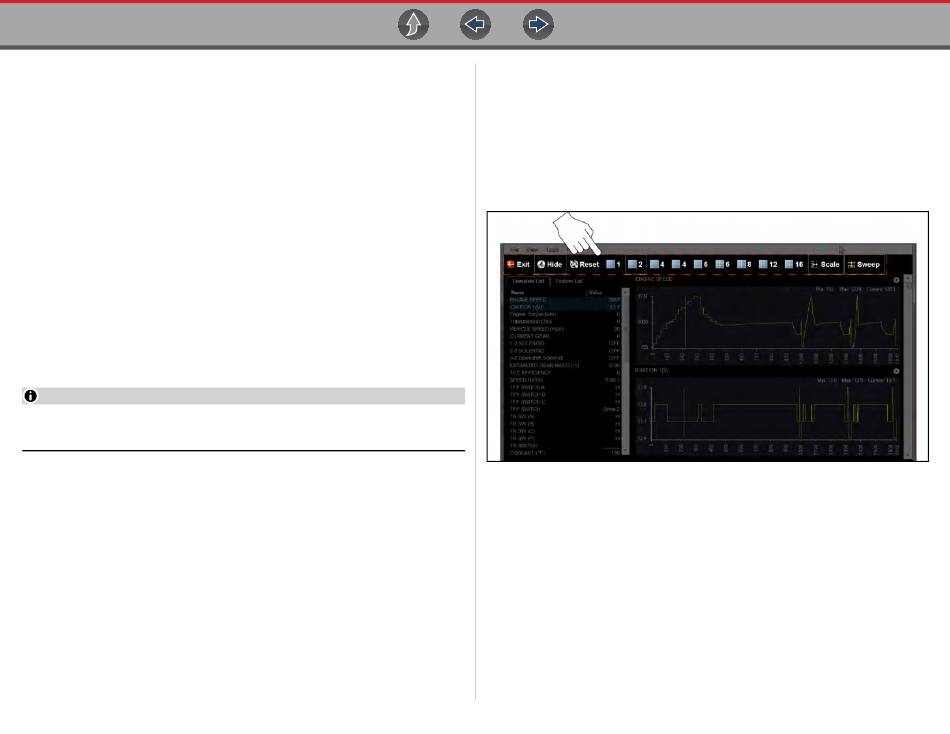

Figure 11-12 Display toolbar
Scanner DataViewer
