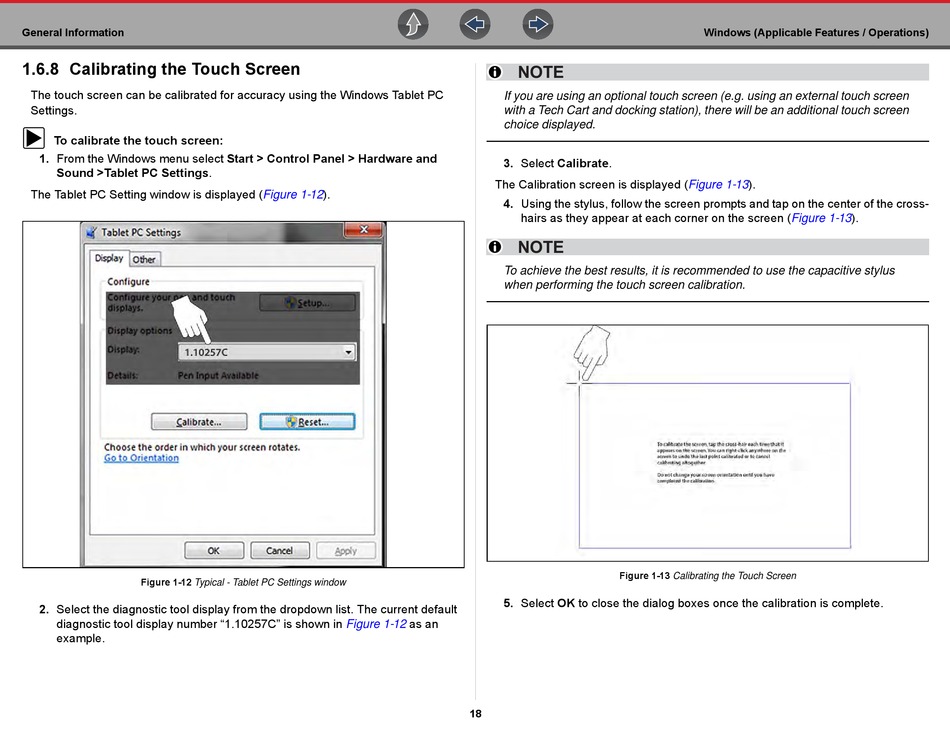

1.6.8 Calibrating the Touch Screen

The touch screen can be calibrated for accuracy using the Windows Tablet PC
Settings.
z
To calibrate the touch screen:
1. From the Windows menu select Start > Control Panel > Hardware and
Sound >Tablet PC Settings.
The Tablet PC Setting window is displayed
Figure 1-12 Typical - Tablet PC Settings window
2. Select the diagnostic tool display from the dropdown list. The current default
diagnostic tool display number "1.10257C" is shown in
example.
(Figure
1-12).
as an
Figure 1-12
NOTE
If you are using an optional touch screen (e.g. using an external touch screen
with a Tech Cart and docking station), there will be an additional touch screen
choice displayed.
3. Select Calibrate.
The Calibration screen is displayed
4. Using the stylus, follow the screen prompts and tap on the center of the cross-
hairs as they appear at each corner on the screen
NOTE
To achieve the best results, it is recommended to use the capacitive stylus
when performing the touch screen calibration.
Figure 1-13 Calibrating the Touch Screen
5. Select OK to close the dialog boxes once the calibration is complete.
