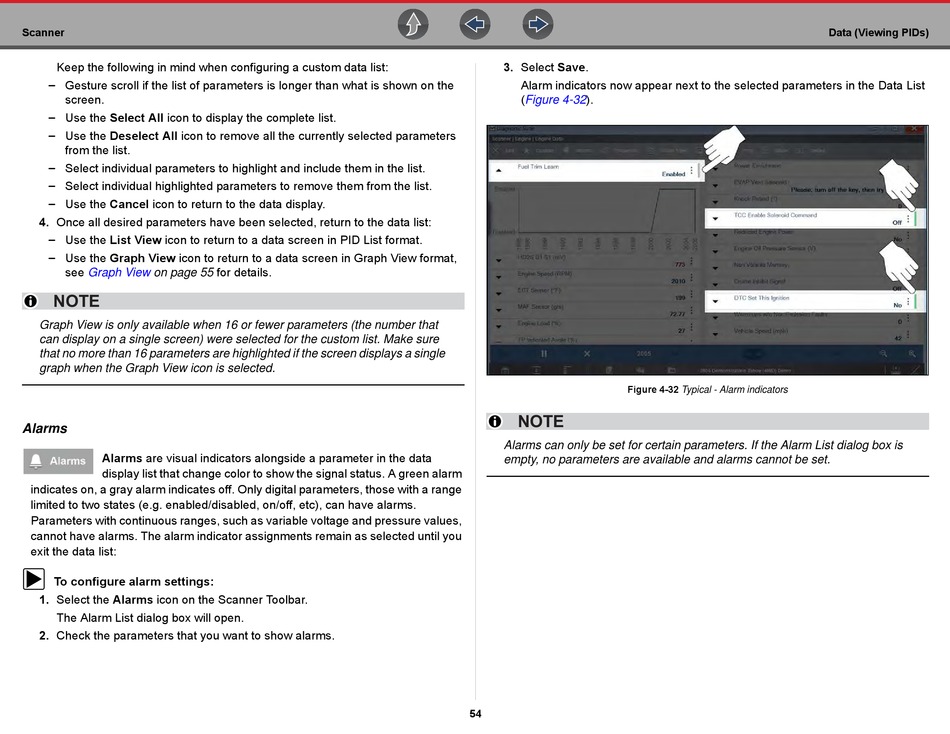

Scanner
Keep the following in mind when configuring a custom data list:
Gesture scroll if the list of parameters is longer than what is shown on the
–
screen.
Use the Select All icon to display the complete list.
–
Use the Deselect All icon to remove all the currently selected parameters
–
from the list.
Select individual parameters to highlight and include them in the list.
–
Select individual highlighted parameters to remove them from the list.
–
Use the Cancel icon to return to the data display.
–
4. Once all desired parameters have been selected, return to the data list:
Use the List View icon to return to a data screen in PID List format.
–
Use the Graph View icon to return to a data screen in Graph View format,
–
see on page 55 for details.
Graph View
NOTE
Graph View is only available when 16 or fewer parameters (the number that
can display on a single screen) were selected for the custom list. Make sure
that no more than 16 parameters are highlighted if the screen displays a single
graph when the Graph View icon is selected.
Alarms
Alarms are visual indicators alongside a parameter in the data
display list that change color to show the signal status. A green alarm
indicates on, a gray alarm indicates off. Only digital parameters, those with a range
limited to two states (e.g. enabled/disabled, on/off, etc), can have alarms.
Parameters with continuous ranges, such as variable voltage and pressure values,
cannot have alarms. The alarm indicator assignments remain as selected until you
exit the data list:
z
To configure alarm settings:
1. Select the Alarms icon on the Scanner Toolbar.
The Alarm List dialog box will open.
2. Check the parameters that you want to show alarms.
3. Select Save.
Alarm indicators now appear next to the selected parameters in the Data List
(Figure
4-32).
Figure 4-32 Typical - Alarm indicators
NOTE
Alarms can only be set for certain parameters. If the Alarm List dialog box is
empty, no parameters are available and alarms cannot be set.
54
Data (Viewing PIDs)
