Scope and Multimeter Operations
8.58 Technical Specifications
(Scope Module)
Item
USB Power 5V @ 500mA (supplied by diagnostic tool)
Agency Approval - Rating IEC 61010-1, UL Listed 61010-1 - Category 1
Width 6.3 in. (160 mm)
Height 4.6 in. (118 mm)
Depth 1.1 in. (28 mm)
Weight 0.62 lb (0.28 kg)
Operating Temperature At 0 to 90% relative humidity (non-condensing)
Range (ambient) 32 to 113°F (0 to 45°C)
Storage Temperature At 0 to 70% relative humidity (non-condensing)
(ambient) –4 to 140°F (–20 to 60°C)
Operating Altitude Maximum 2000 m
This product is intended for indoor use only
Environmental Conditions
This product is rated for Pollution Degree 2 (normal
conditions)
Description / Specification

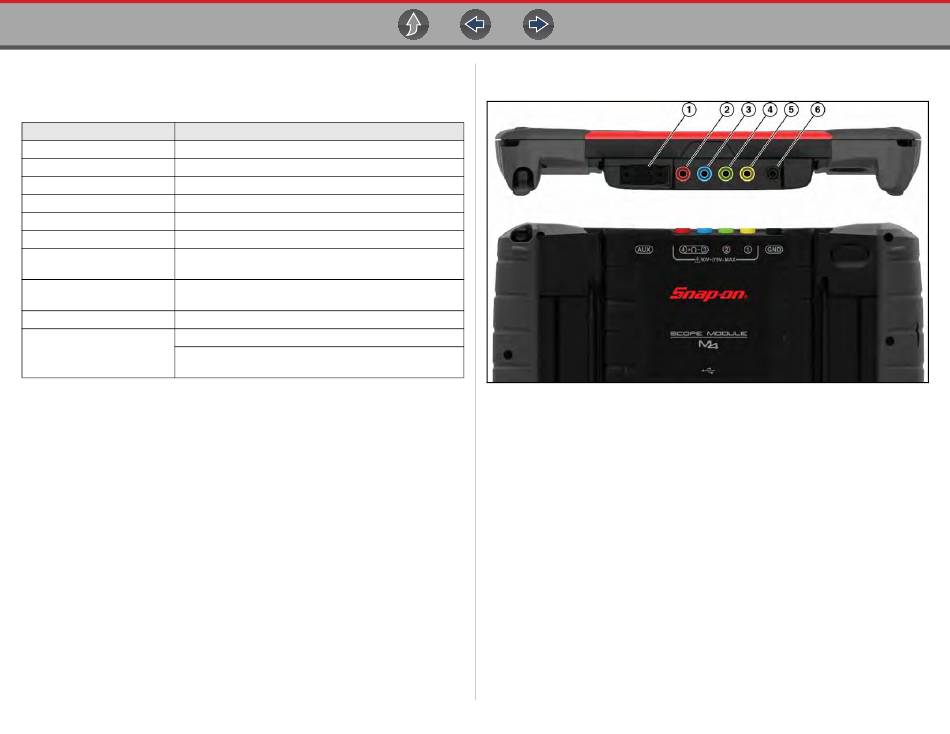

8.59 Component Locations
1. Auxiliary (DB9) Connector The auxiliary connector is used for connection of the
optional RPM inductive pickup and the pressure transducer split lead adapter. For
additional information contact your sales representative, and see
on page 98 .
Module Remotely
2. Channel 4 Jack
3. Channel 3 Jack
4. Channel 2 Jack
5. Channel 1 Jack
6. Common (Ground) Jack)
Figure 8-2 Scope Module, removed from Diagnostic Tool
91
