11.16 Scanner DataViewer

Scanner data files are saved in a proprietary file format and are viewable by
opening them from the Scanner Data Folder in the Data Manager folder panel, or
from within the Windows My Documents > ShopStream > Scanner Data folder.
The built-in Scanner DataViewer
Scanner data files.
Scanner DataViewer - Opens .pids, .scm, .scs, .scp and .spm file extensions

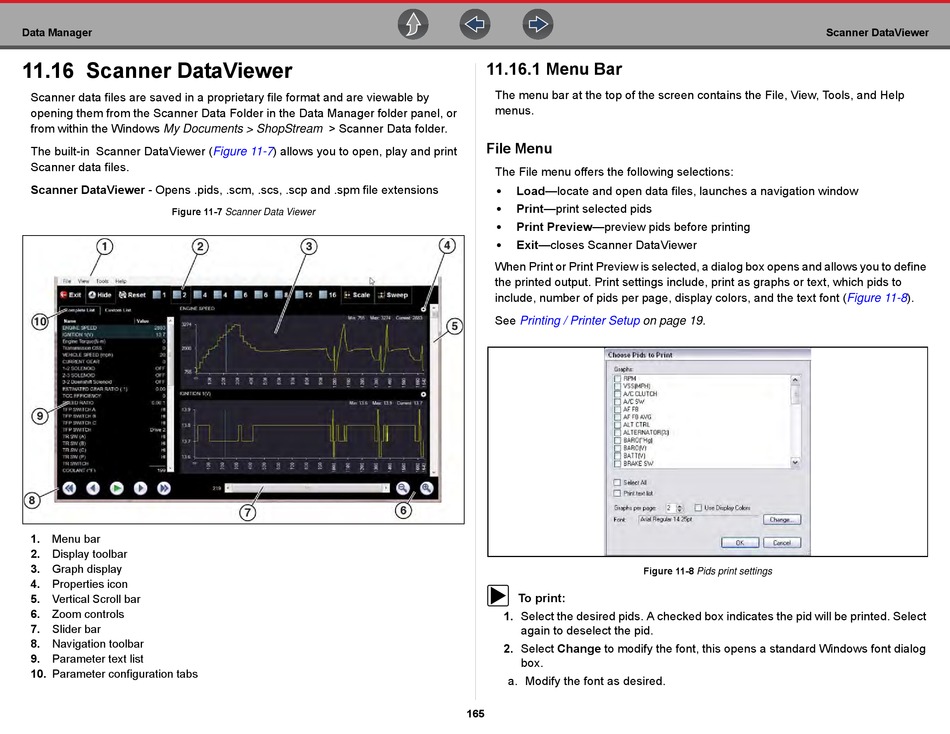

Figure 11-7 Scanner Data Viewer
1.

Menu bar

2. Display toolbar
3. Graph display
4. Properties icon
5. Vertical Scroll bar
6. Zoom controls
7. Slider bar
8. Navigation toolbar
9. Parameter text list
10. Parameter configuration tabs
(Figure 11-7) allows you to open, play and print
11.16.1 Menu Bar
The menu bar at the top of the screen contains the File, View, Tools, and Help
menus.
File Menu
The File menu offers the following selections:
Load—locate and open data files, launches a navigation window
•
Print—print selected pids
•
Print Preview—preview pids before printing
•
Exit—closes Scanner DataViewer
•
When Print or Print Preview is selected, a dialog box opens and allows you to define
the printed output. Print settings include, print as graphs or text, which pids to
include, number of pids per page, display colors, and the text font
See
Printing / Printer Setup on page 19.
Figure 11-8 Pids print settings
z
To print:
1. Select the desired pids. A checked box indicates the pid will be printed. Select
again to deselect the pid.
2. Select Change to modify the font, this opens a standard Windows font dialog
box.
a. Modify the font as desired.
165
Scanner DataViewer
(Figure
11-8).
