Section 5

Introduction

NOTE
Intelligent Diagnostics is not supported on U.S. (United States) and AU
(Australian) vehicles.
Intelligent Diagnostics provides access to the latest code-specific data,
information, and tests, all obtained from actual shop repair orders and industry
professionals.
Intelligent Diagnostics may include the following code-specific information and
data (if available):
Technical Bulletins - View Safety Recalls, Technical Service Bulletins (TSB's),
•
and OEM Campaigns
Top Repairs Graph - View a graph of the specific parts and procedures most
•
frequently used to fix the selected code or symptom.
Smart Data - View custom code-specific PID lists developed to show you just
•
the data you need related to the code. Smart Data also highlights PIDs that are
operating outside known-good values.
Functional Tests and Reset Procedures - Test components using command
•
functionality directly from the diagnostic tool and reset service indicators.
Guided Component Tests - Test components quickly and accurately with
•
Guided Component Tests that include step-by-step instruction, component
specifications and troubleshooting information.
Real Fixes and Tips - View code-specific procedures, tests, and tips that have
•
been gathered from actual shop repair orders and industry professionals.

Intelligent Diagnostics

5.35 Main Topic Links

Accessing Intelligent Diagnostics
•
Main Menu and Basic Navigation
•
Code Results Dropdown Menu
•
Top Repairs Graph page 71
•
Technical Bulletins (OEM Information)
•
Smart Data page 72
•
Functional Tests and Reset Procedures
•
Guided Component Tests (GCTs)
•
Real Fixes page 76
•
Tips page 76
•
Repair Information page 76
•

5.36 Accessing Intelligent Diagnostics

Intelligent Diagnostics is accessed by selecting the Diagnose icon from the
Scanner code results list. For code results list information, see
(Viewing Codes) on page 43.
To review basic Scanner operation procedures, see
(Quick Start) on page 38.
68
page 68
page 69
page 70
page 71
page 73
page 74
Codes Menu

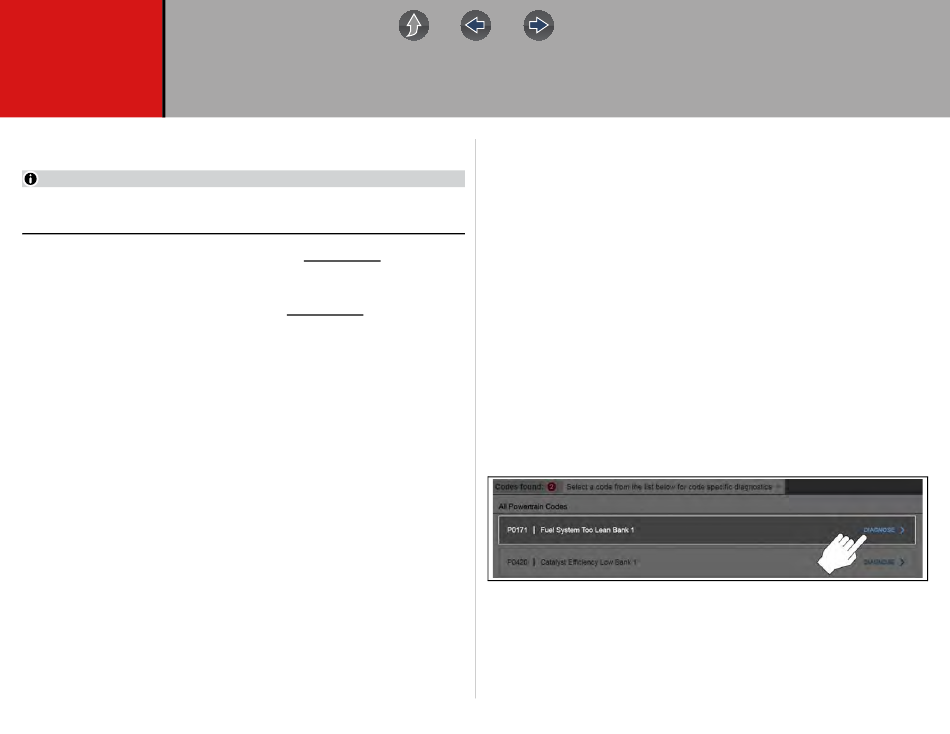

Figure 5-1 Diagnose icon
Basic Scanner Operation
