Scope and Multimeter Operations

8.60.6 Presets

Selecting Presets opens a menu of pre-configured tests
tests set up with pre-configured control settings for common component tests.
In addition to the built-in presets, you can create your own custom test
configurations and save them as presets, see
page 122 for additional information.

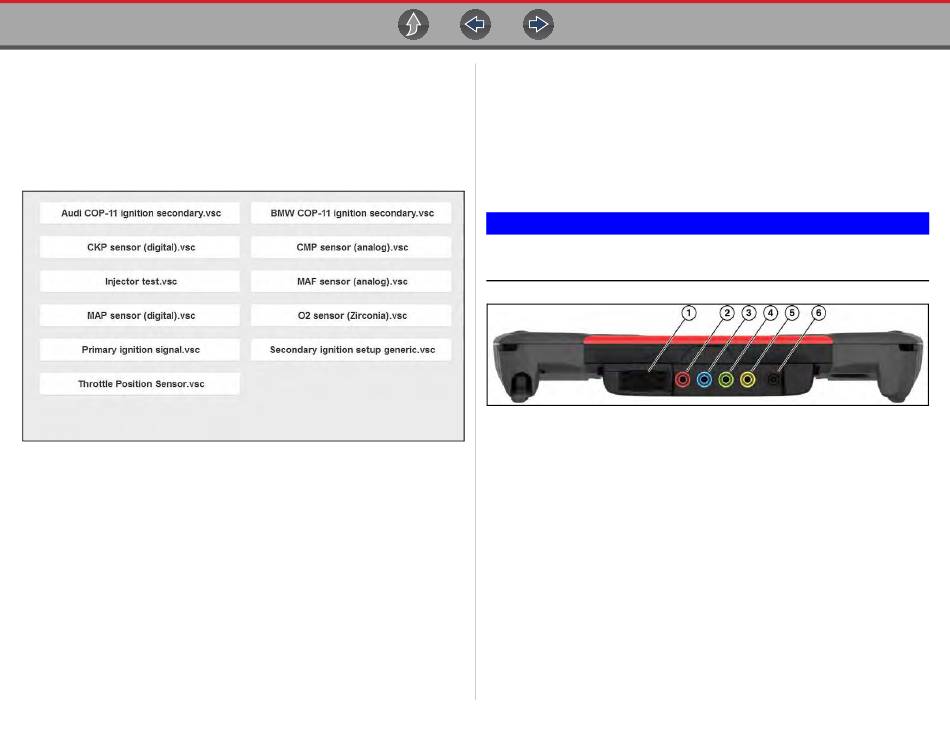

Figure 8-4 Preset Examples
(Figure
8-4). Presets are
Saving Data Files / Configurations

8.61 General Instructions

8.61.1 Test Lead / Probe Connection

Standard "safety type" test lead jacks are located on the top of the diagnostic tool,
on
and are compatible with many test leads and probes. Insert the applicable test lead
or probe terminal end into the jack to compete the connection.
For information on test leads, see
To avoid damaging test leads, do not pull on the wire when removing the
leads from their jacks. Pull only on the lead terminal end.
1.
Auxiliary (DB9) Connector The auxiliary connector is used for connection of the
optional RPM inductive pickup and the pressure transducer split lead adapter. For
additional information contact your sales representative and see,
on page 98 .
Module Remotely
2.
Channel 4 Jack
3.
Channel 3 Jack
4.
Channel 2 Jack
5.
Channel 1 Jack
6.
Common (Ground) Jack
Figure 8-5 Scope Multimeter Test Lead Jacks
97

General Instructions

Test Leads and Accessories
on page 126.
IMPORTANT
Using the Scope
