Section 9: Information; Topic Links; Introduction - Snap-On ZEUS User Manual

Information
Section 9
The INFORMATION function provides you proprietary access to vehicle specific
repair and diagnostic information, from our exclusive online Snap-on Information
automotive repair database. The function is basically a one-stop-shop for all your
troubleshooting reference needs, and includes detailed repair and maintenance
information to help you fix the problem and get the vehicle back in service.
Snap-on Information Features:
OEM recall and technical service bulletin information
•
DTC lookup, providing descriptive DTC troubleshooting information
•
Diagnostic step-by-step testing procedures
•
Vehicle specific repair cost estimating with printable estimates
•
Lubricant and fluid specifications
•
Adjustment procedures and specifications
•
Maintenance schedules and procedures, including printable forms
•
Electrical connector and pin identification
•
Printable component and system wiring diagrams
•
Component locations, pictures and identification
•
Battery connection and initialization information
•
Component specifications
•
Component operation/theory information
•
Scope trace (waveform) examples
•
CAN-Bus diagnostic and component reference information
•
Dashboard warning light and indicator symbol information
•
................and more!
NOTE
Vehicle information (all types) may not be available for every vehicle, and or
every vehicle system. Selections that are grayed out indicate information is not
available.

Topic Links

Introduction

page 136
•
Getting Started page 137
•
The Snap-on Information Application
•
Overview page 142
•
Maintenance page 142
•
Repair Data page 144
•
Electronics page 147
•
SmartPACK™ page 153
•
9.1 Introduction
The Snap-on Information service is included with current diagnostic tool system
software. To use the Snap-on Information service you must have the current
diagnostic software upgrade installed.
Approximately 30 days before expiration, a message
as a reminder to keep your software current and retain your Snap-on Information
access. Selecting OK will close the message and selecting Snooze 1 Week will
close the message box for approximately one week and then it will re-appear.
NOTE
To purchase software upgrades, see your Snap-on Representative.
136
page 138

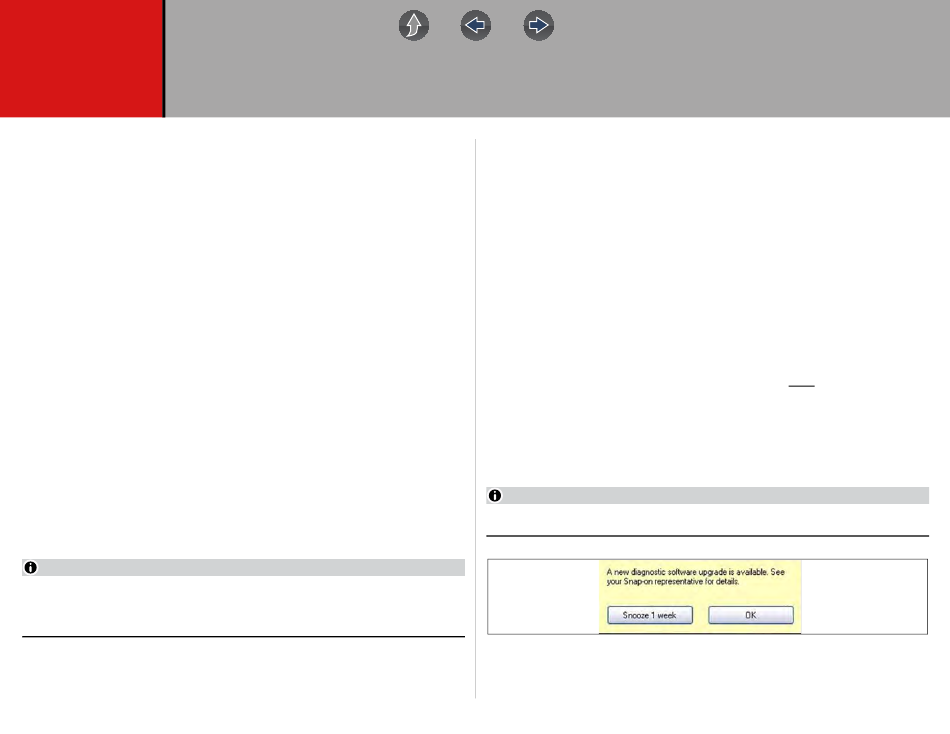

(Figure 9-1) will be displayed
Figure 9-1
