Data Manager

11.16.3 Navigation Tools

Playback Controls
The playback controls allow you to navigate through saved data

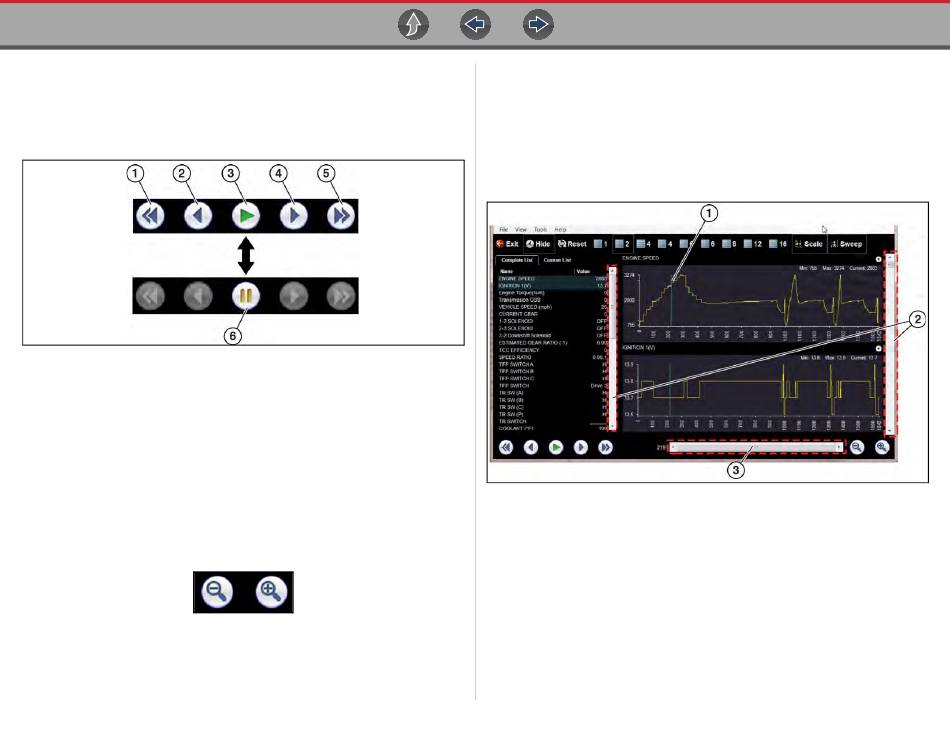

Figure 11-13 Playback controls
1. Skip Back—Allows backward movement in multiple steps.
2. Step Back—Allows backward movement in singular steps.
3. Play—Select to play.
4. Step Forward—Allows forward movement in singular steps.
5. Skip Forward—Allows forward movement in multiple steps.
6. Pause—Select to pause playback.
Zoom Controls
The zoom controls allow you to incrementally increase or decrease the screen
magnification (Figure
11-14).
Figure 11-14 Zoom controls
Slider / Scroll Bars and Cursor
Use the slider bar to quickly navigate through the data
playback the number displayed on the left side of the slider bar indicates the current
position of the cursor in the data file. The cursor can be repositioned during
(Figure
11-13).
playback or when paused by selecting and dragging.
Use the scroll bar (right side) to vertically scroll through the parameter list and
graphs.
1. Cursor
2. Scroll bar
3. Slider bar
168
Scanner DataViewer
(Figure 11-15). During
Figure 11-15
