Tire Pressure Sensor System Tool Kit
TPMS4
TPMS diagnostic tool that tests tire pressure monitoring sensors, captures sensor
data and relearns tire pressure monitoring systems. Also programs aftermarket
sensors and prints sensor information. Perfect complement to a shop or technician
that owns a Snap-on® diagnostic platform.
Advertisement
Table of Contents
Related Manuals for Snap-On TPMS4
Summary of Contents for Snap-On TPMS4
-

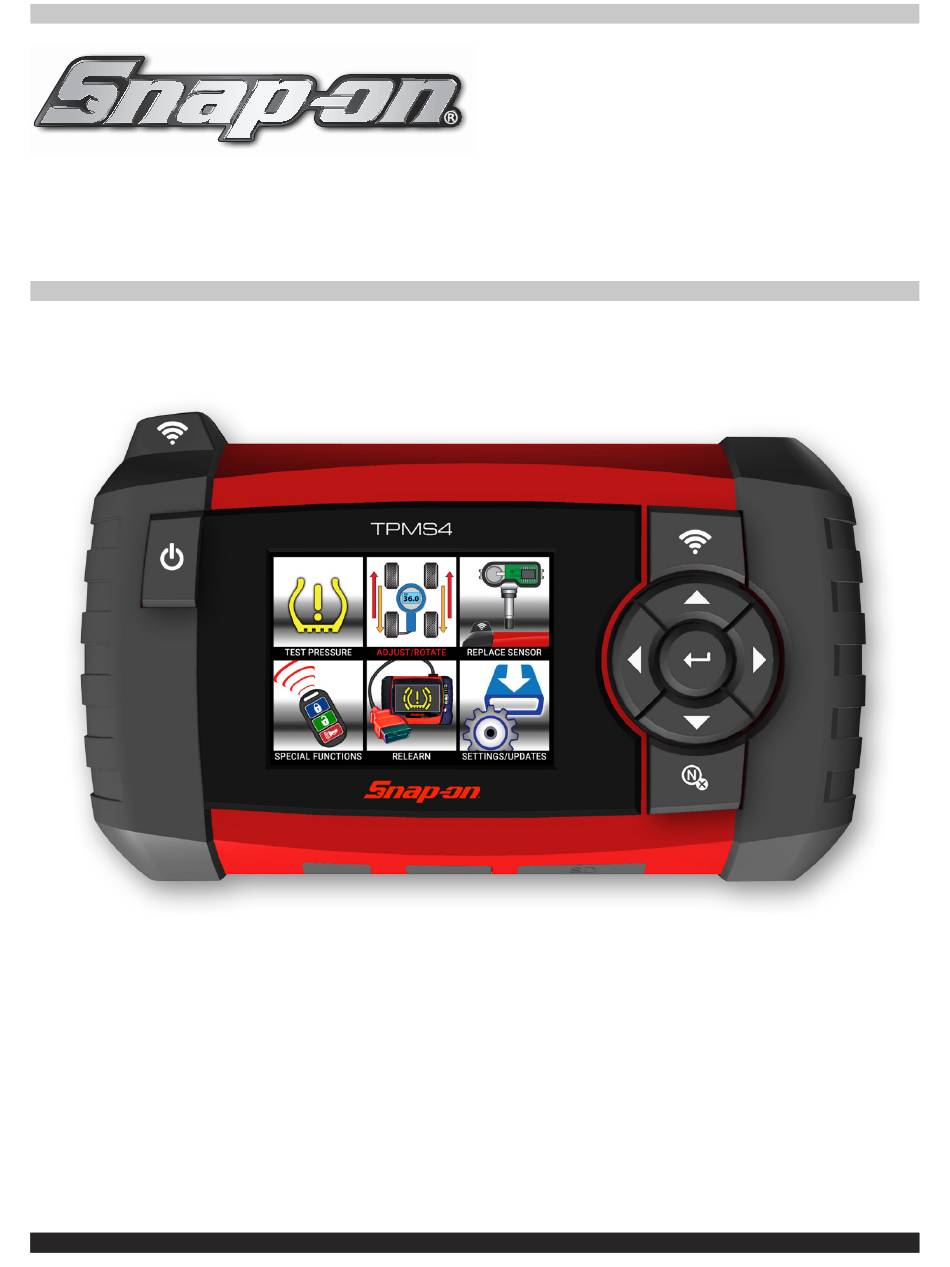

Page 1: Tpms4 User Manual Cover
TPMS4 TPMS diagnostic tool that tests tire pressure monitoring sensors, captures sensor data and relearns tire pressure monitoring systems. Also programs aftermarket sensors and prints sensor information. Perfect complement to a shop or technician that owns a Snap-on® diagnostic platform. -
Page 2: Table Of Contents
TPMS4 Warranty / Service and Repair........ -
Page 3: Safety Information
Safety Signal Words All safety messages contain a safety signal word that indicates the level of the hazard. An icon, when present, gives a graphical description of the hazard. Safety Signal words are: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders. -
Page 4: Safety Precautions
Charge battery pack only with charger provided. Do not store at temperatures above 120°F (49°C). Do not discard used batteries; return them to a Snap-on repair center for recycling. Follow all safety messages in user manual. Fire or explosion or electric shock can cause injury. -
Page 5: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 6: Chapter 1: What's Included Features And Layout
TPMS diagnostic tool that tests tire pressure monitoring sensors, captures sensor data and relearns tire pressure monitoring systems. Also programs aftermarket sensors and prints sensor information Kit Contents Power Antenna Test (On/ Off) Button TPMS4 Button Diagnostic Tool Directional Buttons TPMS3-4 USB Cable TPMS4-7 Enter... -
Page 7: Chapter 2: Basic Tool Operation And Navigation
Chapter 2: Basic Tool Operation and Navigation When testing sensor position TPMS4 antenna on sidewall near valve. Press TEST to trigger sensor. On certain applications such as Asian vehicles, a Snap-on diagnostic scan tool is required to place the vehicle into relearn mode. -
Page 8: A) Test Pressure
Test Pressure Perform this function to retrieve TPM sensor information,such as Unique sensor ID, Pressure, Frequency,Temperature, Battery status (Note: Ford banded style-sensors requires the trigger- ing to be performed 180 degree from valve stem).The following sensor information insures that the TPMS sensor is correct and that it is working as designed. MAKE / MODEL / YEAR VEHICLE SELECTION CADILLAC... -
Page 9: B) Adjust / Rotate
With Odometer Reset Adjust tire pressure to tire placard SN : B365-06685 value. SN : B365-06685 VERSION : JALL2-07-02 Use TPMS4 to check all sensors. VERSION : JALL2-07-02 BOOTLOADER : 02.000 Press NEXT BOOTLOADER : to trigger all 02.000 sensors in the tires. -
Page 10: C) Replace Sensor
Replace Sensor Adjust / Rotate Perform vehicle sensor replacement for OE or aftermarket Programmable sensor brands. Follow on screen instructions as well as relearn the TPM system after all sensors have been replaced. Each specific relearn procedure is provided along with sensor programming instructions. 2015 GMC ACADIA SELECT SENSOR PROGRAMMABLE... -
Page 11: D Special Functions
Special Functions Special enhanced functions are enabled to the TPMS4 that allows the user to perform and insure that the vehicle will achieve relearn mode and the registration of the new sensor ID's are suc- cessful. The special functions will include Key fob testing, REDI Sensor - Unlock, and future TPMS procedures. -
Page 12: E) Relearn
Specific vehicle instructions to assist in registering the new sensor ID's after a new sensor re- placement. Instructs for the use of Snap-on diagnostic equipment to scan for DTC codes, as it may direct the user to an in-depth diagnosis. Diagnosis of all DTC's is always recommended be- fore a successful RELEARN can be achieved. -
Page 13: F) Settings / Updates
Setting / Updates Customizable settings to suit the user's preference, such as world regions, SI or Metric, and language. TOOL SETTINGS SETTINGS REGION REGION : AMERICA AMERICA UNITS : PSI / F EUROPE FORMAT : AUTO BUZZER ON : YES AUTO OFF : 5 minutes LANGUAGE : ENGLISH ABOUT... -
Page 14: G) Settings / (Update)
Insert the USB Jump Drive into the PC or Laptop USB port and follow the on-screen in- structions. This will provide the user with initial product registration and it will also bring the TPMS4 to the most current software version. After the first 12-months the purchase of TPMS4U update... -
Page 15: Chapter 3: Pc Print Instuctions
Chapter 3: PC Print Instructions Printing sensor information such as Sensor ID, Pressure, Temper- ature and Battery condition is a feature of the TPMS4. This func- tion is performed after triggering the vehicle sensors and connect- ing the TPMS4 through the WebTPM portal. -
Page 16: Tpms4 Warranty/Service And Repair
Snap-on Tools Company Limited One (1) Year Warranty Snap-on Tools Company (the “Seller”) warrants only to original purchasers who use the Equipment in their busi- ness that under normal use, care and service, the Equipment (except as otherwise provided herein) shall be free from defects in material and workmanship for one year from the date of original invoice.
