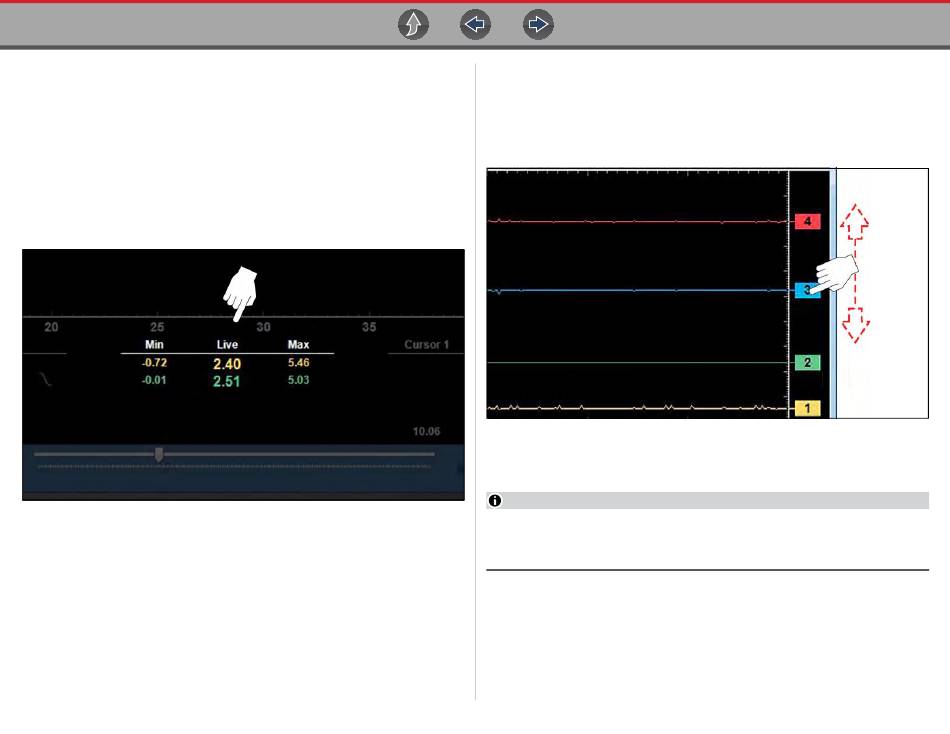

8.64.13 Min, Live and Max Display Panel

When using Expanded mode the Min, Live and Max display panel
shows each channel's active signal minimum and maximum recorded
measurements and live measurement.
Min - lowest measurement recorded for the signal since the test was activated,
•
or from the last time Refresh was selected
Max - highest measurement recorded for the signal since the test was
•
activated, or from the last time Refresh was selected
Live - represents the "live" running average measurement of the signal being
•
measured
(Figure
Figure 8-38

8.64.14 Zero Baseline Adjustment

To adjust the vertical position of the zero baseline (0 value) of a trace, either touch
8-30)
and drag the baseline marker up/down on the screen
trace setup menu to make precise adjustments, see
page 101.

8.64.15 Threshold Auto/Manual (GMM Only)

NOTE
The Threshold function is only available in the Graphing Meter function for
specific tests. These functions may also be referred to as Auto Threshold
Select (ATS) or Manual Threshold (MT).
The Threshold function can be used, to display and obtain a more accurate
measurement when measuring signals (e.g. Frequency, Duty Cycle, MC Dwell and
Pulse Width) that may be difficult to display or have noise or other undesirable
variations in the signal.
When Auto Threshold is selected, the Threshold function automatically sets a
trigger and determines a threshold level in the middle of the signal range
115
Control Panel and Settings
(Figure 8-39), or open the
Trace Controls Menu
Figure 8-39
on
