  • Page 1 GETT IN G START E D PAC K diagnostics.snapon.com/triton-d10...

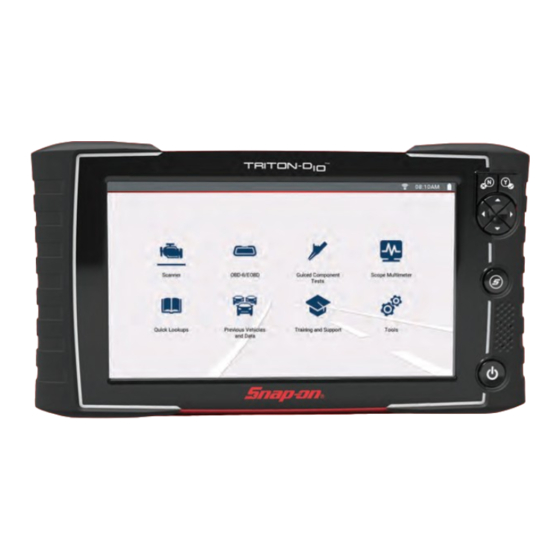

  • Page 2 Feature Locations Button Touch No / Cancel Yes / Accept Directional Screen Button Button Buttons Shortcut Button button can be set to automatically perform routine functions, like capturing a screenshot, or saving a data file movie. Default setting = Save Screen To change, naviagte to Tools >...
  • Page 3 - Wi-Fi connection is all it takes to get the latest vehicle coverage. Subscription based software upgrades are delivered * Supported vehicles only. directly to your tool. Snap-on Cloud ® Automatically transfer code scans, ADAS recalibration reports, and screenshots 1. Connect the tool to a Wi-Fi network.

  • Page 4: Getting Started

    Getting Started 1. Remove the battery pack cover, This side up. and install the battery pack (as shown) with the arrows facing up. Tilt the top of the battery in to align the tabs, then down to install. 2. Install the battery pack cover, aligning the tabs .
  • Page 5 Scanner Scanner makes vehicle communication easy, by providing full scanning functionality including these features and more! Code Scan - Scan multiple systems in a single touch - View multiple PID graphs at once for data comparison analysis - Perform functional component tests, and adaptive relearns Scanner Basics 1.
  • Page 6 Intelligent Diagnostics Demonstration 1. Select a code from the code results list. 2. Select to display the Intelligent Diagnostics multi-card menu. to use Intelligent Diagnostics. Intelligent Diagnostics gives you access to Not required for Demo. repair information, tests, OEM bulletins and Smart Data tests all in one menu Use the dropdown menu to change the active code.
  • Page 7 of bi-directional tests that can be used to verify component or system operation during troubleshooting. components and sensors, including step-by-step instructions. ® Displays the Top Real Fix for the code. Displays repair procedures, tests and tips related to the code. Displays troubleshooter tips related to the selected code.

  • Page 8: Guided Component Tests

    Guided Component Tests instructions to help you verify component integrity and validate repairs. Vehicle information may include: • • • • 1. Select from the Home screen. 2. Select > 2010 > > 3. Select OK, then > CKP Sensor > and an example of a known good waveform.
  • Page 9 Use of the device acknowledges your acceptance of the End User License Agreement. The Snap-on Incorporated Software End User License Agreement is available at: For a listing of Snap-on products that are protected by patents in the United States and elsewhere, visit:...

  • Page 10: Online Training Videos
