The Snap-On Information Application; Main Screen - Snap-On ZEUS User Manual

Information
2. Continue through the screen prompts to identify the vehicle by selecting the
following:
Model
–
Year
–
Engine
–
Engine Details
–
A vehicle confirmation screen is displayed.
3. Select OK or Cancel to continue.
Selecting OK from the confirmation screen, opens the Snap-on Information
application.
Vehicle Section Toolbar Functions
Toolbar functions from the vehicle selection screen, are as follows:
Back—allows you to return to the previous screen
•
Configure Favorites—allows you to create a favorites list of frequently
•
selected vehicle makes
Favorites/Full List—toggles the displayed vehicle make list between the full
•
and favorites list views
9.3

The Snap-on Information Application

9.3.1 Main Screen

The main screen (Figure 9-4) is the central portal to all vehicle information and
includes multiple tabs and functions.
Main screen features are shown in the following illustration, and descriptions with
links are provided in this section.
1 2
4
5
6
7
8
9
10

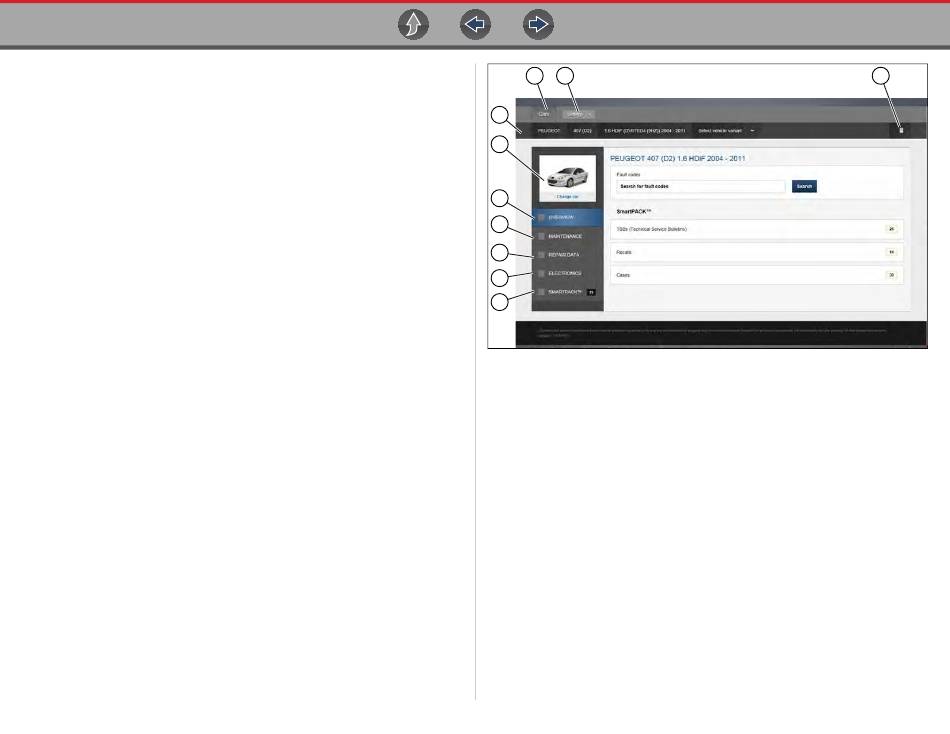

Figure 9-4 Main Screen Features
1. Cars—The Cars tab is available at all times from the main screen toolbar. Selecting
Cars, allows you to change the vehicle and returns you to the Vehicle Selection
screen.
See
Selecting/Changing Vehicle
2. Settings—The Settings dropdown list is available at all times from the main screen
toolbar and includes the following functions, Preferences, About and Logout.
See on page 139 .
Settings
3. Converter—The Converter function is available at all times from the vehicle
identification panel and provides basic metric to standard conversion functions for
different units of measurement.
4. Vehicle Identification Panel—Displays current vehicle model information in
selectable tabs. Each vehicle category information tab can be selected to navigate
back to that selection screen to make changes.
5. Change Car Icon—Selecting this icon allows you to quickly return to the vehicle
model selection screen.
6. Overview Tab—
Overview
7. Maintenance Tab—
Maintenance
8. Repair Data Tab—
Repair Data
9. Electronics Tab—
Electronics
10. SmartPack Tab—
SmartPACK™
138
The Snap-on Information Application
on page 139 .
on page 139 .
Converter
on page 142
on page 142
on page 144
on page 147
on page 153
3
