Running the demonstration

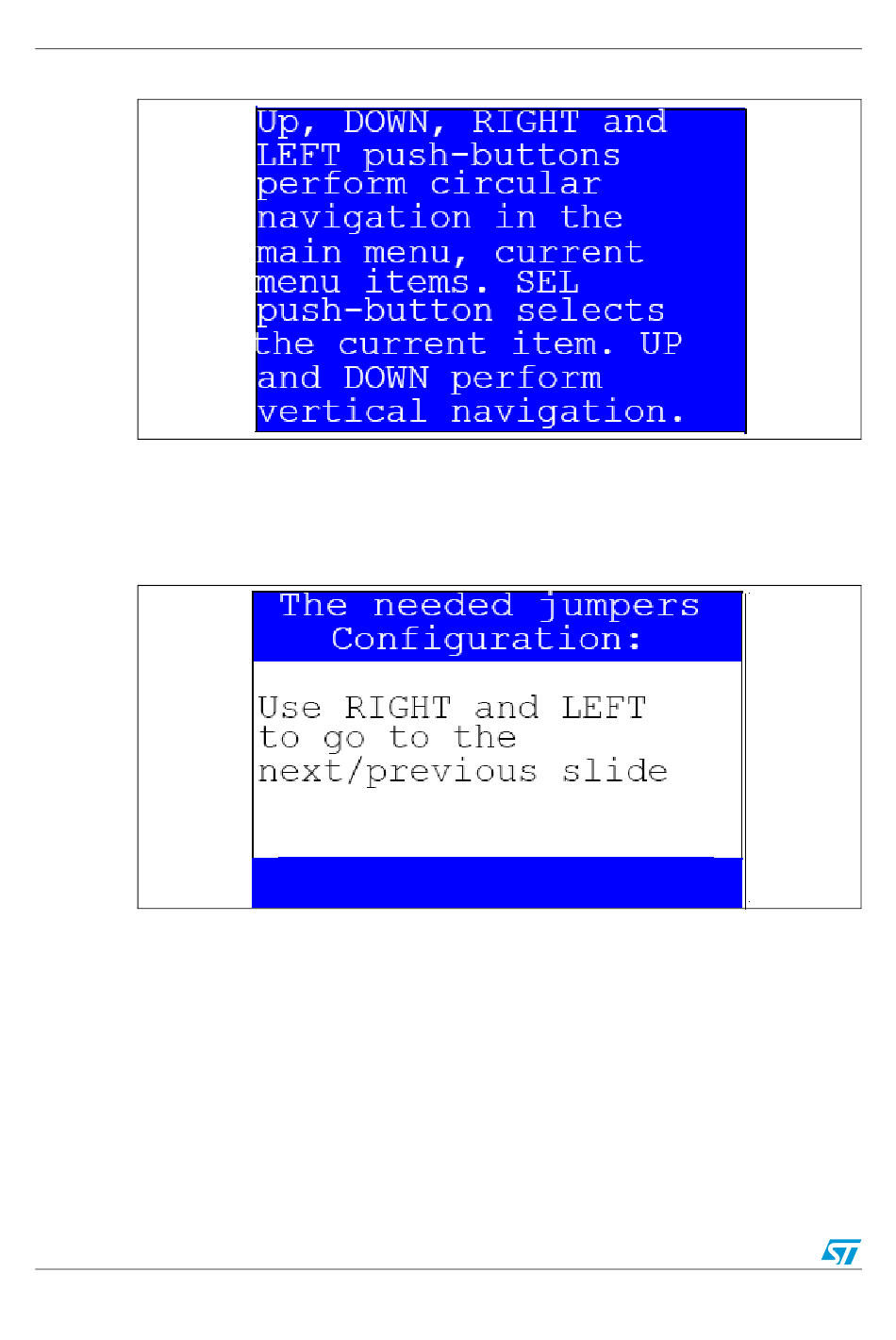

Figure 77. Navigation menu 2

Once the joystick push-button has been pressed again, the MCU exits the navigation
submenu and the message shown in
●
If the Jumpers config submenu is selected, the message shown in
displayed.

Figure 78. Jumper configuration menu 1

Press RIGHT and LEFT to go to the next/previous slide and UP to exit. The following
messages shown in
LCD screen.
58/65
Figure 75
Exit:Pres&Hold KEY
Figure 79, Figure 80 and
Doc ID 023892 Rev 1
is displayed on the LCD screen.
Figure 81 are displayed sequentially on the
UM1590
Figure 78 is
