UM1590

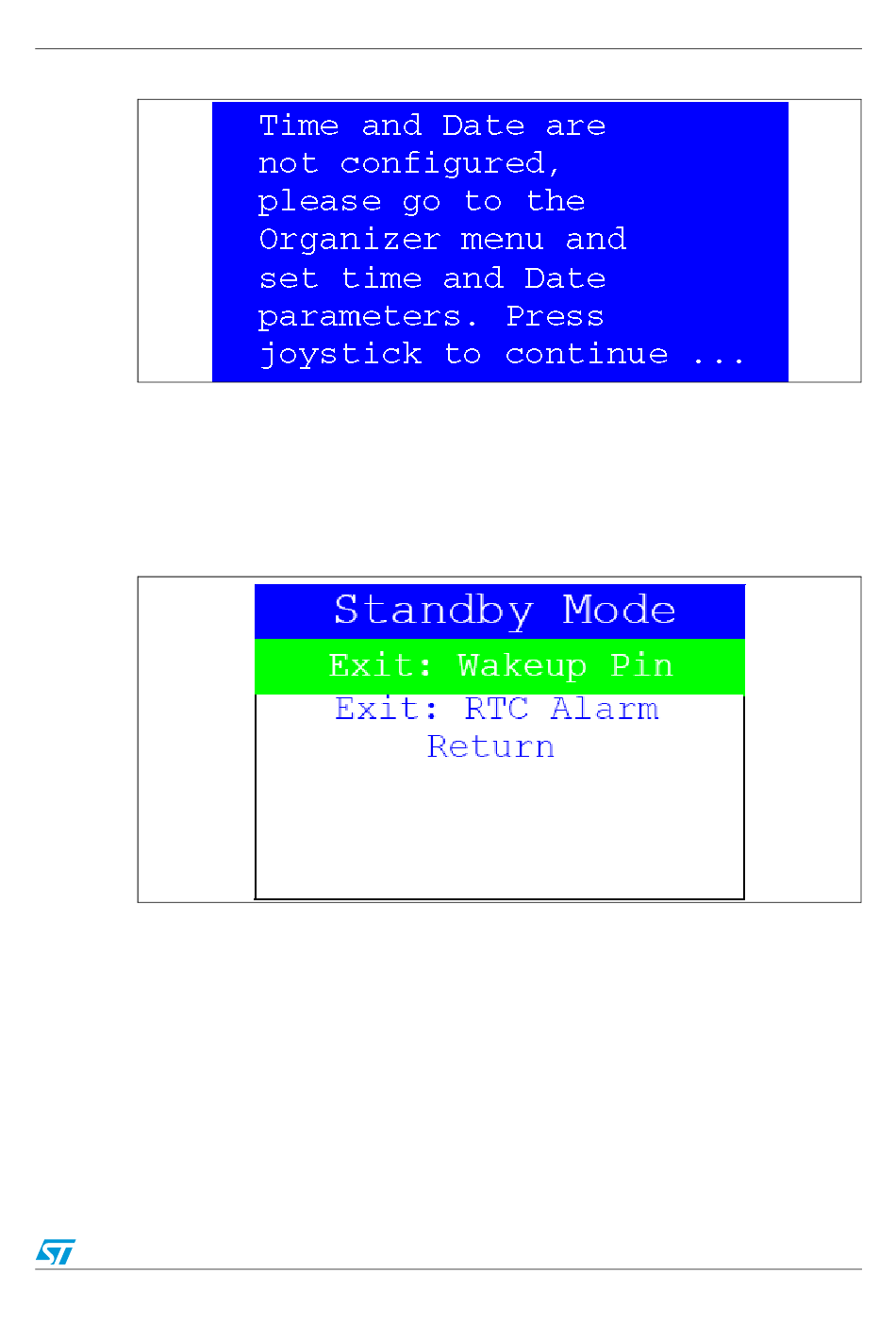

Figure 55. Time and date configuration prompt

Standby mode menu
This menu allows the user to put the STM32F30x/31x in Standby mode. The software runs
the specific instruction sequence needed by the STM32F30x/31x to enter Standby mode.
In this application, the STM32F30x/31x can be made to exit Standby mode in two ways as
shown in

Figure 56. Entering Standby mode

●
In the first case, the Wakeup push-button is used to wake up the MCU from Standby
mode.
Once the Standby mode submenu has been selected, the four LEDs continue blinking
until the "SEL" push-button is pressed, and the system enters Standby mode. When the
MCU is in Standby mode, the message shown in
Time and Date are
not configured,
please go to the
Organizer menu and
set time and Date
parameters. Press
joystick to continue ...
Figure 56.
Doc ID 023892 Rev 1
Running the demonstration
Figure 57 is displayed on the LCD
45/65
