UM1590

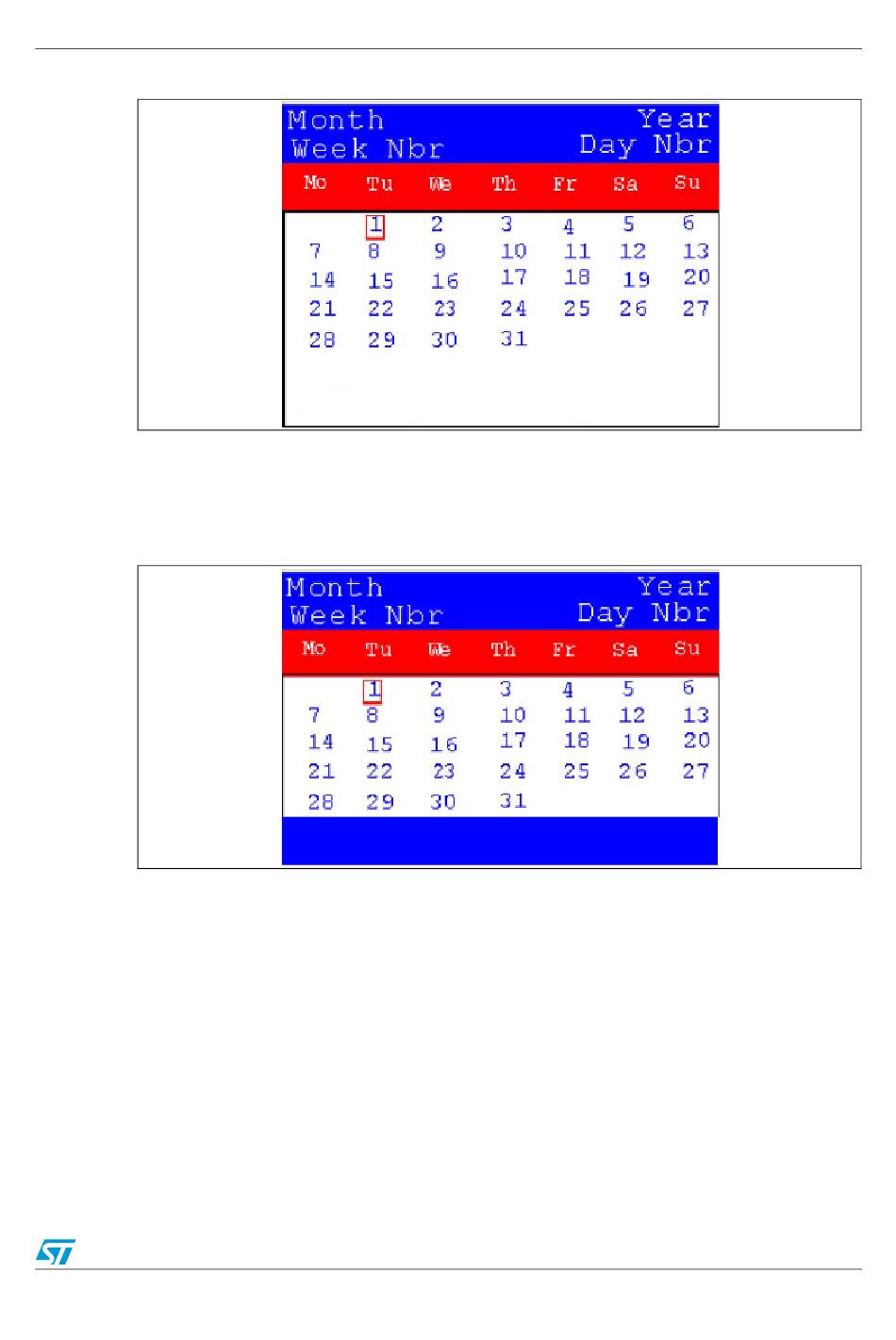

Figure 23. Setting the day of the month

●

Date Show: this item displays the current date. If the time and date have not been

configured before, a message is displayed, prompting the user to set the time and date

or to exit to the upper submenu. The message shown in

LCD when the submenu is selected (with the date already configured).

To exit this submenu, press the SEL push-button. To exit the Date submenu, select the

Return line and press the SEL push-button.

Stopwatch submenu

This application simulates a precise chronometer with provision for 5 record times. For this

application an interactive human interface is developed using STM32303C-EVAL LCD and

push-buttons to allow user to use the stop-watch with real time display.

Set Day-SEL to exit

To Exit Press SEL

Doc ID 023892 Rev 1

Running the demonstration

Figure 24

is displayed on the

27/65
