UM1733
User manual
Getting started with STM32F334 Discovery kit
Introduction
This document describes the software, firmware environment and development
recommendations required to build an application around the STM32F334 Discovery kit.
The STM32F334 Discovery kit (32F3348DISCOVERY) is a low-cost and easy-to-use
®
development kit to quickly evaluate and start a development with an STM32F3 series ARM
®
32-bit Cortex
-M4 high-performance microcontroller. Before installing and using the
product, please accept the Evaluation Product License Agreement available at
www.st.com/epla.
For more information on the STM32F334 Discovery kit visit www.st.com/stm32f3-discovery.

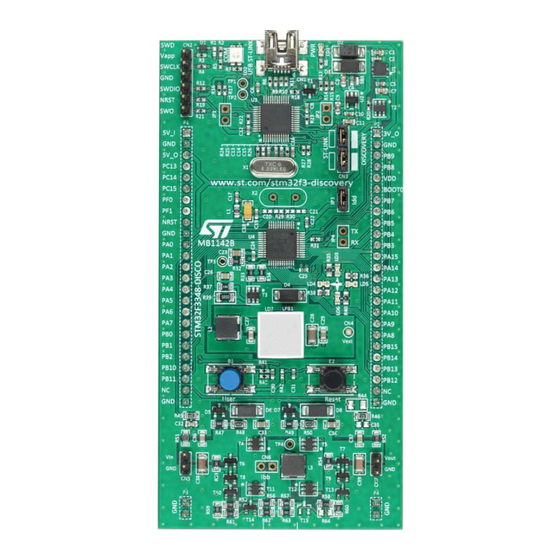

Figure 1. STM32F334 Discovery board
May 2014
DocID025933 Rev 1
1/11
www.st.com
Advertisement
Table of Contents
Related Manuals for ST STM32F334
Summary of Contents for ST STM32F334
-
Page 1: User Manual
Getting started with STM32F334 Discovery kit Introduction This document describes the software, firmware environment and development recommendations required to build an application around the STM32F334 Discovery kit. The STM32F334 Discovery kit (32F3348DISCOVERY) is a low-cost and easy-to-use ® development kit to quickly evaluate and start a development with an STM32F3 series ARM ®... -
Page 2: Table Of Contents
Contents UM1733 Contents References ..........5 Quick start . - Page 3 UM1733 List of tables List of tables Table 1. User button B1 functions........... . 7 Table 2.
- Page 4 STM32F334 Discovery board ........
-
Page 5: References
• RM0364 - Reference manual - STM32F334xx advanced ARM -based 32-bit MCUs. • Forum user question / discussion available at my.st.com • UM1735 STM32F334 discovery board. • UM1736 Getting Started with STM32F334 discovery software development tools. DocID025933 Rev 1 5/11... -
Page 6: Quick Start
The requirements to configure the STM32F334 Discovery board and start with the demonstration software are as follows: • One 'USB type A to Mini-B' cable to power up the STM32F334 Discovery board from the USB ST-LINK (USB connector CN1) •... -
Page 7: Running The Pre-Loaded Demonstration Software
Running the pre-loaded demonstration software Follow the sequence below to launch the pre-loaded demonstration application: Connect the STM32F334 Discovery board (connector CN1) to a PC using the USB- type-A to Mini-B cable to power the board. The red LED LD1 (PWR) and LD3 (COM) light up, and fours LEDs (LD3, LD4, LD5 and LD6) blink continuously until button B1 is pressed. -
Page 8: Firmware Package
Firmware package UM1733 Firmware package To get started with the STM32F334 Discovery kit, a firmware package that contain a set of IPs examples and demonstration of some features are available at www.st.com/stm32f3- discovery. Package description The STM32F334 Discovery firmware applications and related documentations are provided in one single package and supplied in one single zip file. -
Page 9: Programming Firmware Application
Install the preferred Integrated Development Environment (IDE). • Install the ST-LINK/V2-1 driver from the ST web site. Note: Required information to download and install desired IDE and ST-LINK/V2-1 are detailed in Getting started with STM32F334 Discovery software development tools. 3.2.2 Programming application Several IP examples are provided with the firmware package (see Figure 3) under STM32F3348-Discovery_FW_VX.Y.Z /Projects/ and the user must use one of the three tool... -
Page 10: Revision History
Revision history UM1733 Revision history Table 2. Document revision history Date Revision Changes 15-May-2014 initial release 10/11 DocID025933 Rev 1... - Page 11 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
