UM1590
parameters in the organizer menu. To set the time/date, use the joystick UP/DOWN and SEL
push-buttons, please refer to
If the time configuration has already been done, then the number of elapsed days (higher
than 1 day) from the last time the demonstration board was powered up appears on the LCD
screen. It is soon followed by the current date.

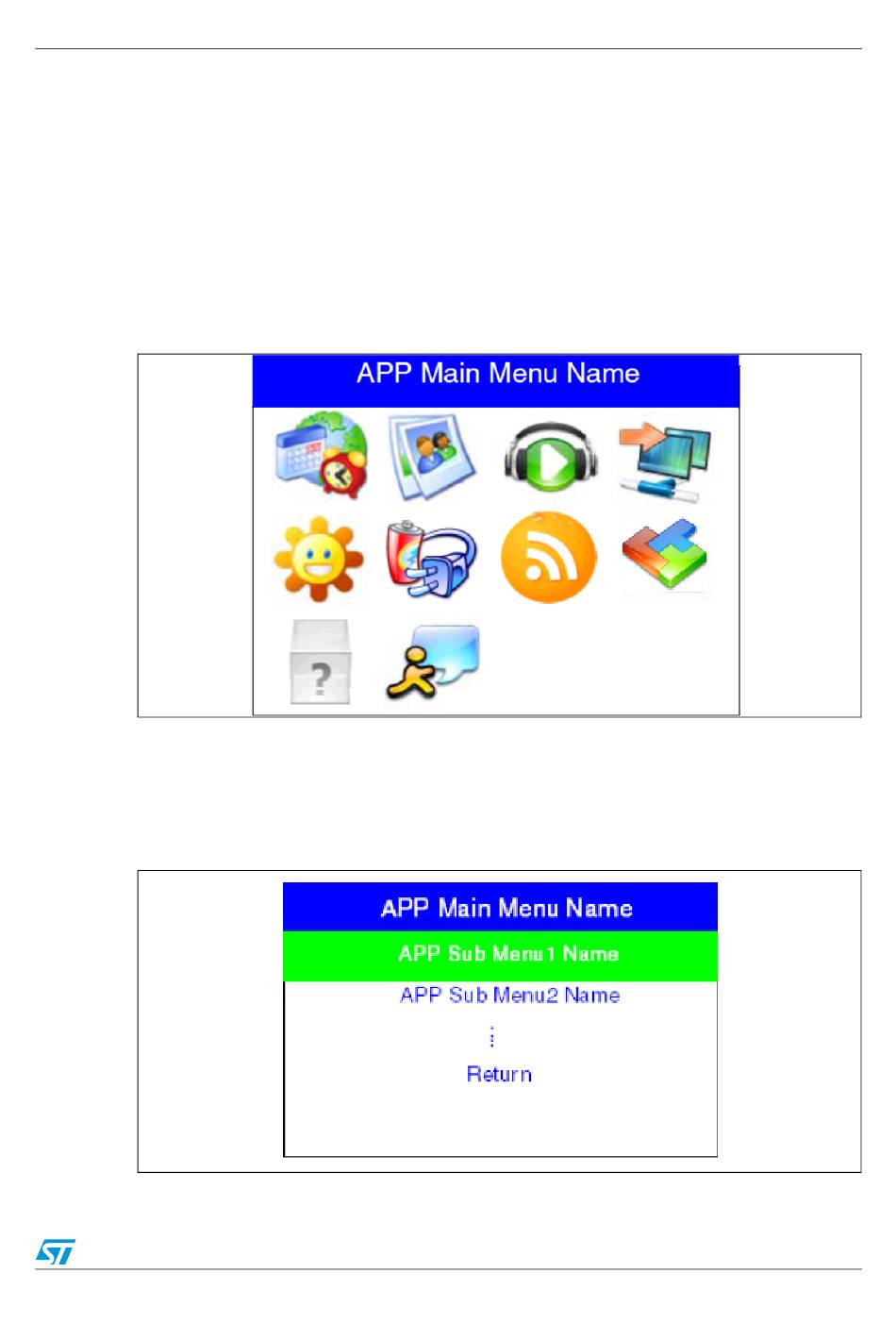

Once the time/date have been set, the main menu appears. The main menu is displayed in
the form of a set of icons. It shows all the submenus in the same screen. You can navigate
using the UP, DOWN, RIGHT and LEFT joystick directions to select the required submenu.
To enter a submenu, press the SEL joystick push-button, and the new submenu
corresponding to the selected icon is displayed.
Figure 8.
1. The icons shown in
Once a submenu has been selected, the name of the application is listed at the top of the
display and all the corresponding submenus are listed below as shown in
Figure 9.
Section 2.4.1:
Main menu
Figure 8 are taken from http://commons.wikimedia.org/wiki/Crystal_Clear.
Corresponding submenus
Doc ID 023892 Rev 1
Running the demonstration
Organizer.
Figure 9.
15/65
