UM1590
2.4.10
Help
This submenu provides help for configuring the jumpers on the STM32303C-EVAL
evaluation board and navigating between the menus and submenus available in the
demonstration firmware.
Select the Help menu by pressing SEL from the main menu. The message shown in
Figure 75

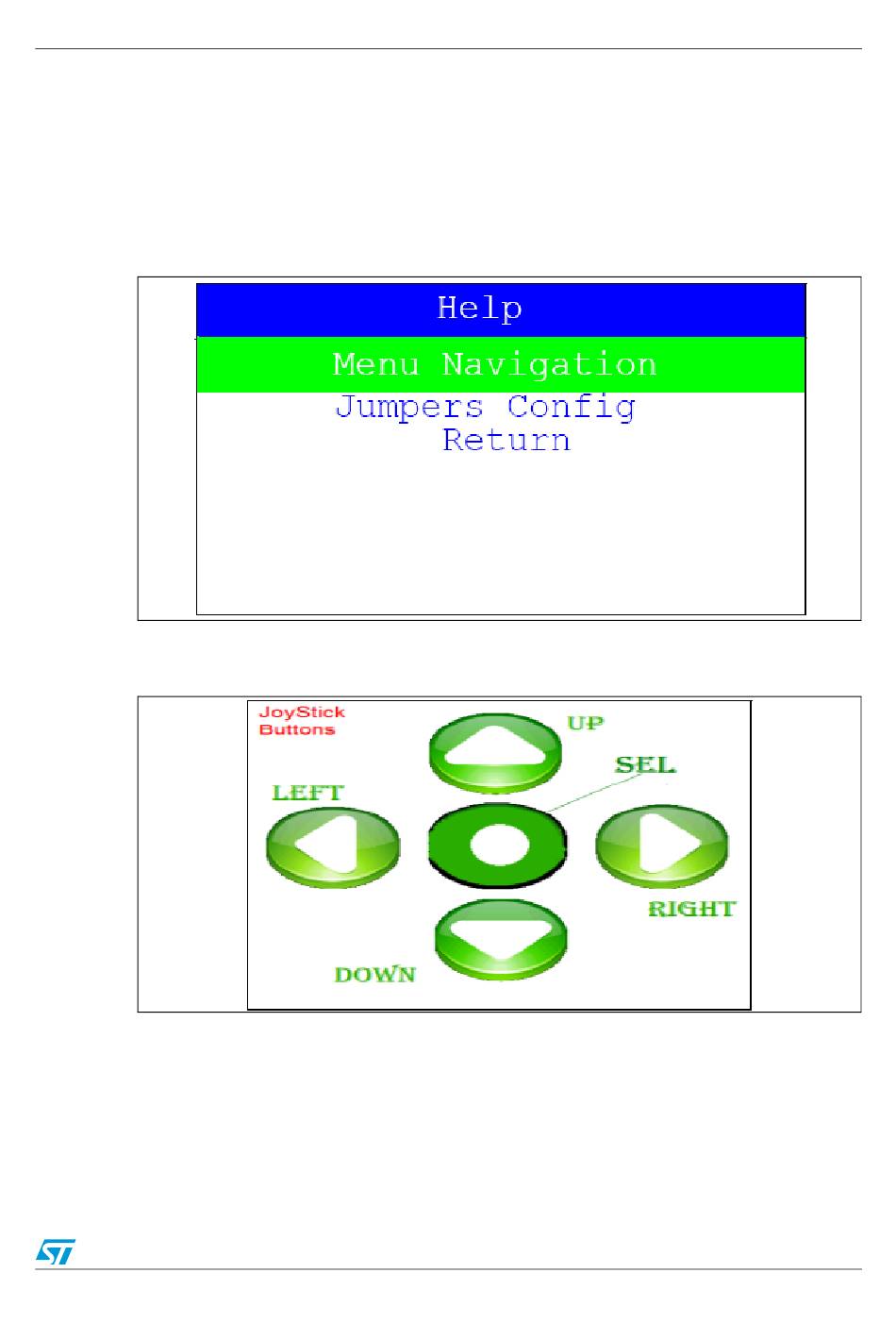

Figure 75. Help menu
If the Menu Navigation submenu is selected, the message shown in
Figure 76. Navigation menu 1
When any joystick button is pressed, the second navigation interface is displayed as shown
in
Figure 77.
is then displayed on the LCD screen.
Doc ID 023892 Rev 1
Running the demonstration
Figure 76
is displayed:
57/65
