Running the demonstration

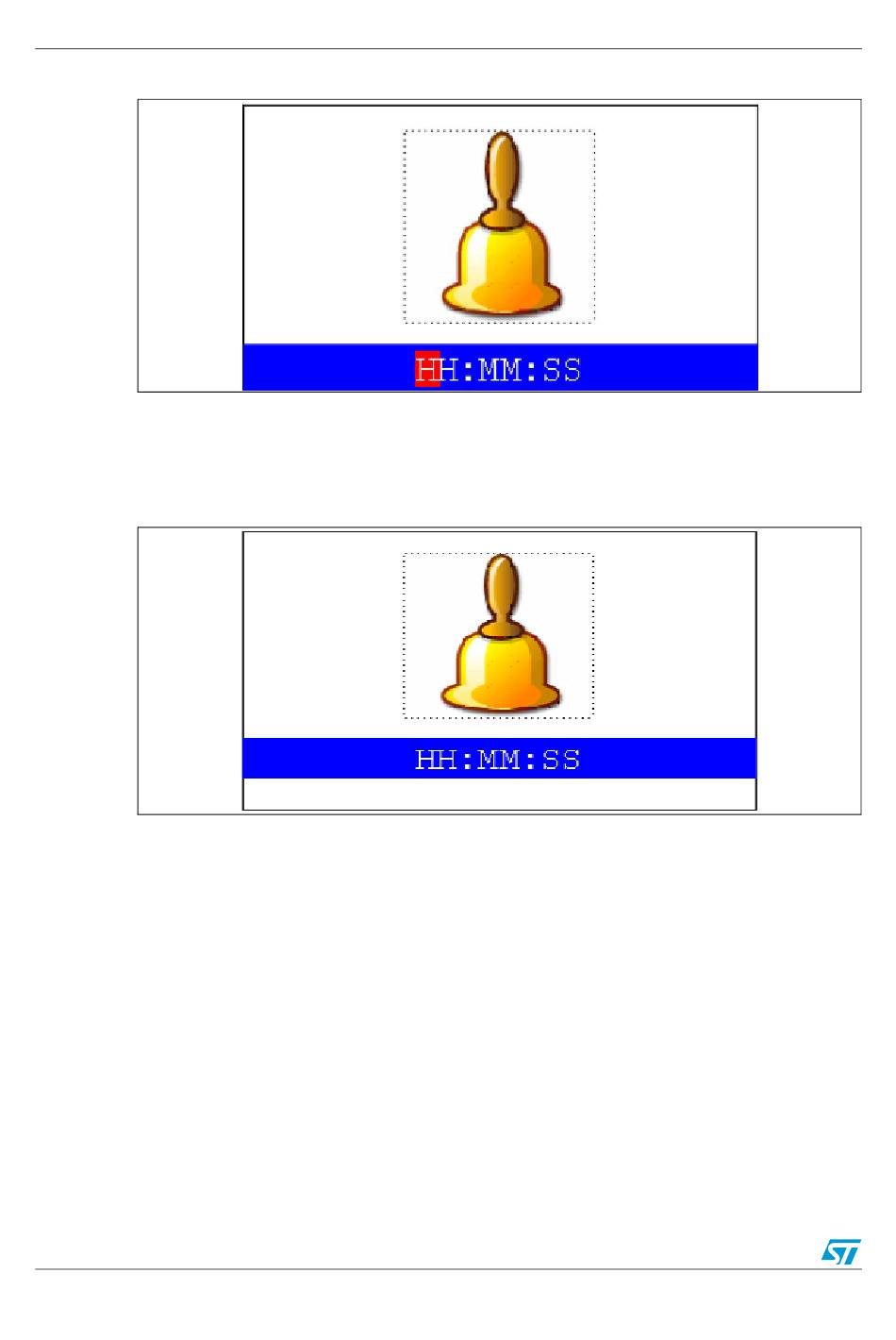

Figure 27. Setting the alarm activation time
●
Alarm Show: this item displays the current alarm time. If the time and date have not
been configured before, a message shown in
takes you back to the Alarm submenu. The message shown in
on the LCD when this submenu is selected.
Figure 28. Alarm Show submenu
To exit the Alarm Show submenu, press the SEL push-button. To exit the Alarm submenu,
select to the Return line and press the SEL push-button.
Note:
In the Alarm Adjust and Alarm Show menus, if the time and date have not yet been
configured, the message shown in
30/65
Figure 29
Figure 29
is displayed on the LCD screen.
Doc ID 023892 Rev 1
is displayed. Pressing SEL
Figure 28
is displayed
UM1590
