UM1590

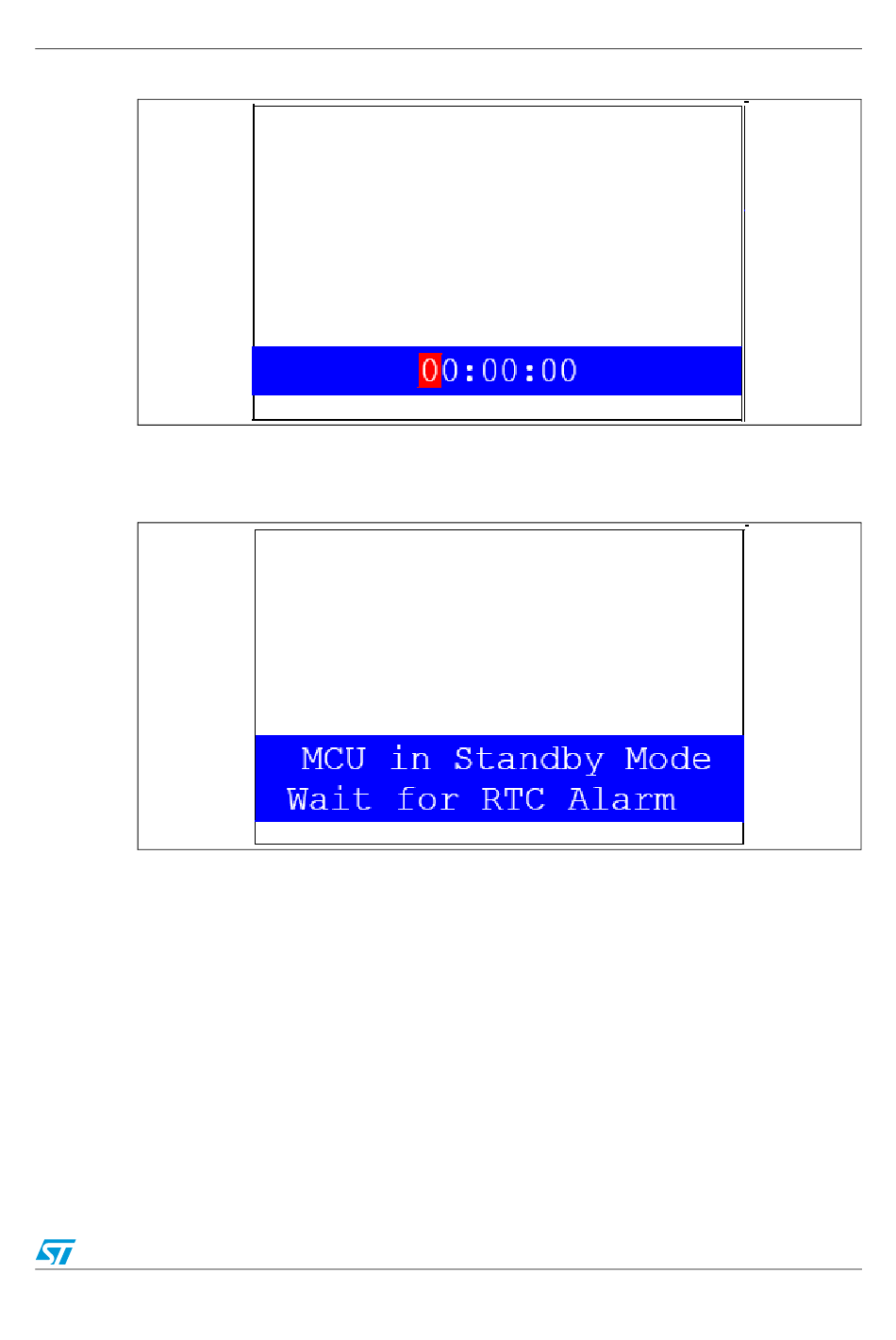

Figure 59. Setting the wakeup time
Once the alarm has been configured, The LEDs stop blinking and the system enters
Standby mode. The message shown in
Figure 60. RTC Alarm wakeup configured
After the programmed timing has elapsed, the system exits Standby mode and a system
reset signal is generated.
Note:
if the Time and Date have not been set, the message shown in
LCD screen.
Figure 60
is then displayed on the LCD.
Doc ID 023892 Rev 1
Running the demonstration
Figure 61
is displayed on the
47/65
