Running the demonstration

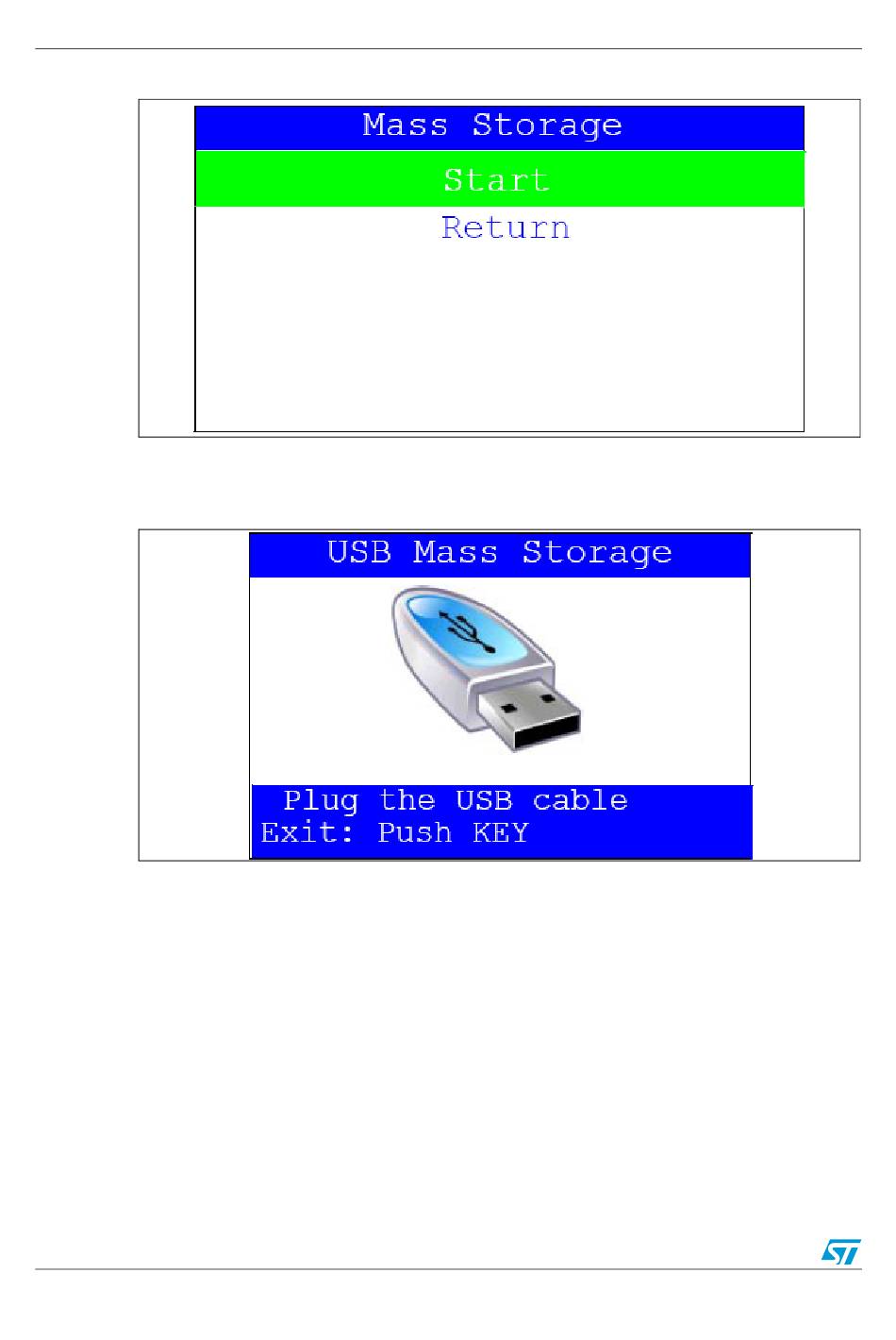

Figure 41. USB mass storage menu 1

If the SEL push-button is pressed when Start is selected, the message shown in
appears on the LCD screen until the cable is plugged in.

Figure 42. USB mass storage menu 2

2.4.5

Thermometer

The STM32F30x/31x microcontroller has two embedded I
connected to any device supporting the I
(SMBus) mode. STTS751 I
board and used to capture the external temperature (-40°C to +125°C).
When the Thermometer submenu is selected, the message shown in
on the LCD.
38/65
2
C protocol including system management bus
2
C temperature sensor is mounted on the STM32303C-EVAL
Doc ID 023892 Rev 1
2
C peripherals that can be
Figure 43
UM1590
Figure 42
is displayed
