The handle can be infinitely adjusted within a range of 350mm. This allows an adjust-
ment range between triangle handle and mattress of at least 550mm to 850mm, de-
pending on the mattress thickness. The total height of the nursing care bed increases by
1300 mm when using a lifting pole.

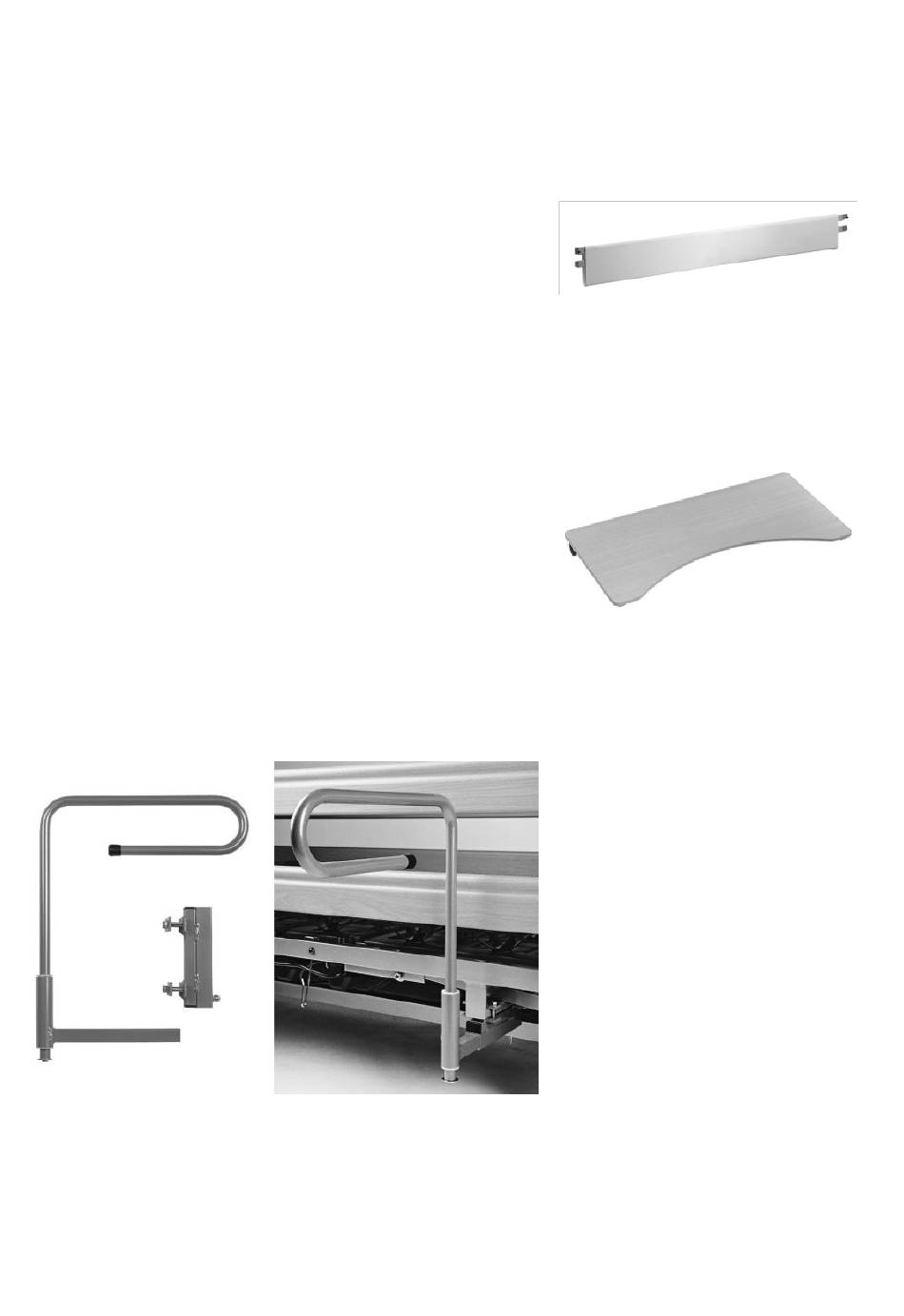

Side rail guard pad, 1.4 kg
Delivery includes:
1 piece cover
1 piece padding
- Open the zipper of the cover, pull the padding onto the side rail from above
- Pull the foam padding from the inside of the bed into the fabric and close the
zipper and/or the hook and loop fastener.
Tray, 4.0 kg
Delivery includes:
1 piece tray
- The tray is applied to the side rail and pre-
vented from getting out of place using two
spacer pieces.
Assist handle with holder for scissor-type beds, 3.0kg
Delivery includes:
1 piece assist handle with holder
- Loosen the four screws on the holder.
- Place the plates of the holder on the crossbar and screw them together.
