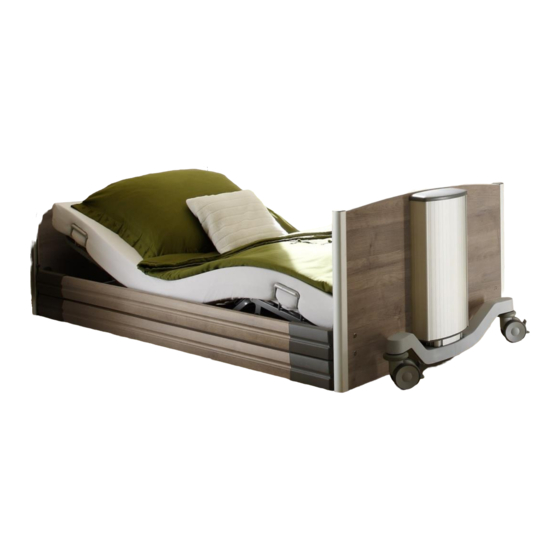

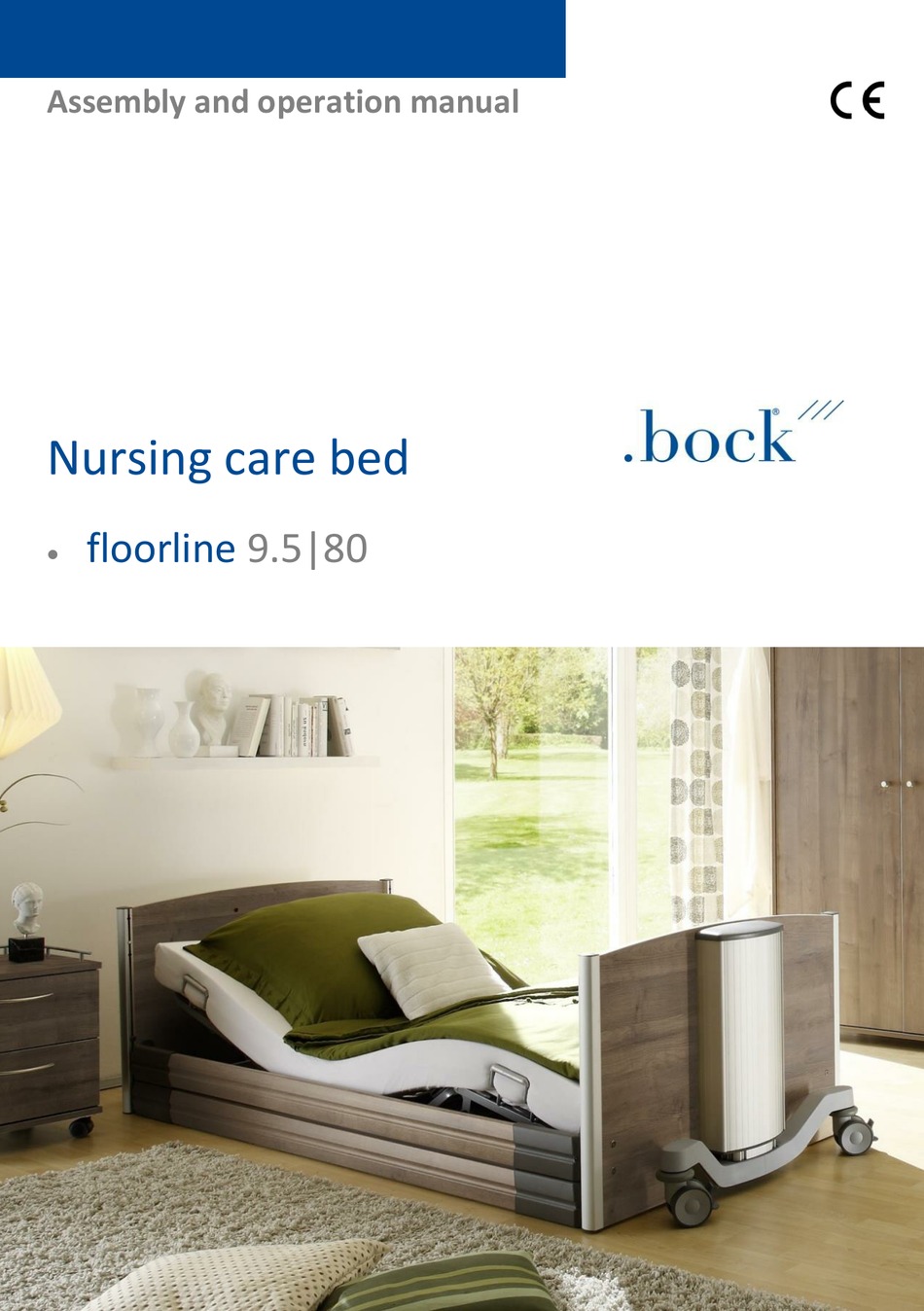

- Page 1 Assembly and operation manual Nursing care bed floorline 9.5|80 ...
- Page 2 Dear valued customer, with your decision to purchase a nursing care bed from Hermann Bock GmbH, you are receiving a long-lasting care product with superior function- ality at the highest safety level. Our electrically operated nursing care beds guarantee optimal lying comfort and allow professional care at the same time.
-
Page 3: Table Of Contents
Table of contents 1 Preface and general instructions ................. 4 Intended purpose ....................4 Definition of person groups ................5 Safety instructions ..................... 6 Service life / warranty ..................7 Requirements for the installation location ............7 Type plate ......................8 2 General description of the functions .............. -
Page 4: Preface And General Instructions
Our beds need little maintenance with proper operation and care. Each bed from Hermann Bock must pass quality testing in a final inspection before it is shipped anywhere. The beds are manufactured according to the current standards and compliant with the statutory requirements for medically used beds, and tested accordingly. -
Page 5: Definition Of Person Groups
The bed is suitable for the re-use. Please observe the instructions for cleaning, care and disinfection in these assembly and operation manual. Special attention must also be paid to the information regarding the inspections. Attention: The beds come with no special connection options for a potential equalisation. Electrical medical devices connected to the patient intravascular or intracardiac may not be used. -
Page 6: Safety Instructions
Safety instructions The intended use/operation of all moving parts is as important for the safety of the person in need of care as well as for the relatives and the caregivers/nursing staff to avoid poten- tially dangerous situations. This requires the correct installation and operation of the bed. The individual physique of the person in need of care as well as type and the extent of their disability must be taken into account by all means when operating the bed. -
Page 7: Service Life / Warranty
Requirements for the installation location The company Hermann Bock GmbH is not liable for damages which might arise from the daily usage on the floor. To avoid floor indentations, floor should correspond to the recommendations of the FEB - Fachverband der Hersteller elastischer Bodenbeläge e. -
Page 8: Type Plate
Type plate Each nursing care bed is marked with an individual and a general type plate. Individual and general type plate Model designation Manufacture date: Day, month and year Serial number: Order number - running number Mains voltage, mains frequency and power input Duty cycle Drive protection class Maximum patient weight / safe working load... - Page 9 Explanation of the symbols: Conformity mark according to the medical device regulation Symbol for observance of the user manual Within the European Union, this product must be disposed via the separated municipal waste. Product may not be dispo- sed of as household waste. Medical application part type B Use only in dry rooms Protection class II (double insulation, insulated for protection)
-
Page 10: General Description Of The Functions
Construction design and function Corrosion protection The Hermann Bock GmbH nursing care beds are developed and constructed in such a way that they can function long and safely. For this reason, all materials that may corrode are protected accordingly. All metal parts are equipped with a surface protection. The steel parts are either galvanised or stove-enamelled with a PES powder coating and the alumin- ium profiles are anodised. - Page 11 The side rail is now in a pulled- up position. Hazard note from Bock When using the telescopic (split) side rail on this nursing care beds, four adjustable feet must be screwed under the lying surface to prevent the telescopic posts of the side rail from touching the floor.
- Page 12 Fig. 1: Continuous wood side rail Fig. 2: Telescopic wooden side rail, solo post in the middle Fig. 3: Telescopic wooden side rail, double post in the middle All dimensions in mm. (*) Depending on the length of the lying surface. The single post at the head and leg end is optional. The dimension in brackets is optional.
- Page 13 91705 Hazard note from Bock Use only original Bock side rails, which are available as accessories for every nursing care beds. Use only technically flawless and non-damaged side rails with the permissible gap dimensions. Make sure that the side rails are engaged securely.
-
Page 14: Electric Parts
Electric parts The drive unit The drive unit consists of individual drives for the electrical adjustment of the back and leg rest part. The level adjustment takes place via two lifting columns that are attached to the head or foot end. The internal control box includes a switch box with a rectifier in which the input voltage is converted into a protective low voltage of max. -
Page 15: The Drives / Lifting Columns
The drives / lifting columns Hermann Bock GmbH equips nursing care beds with various drive systems from the com- pany's DewertOkin and Baumeister. Each drive consists always of four main components. – Housing – Motor – Gear - Spindle with nut The housing principle of the individual drive guarantees the permanent function of all drive components. -
Page 16: The Controller
The floorline 9.5|80 is equipped with a DewertOkin GmbH controller (Generation 1 / MCL 2 or Generation 2 / MCL 3). Alternatively, the floorline 9.5|80 can be equipped with a Smart-Care-Control (SCC) from Hermann Bock GmbH. Controller Generation 1 / MCL 2 Controller Generation 1 / MCL 2 Four drives can be connected to the controller (sockets 3,4,5 and 6). - Page 17 Controller Generation 2 / MCL 3 Controller Generation 2 / MCL 3 The connection sockets are identical to the Generation 1 controller (MCL 2) described above. The pigtail connector is located on the top of the controller. SCC Controller SCC Controller The socket 1 is a CAN-BUS connection which can also be used to connect a sensor pad for a bed-off detection.
-
Page 18: The Hand Control
Hazard note from Bock The motors meet the water protection standard IPX4. Do not squeeze/crush the cables. Adjust- ment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no liability for unauthorized technical changes. - Page 19 Function keys: Back part upwards Back part downwards Floor lighting: Push keys (1) and (2) simultaneously Lower leg part upwards Lower leg part downwards Lightening / reading lamp: Push keys (4) and (5) simultaneously Lying surface upwards Lying surface downwards (Interim stop at the 37.5 cm exit position, safety stop at 27.5 cm safety position) Reset:...
-
Page 20: Hand Control - Lock Functions
D: Release hand control keys Hazard note from Bock Make sure that the cable routing of the hand control is not routed under of one of the alumin- ium longitudinal frames. When the bed is completely lowered (low floor position), the cable could be damaged if routed underneath. -
Page 21: Rechargeable Battery (Optional As Accessory)
Operation: To control the nursing care bed with the control panel, the keys must be released by pressing the "START" key (1). Now all func- tions can be executed that you can also find on the hand control. After adjusting the nursing care bed, you can press the "STOP"... - Page 22 1000 charging cycles Self-discharge approx. 6 months Hazard note from Bock Note the idle time of the battery. This must rest for at least one hour prior to commissioning, removal and replacement of the battery. There is a danger of electric shock! Before mounting, be sure to disconnect the mains plug of the drive from the socket! Make sure that the mains plug is accessible at all times.
-
Page 23: Assembly And Operation
Hermann Frequency: Hz 50/60 Bock (SCC) max. Power consumption: A All parts and data are subject to a constant further development and may therefore differ from the mentioned data. Please note that the beds are also available in special sizes, whereas the tech- nical data may vary accordingly. -
Page 24: Floorline 9.5|80
1 back part 2 fixed seat part 3 Upper leg rest 4 Lower leg rest floorline 9.5|80 Barrier-free, independent, close to the floor: The new floorline 9.5|80 allows comfortable sleeping positions, even with a bed height of only 9.5 cm. Technology in each detail: floor- line 9.5|80 can be easily extended and adapted to fit the need of the individual patient. - Page 25 floorline 9.5|80 can be easily extended and adapted to fit the need of the individual pa- tient. It is really easy: The completely ergonomic and true bed extension is carried out in blink eye. side rails provided lengths. The result: Comprehensive comfort! floorline 9.5|80 ready for use Remove all packaging and transport brackets from the bed and place the parts of the bed on...
- Page 26 For installation of cable connections, remove some strips from the lying surface. It makes it easier to access the cable canals. Remove the cover of the (1) cable channels, which open the (2) pull reliefs and insert the connecting plug of the lifting column. Additionally, run the power cable from the end piece of the head part through the cable chan- nel and connect it to the back part of the control...
- Page 27 Standard side rail: For the installation of continuous side rails, pull the integrated bed extension a little bit to the outside (see below). Now, insert the side guard rails onto the mounting latches and screw them together. After all side guard rails are installed, slide the end piece back and tighten the screws again.
- Page 28 Align the post sideways and tighten them from below. If the telescopic side rails are retrofit, screw 4 safety feet M10 into the cross-members of the lying surface. The use of a telescopic side rail only allows a lowering of the bed to a minimum height of 15.5 cm (second safety stop).
- Page 29 Check all screw connections again before operating the bed. Hazard note from Bock When using the telescopic (split) side rail on this nursing care beds, four adjustable feet must be screwed under the lying surface to prevent the telescopic posts of the side rail from touching the floor.
-
Page 30: Bed Extension
Bed extension Remove the two wing screws (1) on the foot part and loosen the two threaded rods (2). Pull the foot end piece out, approx. 220 mm. Take the foot bracket extension (available as accessory) and remove both attached aluminium caps. -
Page 31: Emergency Lowering - Back Part
Hold the back part by all means until it is fully lowered. Hazard note from Bock Emergency lowering may be only carried out in an emergency by people who safely master this operation. Absolutely disconnect the bed from the mains as long as the motors have not been mounted... -
Page 32: Change Of Location
Change of location If the bed must be moved to another location, please follow these safety instructions: Lower the lying surface with key (8) of the hand control. Before performing a movement with the nursing care bed pull the mains plug and attach with the end piece to secure the power cable against falling and being crushed by anything. -
Page 33: Troubleshooting
Plug connector of the hand con- Check the plug-in connection on the mo- trol not fixed firmly Hand control or drive unit de- Notify the operator or Bock customer ser- fective vice Disabling function or control Disabling function or control box in the... -
Page 34: Accessories
The representative of the service hotline of Hermann Bock are looking forward to informing you about the best retrofitting solution for your bed. -
Page 35: Cleaning, Maintenance And Disinfection
Cleaning, maintenance and disinfection The individual bed elements consist of high quality materials. The surfaces of the steel tubes are covered with a durable polyester-powder coating. All surfaces of the wooden parts are surface-sealed with an ecologically coating that is low on harmful substances. All bed elements are easy to clean and cared for using wipe and spray disinfection means according to the applicable cleaning requirements with respect to the various areas of application. -
Page 36: Disinfection
Hazard note from Bock Use of abrasive cleansers and/or detergents containing grinding particles, cleaning pads or stain- less steel cleaners for the cleaning is absolutely not recommended. Neither use organic solvents such as halogenated/aromatic hydrocarbons and ketones nor detergents containing acid or al- kaline. -
Page 37: Guidance And Manufacturer's Declaration
Guidance and manufacturer's declaration Guidance and manufacturer's declaration – Electromagnetic emission The nursing bed is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Emission test Complliance Electromagnetic environment - guidance... -
Page 38: Regular Inspections With Service
The manufacturer has no influence on the operator’s adherence with respect to the observance of these regula- tions concerning electric beds. Bock facilitates the observance of the necessary precau- tionary measures to be taken by means of their time-saving services. - Page 39 For support purposes, Hermann Bock GmbH will provide you with the inspection list in the assembly and operation manual for carrying out all the necessary tests. Please copy the checklist as a form for your inspection.
- Page 40 Inspection list for Bock nursing care beds Page 1 von 2 Issuing date: 01.09.2021 / Rev.08 Model designation/year of manufacture: Serial / Inventory-No.: Manufacturer: Hermann Bock GmbH Client: Address: Location: Visual inspection / functional inspection: description General: ☐ ☐ Type plate/label present on the bed and readable? ☐...
- Page 41 Only for nursing bed dino: distance between aluminum bars less than 6 cm? ☐ ☐ Lying surface frames and lifting parts free of defects and no ruptured welding seams? Plastic end caps and mechanical fasteners (screws, bolts, etc.) complete and without ☐...
- Page 44 Please note that only our authorised personnel and our sales partners can provide training, supply of spare parts, repairs, inspections and other service. Otherwise, all warranty claims will be void. A listing of our current distributors can be found under www.bock.net/kontakt/vertriebspartner © registered trademark 890.02186 current as of: 2021-11...
