BOCK belluno Assembly And Operation Manual page 32

Special features
The combiflex offers proven and modern technology with an automatic full function for
4-fold adjustment of the lying surface for home use. If required, each possible automatic
lying surface adjustment can be individually adjusted up to the sitting position.
Thanks to its extremely low installation height, the combiflex bed-in-bed system can be
combined with almost any existing bed frame, thus offering a high degree of individuality
at any deployment location.
The combiflex nursing care bed is available with an extended hand control function to
support Trendelenburg positioning.
The combiflex becomes operational
Before you begin with the assembly, all packaging residues must be completely removed.

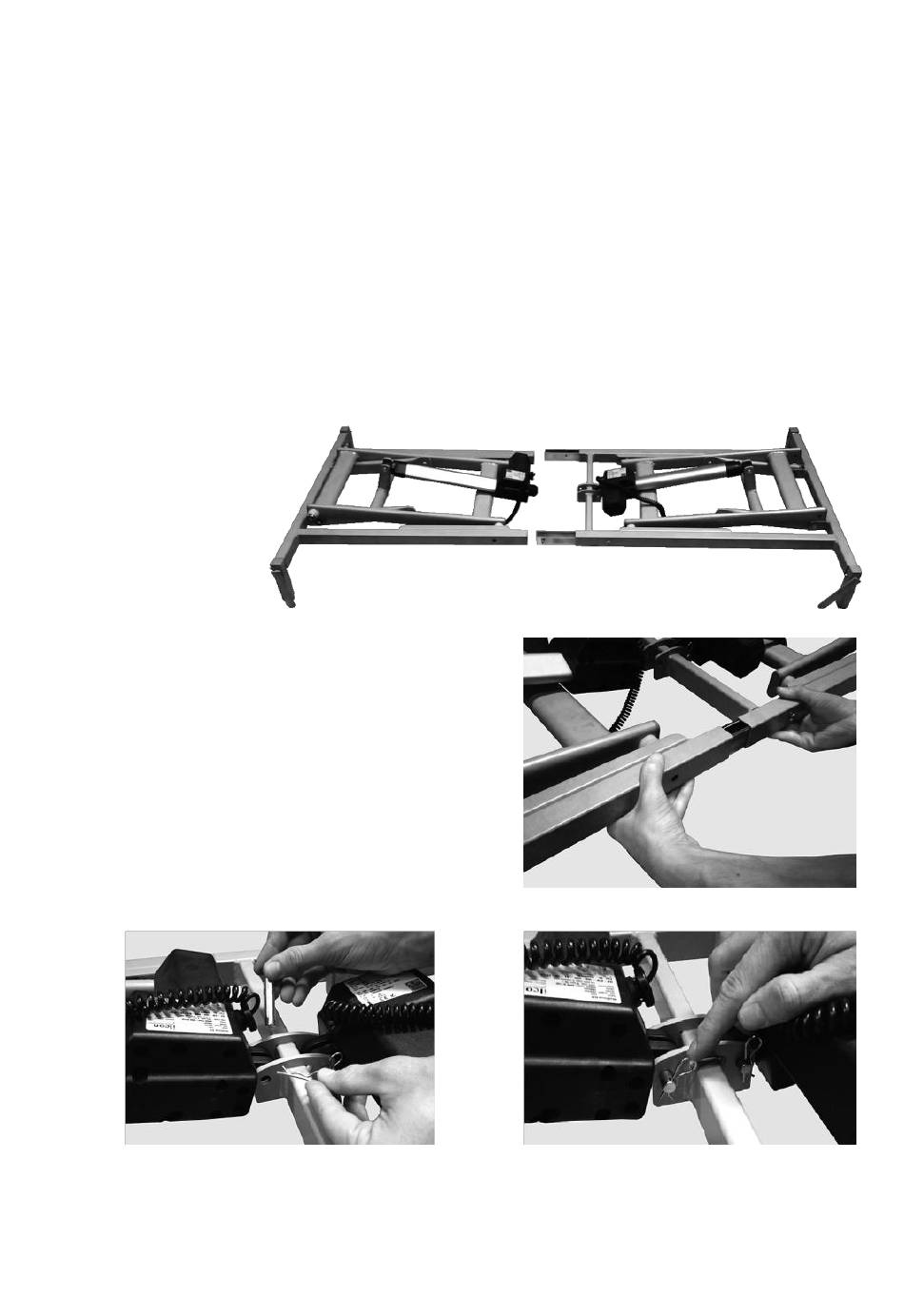

Place the two parts of the
chassis free-spaced.
Insert the two halves of the chassis into each other,
but do not push them together completely.
Latch in the lifting motor, insert bolts and secure with safety pin.
