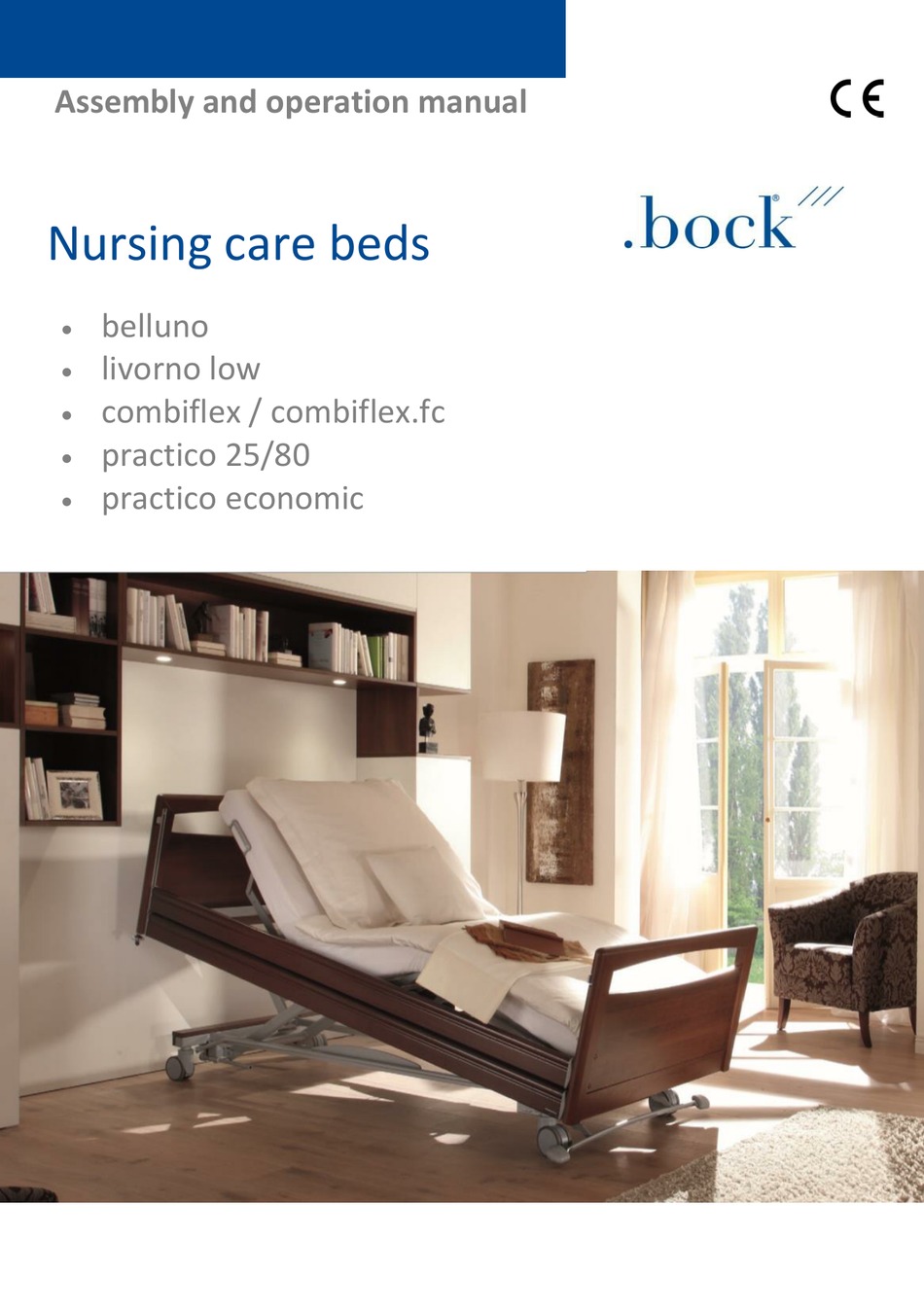

- Page 1 Assembly and operation manual Nursing care beds belluno livorno low combiflex / combiflex.fc practico 25/80 practico economic ...
- Page 2 Dear valued customer, with your decision to purchase a nursing care bed from Hermann Bock GmbH, you are receiving a long-lasting care product with superior function- ality at the highest safety level. Our electrically operated nursing care beds guarantee optimal lying comfort and allow professional care at the same time.
-
Page 3: Table Of Contents
Resetting the position after triggering the MSE ..........21 The hand control ..................... 21 4 Assembly and operation ..................24 Technical data ....................24 belluno ......................25 livorno low ....................... 28 combiflex / combiflex.fc .................. 31 practico 25/80 / practico economic ..............35 Change of location .................. -
Page 4: Preface And General Instructions
Our beds need little maintenance with proper operation and care. Each bed from Hermann Bock must pass quality testing in a final inspection before it is shipped anywhere. The beds are manufactured according to the current standards for medically used beds and tested accordingly. -
Page 5: Definition Of Person Groups
The nursing care bed is not suitable for use in hospitals. If the nursing care bed is equipped with open wheels, the nursing care bed is suitable for the transport of patients. The nurs- ing care bed is mobile with the patient resting in it. To prepare for this, lock the castors and move the lying surface to the lowest horizontal position. -
Page 6: Safety Instructions
care bed, these persons must be instructed according to the guidelines concerning the cleaning and disinfection of the nursing care bed. Safety instructions The intended use/operation of all moving parts is as important for the safety of the person in need of care as well as for the relatives and the caregivers/nursing staff to avoid poten- tially dangerous situations. -
Page 7: Service Life / Warranty
Requirements for the installation location The company Hermann Bock GmbH is not liable for damages which might arise from the daily usage on the floor. To avoid floor indentations, floor should correspond to the recommendations of the FEB - Fachverband der Hersteller elastischer Bodenbeläge e. -
Page 8: Type Plate
Type plate Each nursing care bed is marked with an individual type plate. Either there is only one sticker on your nursing care bed (Fig. 1, previous nursing care bed models) or there are two separate type plates (Fig. 2, current nursing care bed models) on your nursing care bed. - Page 9 Type plate for current nursing care bed models Model Model designation in German (DE) and English (EN) Serial number Item numbers Mains voltage, mains frequency, power input, Duty cycle (INT) Drive protection class Date of manufacture (year-month) Patient weight Safe working load Machine readable serial number Patient population Follow the instructions appropriate for mattress size and thick-...
-
Page 10: General Description Of The Functions
Construction design and function Corrosion protection The Hermann Bock GmbH nursing care beds are developed and constructed in such a way that they can function long and safely. For this reason, all materials that may corrode are protected accordingly. All metal parts are equipped with a surface protection. The steel parts are either galvanised or stove-enamelled with a PES powder coating and the alumin- ium profiles are anodised. - Page 11 The chassis The height adjustment of the beds is carried out via a base frame with single or double drive. The surface of the tubular steel structure is stove-enamelled with a PES-powder coating. The side rail Each nursing care bed can be equipped on both sides with two side rails at a special safety height.
- Page 12 Operating the telescopic divided side rails Each side rail element can be adjusted inde- pendently from the rest of the side rail parts. The re- lease buttons for adjustment are on the bottom of the telescopic post and on the top of the appropri- ate end panel of the nursing care beds, right next to the metal guides for the side guard rail bars.
- Page 13 To lower the other side as well, grasp the side rail on the side of the end panel in the gripping groove, release the release button on the end panel (Fig. 3) and slowly lower the side rail downwards. The side rail is now in the lowered position (Fig. 4). Fig.
- Page 14 The operation of the continuous side rails The release button for adjusting the continuous side rails is located at the top of the in- ner sides of the head and foot panels directly next to the metal guides for the side guard rails.
- Page 15 Fig. 1: Continuous wood / steel side protection, divided into two parts Fig. 2: Continuous wooden side rail, divided into three parts Fig. 3: Telescopic wooden side rail, double post in the middle Fig. 4: Telescopic wooden side rail, solo post in the middle...
- Page 16 Distance between the foot part and the side rail Hazard note by Bock Use only original Bock side rails, which are available as accessories for every nursing care beds. Use only technically flawless and non-damaged side rails with the permissible gap dimensions.
-
Page 17: Electric Parts
After a cooling down time of approx. one hour, the power will be automatically supplied again. Hazard note by Bock The 9-volt batteries in the controller should be checked once a year for their functionality and... -
Page 18: Caution: Electric Drive
Hazard note by Bock The motors meet the water protection standard IPX4. Do not squeeze/crush the cables. Adjust- ment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no liability for unauthorized technical changes. -
Page 19: Drives
Drives Hermann Bock GmbH equips nursing care beds with various drive systems from Limoss (drive system with external switching power supply) and ILCON (drive system with mains isolation). The double drive for step-less adjustment of lying surfaces and the linear drive as single drive for height adjustment of the lifting frames each consist of four main components. -
Page 20: The Mains Isolation From Ilcon
The external switch mode power supply The mains isolation from ILCON In addition to a high safety guarantee, the integrated ILCON mains isolation in the mains plug offers further practical advantages in use. When disconnected from the mains, the mains isolation prevents magnetic and electrical alternating fields in the bed. The mains isolation works independently of the mains and does not require an additional trans- former for its "stand-by". -
Page 21: The Ics Drive System
The ICS drive system Intelligent control systems (ICS) are capable of reliably controlling and monitoring the components and parameters of a bed. This microprocessor control can be perfectly adapted to your applications by the individual adjustment of more than 100 parameters. The ICS system automatically recognizes which system it is and uses the system-related parameters stored in advance. - Page 22 * availability depends on the model ** Comfort sitting position only moves up. All adjusted positions must be lowered separately. Hazard note by Bock Do not exceed the maximum duty cycle of 2 minutes. Observe a subsequent break of at least...
- Page 23 Hand control - lock functions The hand control comes with an integrated disabling function that can be activated and deactivated with the corresponding key. To disable the entire electrical function, insert the key in the key lock on the backside and turn the lock function on or off with a corre- sponding twist of the key.
-
Page 24: Assembly And Operation
Assembly and operation Technical data... -
Page 25: Belluno
operation. - Page 26 4 or 5-split function of the lying surface. The electrical adjustment of the back part of the lying surface is carried out via the hand control. With the 4 or 5-split lying surface, the back and leg sections are electrically operated via the hand control with automatic 3-fold adjustment.
- Page 27 The power cable must be screwed to the lug of the lying surface with the strain relief provided on the cable. Connect the mains plug. Connect the hoist motor to the lying sur- face motor. Push one end piece on one side completely. The release button must snap into the hole in the lying surface.
-
Page 28: Livorno Low
livorno low livorno low was specially designed for the requirements of daily continuous use in reha- bilitation and care facilities, as well as in the home care environment. They offer frail peo- ple, patients in need of care and people with disabilities a particularly homely environ- ment, comfortable conditions and at the same time support optimal care. - Page 29 Special features livorno low has mature technology and can be integrated particularly well into existing living areas thanks to the selection of decorative elements. The lying surface is optionally available with a 4 or 5-split function. On the lying surface, the back and leg sections are electrically operated via the hand control, whereby the leg section is equipped with auto- matic 3-fold adjustment.
- Page 30 Mount the side panels to the longitudinal frames us- ing the screws provided.
-
Page 31: Combiflex / Combiflex.fc
combiflex / combiflex.fc combiflex and combiflex.fc have been specially designed to meet the requirements of care at home and in rehabilitation and care facilities. They offer frail people, patients in need of care and people with disabilities the opportunity to support an optimal care in their familiar surroundings. - Page 32 Special features The combiflex offers proven and modern technology with an automatic full function for 4-fold adjustment of the lying surface for home use. If required, each possible automatic lying surface adjustment can be individually adjusted up to the sitting position. Thanks to its extremely low installation height, the combiflex bed-in-bed system can be combined with almost any existing bed frame, thus offering a high degree of individuality at any deployment location.
- Page 33 Push the halves of the chassis together completely and screw them together tightly. Push the two halves of the lying surface together and tighten with the screws provided. Attach the box motor to the lifting parts of the lying surface. The box motor is fixed with the locking sliders on both sides.
- Page 34 Then fasten with the supplied bolts and secure with the locking plate. The power cable must be screwed to the lug of the lying surface with the strain relief provided on the cable. Insert the plugs on the cable end of the hoist motors of the chassis into the matching sockets on the box motor.
-
Page 35: Practico 25/80 / Practico Economic
practico 25/80 / practico economic practico 25/80 and practico economic were specially designed for the requirements of the daily continuous use in inpatient and home care. They offer frail people, patients in need of care and people with disabilities comfortable conditions and support optimal care. practico 25/80 and practico economic are not suitable for hospital use If the practico models are equipped with open castors, the nursing care beds are suitable for transporting patients. - Page 36 used. The operator of the medical products has to ensure that the combination of the equipment meets the requirements of EN 60601-1. Special features The sophisticated lifting technology below the lying surface lends these beds their elegant silhouette. It offers the entire spectrum of technical comfort. If required, every possible automatic lying surface adjustment can be individually adjusted up to the seating comfort position.
- Page 37 Assembly of the continuous side guard rails Push one end piece completely on the head side and screw tight. Push the second end piece only up to directly in front of the bore hole. Then hook the side rails into the pre-assembled metal guides and arrange them. Abso- lutely MAKE SURE to read the labels attached on the top and bottom of the side rails so these may not be mixed up with each other.
- Page 38 The power cable must be routed outside the bed and the hand control must be exposed. Bed extension (models belluno, combiflex, combiflex.fc and practico economic) The delivery for a lying surface extension consists of...
- Page 39 Proceed as follows to install the unit: 1. Remove the mattress from lying surface. 2. Remove the foot end piece. 3. Insert the adapter pieces at the foot end into the lying surface frame and screw them together. 4. Place the wire bracket on the foot part, drill holes (d = 4.2 mm) and screw them together.
-
Page 40: Change Of Location
Change of location If the bed must be moved to another location, please follow these safety instructions: – Bring the lying surface to the lowest position. – Before proceeding, pull out the mains plug and attach with the suspension device at the side rail, to secure the power cable against falling and being crushed through over-travel. -
Page 41: Disposal
Disposal Each of the components made of plastic, metal and wood are recyclable and can be dis- posed/recycled in compliance with the relevant legal provisions. Please note that electric adjustable nursing care beds or nursing beds are considered commercially used electronic scrap according to the WEEE-EC directive 2012/19/EC (b2b). -
Page 42: Troubleshooting
No voltage in the socket Plug connector of the hand control not Check the plug-in connection fixed firmly on the motor Notify the operator or Bock Hand control or drive unit defective customer service Activate the mains isolation by Mains isolation not activated... -
Page 43: Accessories
For body heights up from 180 cm, Hermann Bock GmbH recommends the use of a bed extension that allows an extension of the lying surface to a length of up to 220 cm. This enables even tall people to lie comfort- ably while maintaining the same level of functionality. -
Page 44: Mounting Accessories
Important note: The Bock side rail height increase is designed for use with all Bock wood side rail vari- ants. Hermann Bock GmbH does not accept any liability for the use of these products on other makes! Lifting pole with triangle handle, 6.5 kg... - Page 45 The handle can be infinitely adjusted within a range of 350mm. This allows an adjust- ment range between triangle handle and mattress of at least 550mm to 850mm, de- pending on the mattress thickness. The total height of the nursing care bed increases by 1300 mm when using a lifting pole.
-
Page 46: Mattresses
Hazard note by Bock For safety reasons use only original Bock accessories when furnishing your nursing care bed fur- ther. Those accessories must be approved by Hermann Bock for the respective bed model. A detailed overview of the accessories and extras for your bed can be found on a separate data sheet. -
Page 47: Cleaning, Maintenance And Disinfection
Cleaning, maintenance and disinfection The individual bed elements consist of high quality materials. The surfaces of the steel tubes is covered with a durable polyester-powder coating. All surfaces of the wooden parts are surface-sealed with an ecologically coating that is low on harmful substances. All bed elements are easy to clean and cared for using wipe and spray disinfection means according to the applicable cleaning requirements with respect to the various areas of application. -
Page 48: Disinfection
Hazard note by Bock Use of abrasive cleansers and/or detergents containing grinding particles, cleaning pads or stain- less steel cleaners for the cleaning is absolutely not recommended. Neither use organic solvents such as halogenated/aromatic hydrocarbons and ketones nor detergents containing acid or al- kaline. -
Page 49: Guidance And Manufacturer's Declaration
Guidance and manufacturer's declaration Guidance and manufacturer's declaration – Electromagnetic emission The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Emission test Complliance Electromagnetic environment - guidance... - Page 50 – Electromagnetic immunity The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications...
-
Page 51: Regular Inspections With Service
For support purposes, Hermann Bock GmbH will provide you with the inspection list in the assembly and operation manual for carrying out all the necessary tests. Please copy the checklist as a form for your inspection. - Page 52 Inspection list for Bock nursing care beds Page 1 of 2 Issuing date: 09.10.2018 Model designation Serial / Inventory-No.: Year of manufacture: Manufacturer: Hermann Bock GmbH Visual inspection: Description Remark General: ☐ ☐ Type plate/sticker present on bed and legible? ☐...
- Page 53 Electric components: Testing of hand control (keys and disabling function) all working properly ☐ ☐ without any defects? Battery/Bock battery/emergency lowering: Function properly and without any de- ☐ ☐ fects? General: Function of the accessories flawless and safe? (e.g. lifting pole incl. grab han- ☐...
- Page 56 Please note that only our authorised personnel and our sales partners can provide training, supply of spare parts, repairs, inspections and other service. Otherwise, all warranty claims will be void. A listing of our current distributors can be found under www.bock.net/contact/distribution-partners © registered trademark 890.02024 as of: 2018-09...
