Operating the telescopic divided side rails
Each side rail element can be adjusted inde-
pendently from the rest of the side rail parts. The re-
lease buttons for adjustment are on the bottom of
the telescopic post and on the top of the appropri-
ate end panel of the nursing care beds, right next to
the metal guides for the side guard rail bars.

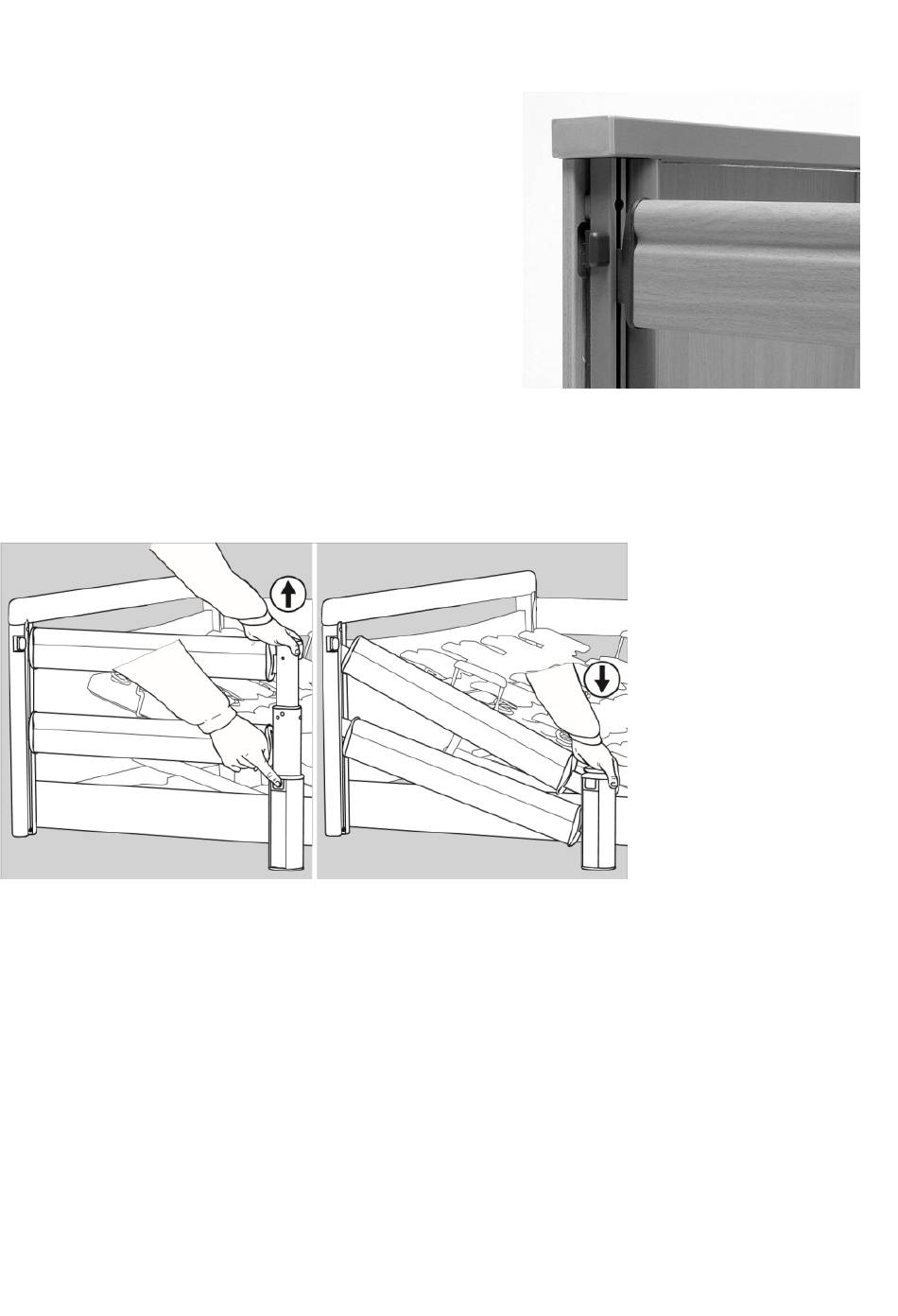

To lower a side rail element, grasp the upper knob
of the centre post with one hand, lift it slightly and press the release button on the centre
post inwards with the other hand (Fig. 1). The side rail opens at the corresponding place
and can be easily lowered downwards as far as it will go. The side rail is now positioned
diagonally (Fig. 2).
Fig. 1 Fig. 2
