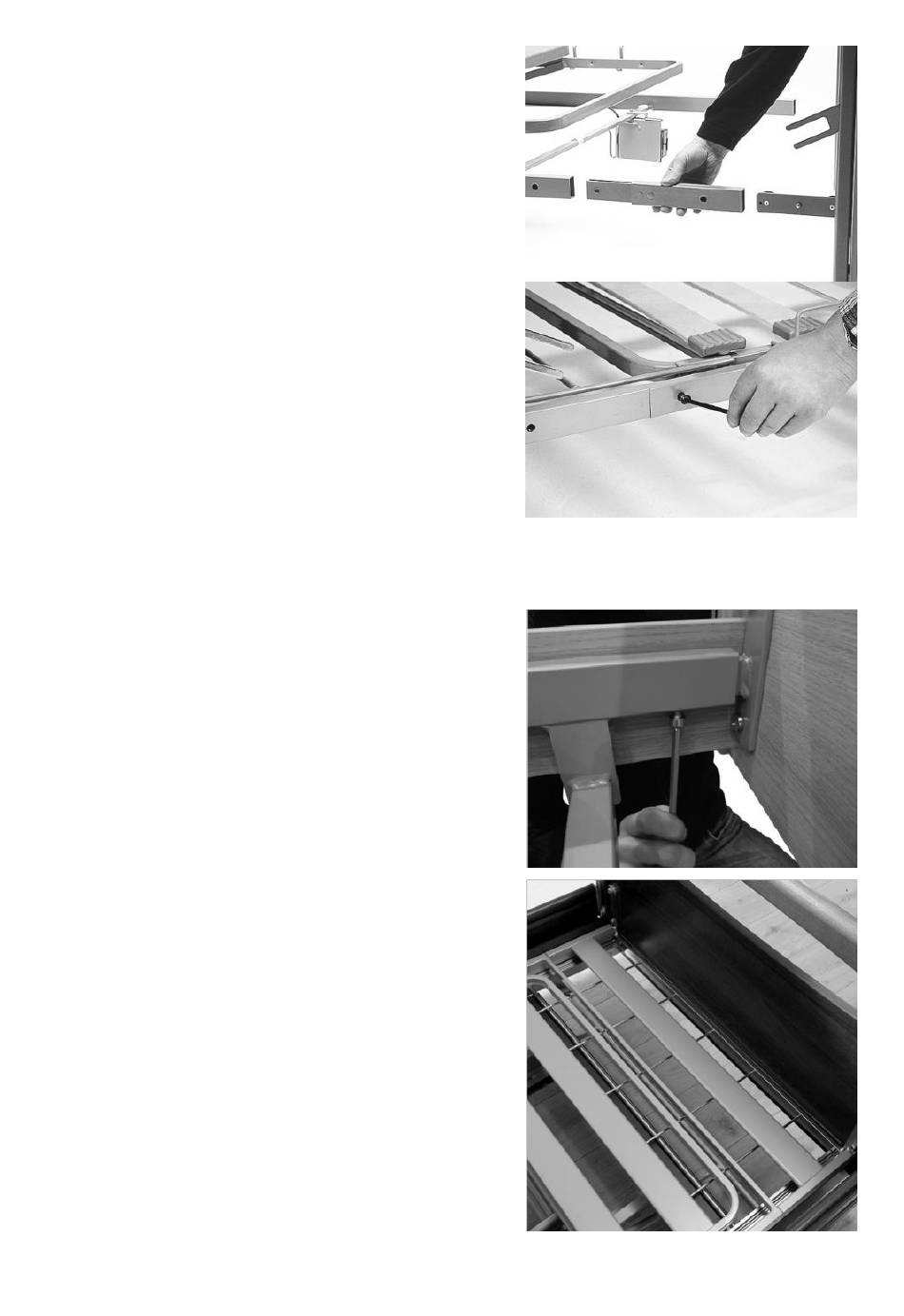

Proceed as follows to install the unit:
1. Remove the mattress from lying surface.
2. Remove the foot end piece.
3. Insert the adapter pieces at the foot end into the
lying surface frame and screw them together.
4. Place the wire bracket on the foot part, drill holes
(d = 4.2 mm) and screw them together.
5. Slide the foot end piece flush with the threaded
hole to the lying surface frame.
6. IMPORTANT: Make sure to read the labels at-
tached on the top and bottom of the side rails so
these may not be confused with each other.
7. Then hook the side rails into the pre-assembled
metal guides and arrange them.
8. Finally push on the end pieces completely and
screw them tightly.
Bed extension (models practico 25/80 and livorno low)
The delivery for a lying surface extension consists of
the following parts:
- 1 locking element for the lying surface incl.
side panel extension
- 1 set of longer side rails
Proceed as follows to install the unit:
1. Remove the mattress from lying surface.
2. Loosen the screw connection of the foot end piece
and pull out the extension, removing the side rails.
3. Insert and screw the locking element for the lying
surface incl. panels.
4. Install the side rails.
5. Push the foot end piece flush in front of the side
panels and screw it in place.
