Attention: The bed has no special connection options for a potential equalisation. Electri-
cal medical devices connected to the patient intravascular or intracardiac may not be
used. The operator of the medical products has to ensure that the combination of the
equipment meets the requirements of EN 60601-1.
Special features
belluno offers modern, reliable technology with an easy operation in various function var-
iants. belluno is available with a 4 or 5-split function of the lying surface. The electrical
adjustment of the back part of the lying surface is carried out via the hand control. With
the 4 or 5-split lying surface, the back and leg sections are electrically operated via the
hand control with automatic 3-fold adjustment.
belluno becomes operational

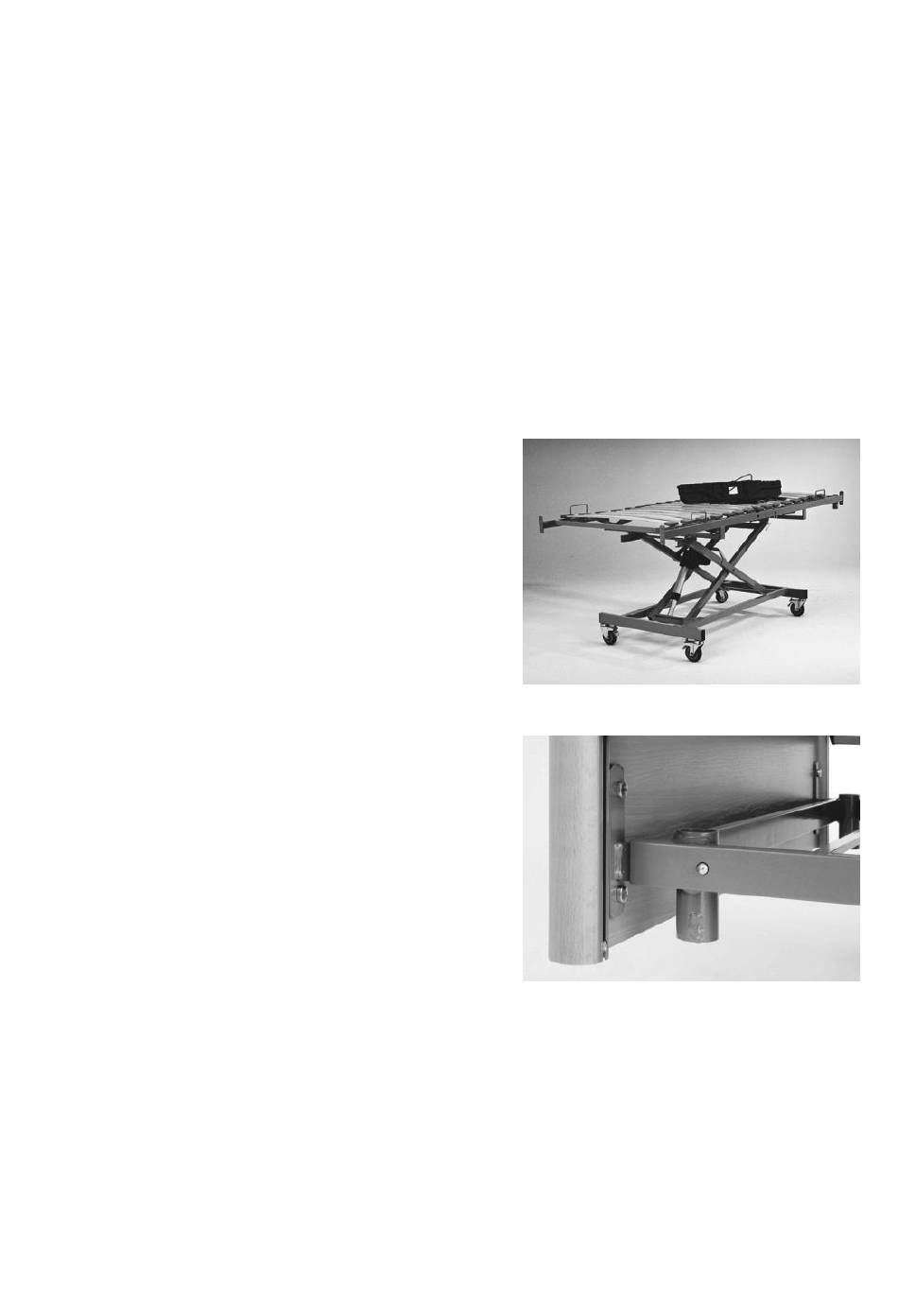

Before you begin with the assembly, all packaging
residues must be completely removed. Place the
chassis with scissor component free-standing and
lock the castors.
When assembling the divided lying surface, first
move the scissor component to knee height using
the box motor. Then place the head-side lying sur-
face element on the ball bearings and then fasten
the foot-side lying surface element using the split
pins. Secure the split pins against unintentional loos-
ening with the cotter pin. Push the two lying surface
elements together, and tighten them on both sides
with the included Allen key using the previously re-
moved screws. Latch in and close the motor accord-
ing to the markings (head/foot side).
When mounting the undivided lying surface, the ball bearings in the upper area of the
scissor component must be inserted into the U-profile at the lower end of the lying surface
which is provided for this purpose. Remove the spring cotter pins from the chassis. Lock
the lying surface between the two brackets with the previously removed split pin. Secure
the split pins against unintentional loosening with the cotter pin.
